Chapter 5 Reference
5-1 Attaching an Arm (Option)
The stand can be removed and replaced with an arm (or another stand) to be
attached to the monitor. Use an arm or stand of EIZO option.

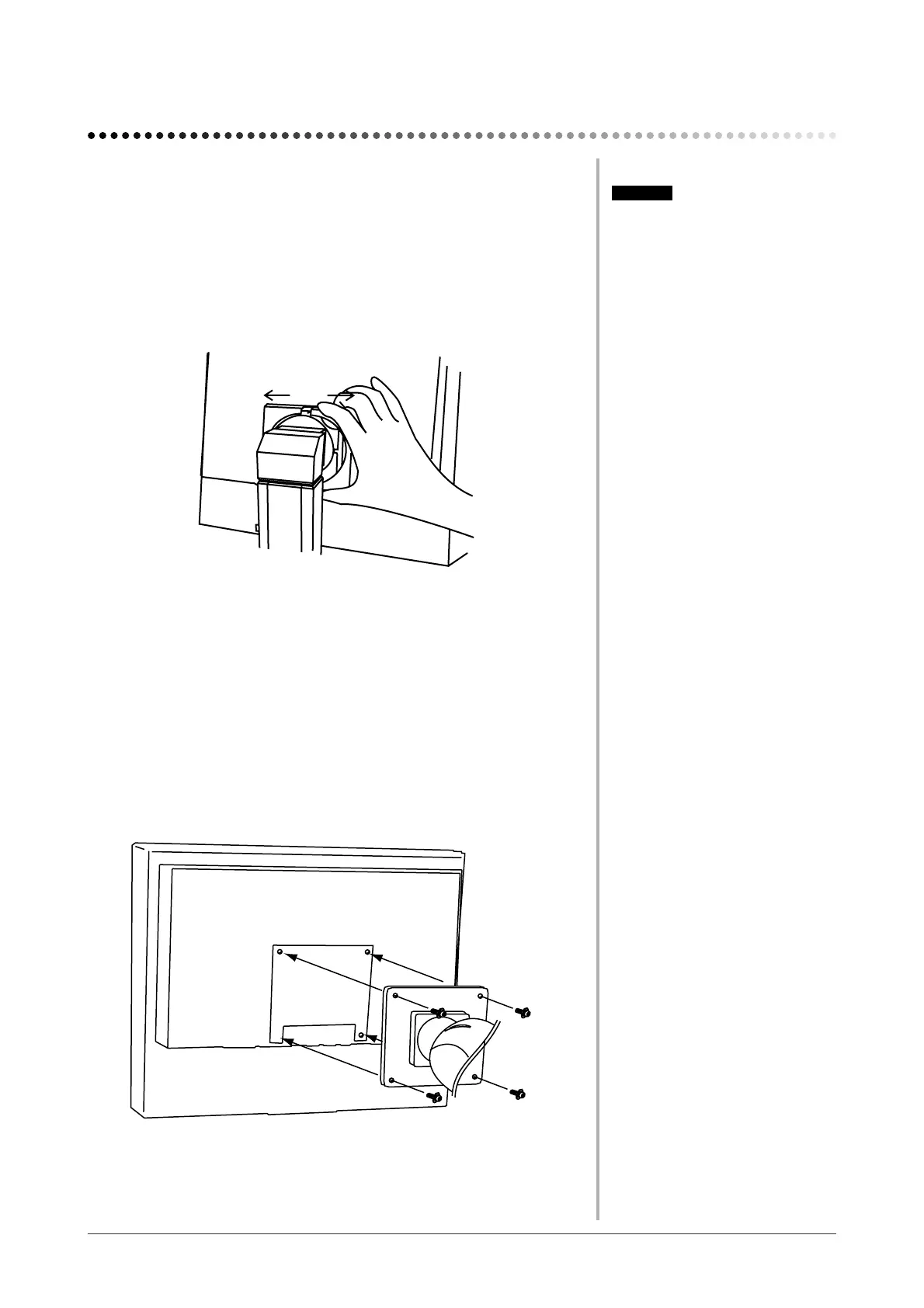

[Attaching]
1
Hold the upper and lower centers of the stand joint cover, and
slide sideways to remove it.
2
Lay the LCD monitor on a soft cloth spread over on a stable
surface with the panel surface facing down.
3
Remove the stand. (Prepare a screwdriver.)
Unscrew the two screws (M4 × 10mm) securing the unit and the stand
with the screwdriver.
4
Attach the monitor to the arm or stand.
Secure the stand to the monitor with four screws (M4 × 12mm) using a
screwdriver.
Fixing screws: M4 × 12mm 4 pcs
Attention
• When using another manufacturer’s
arm or stand, confi rm the following in
advance.
• Clearance between the holes of the
arm fi xing screws: 100 mm × 100
mm (VESA compliant)
• Strong enough to support weight of
the monitor unit (except the stand)
and attachments such as cables
• Connect the cables after attaching an
arm.
Chapter 5 Reference
