ACOM516 User Manual
Shenzhen Ejoin Technology Co.,Ltd. 5
Chapter Equipment Installation
2.1 SIM Card Placement

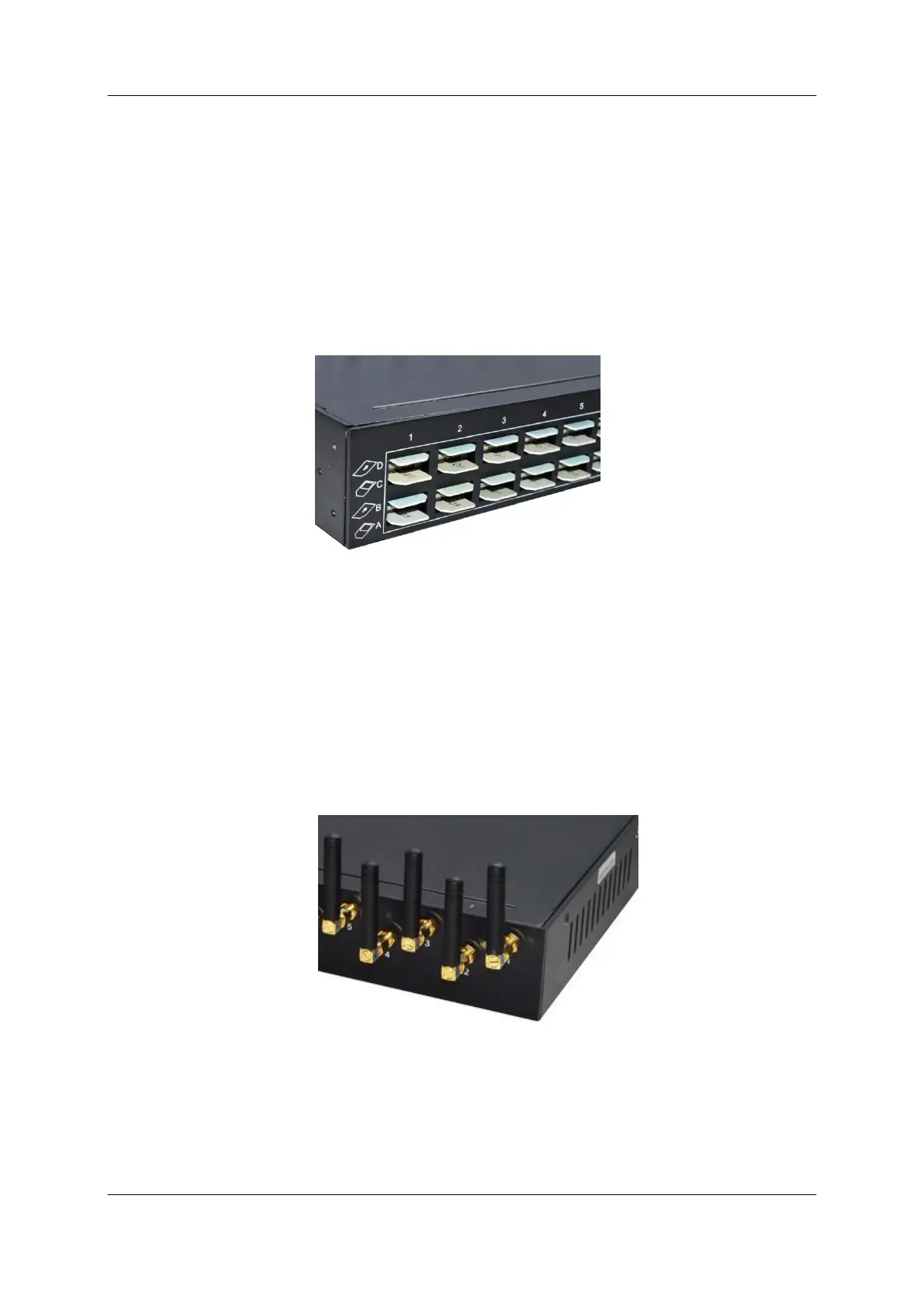

Insert SIM cards like the figure 2.1-1. The SIM cards should be mini-SIM
(2FF).
Figure 2.1-1 SIM Card Placement
2.2 Antenna Installation
The external antenna should be installed vertically always on a site with a
good wireless signal. It is strongly recommend that you choose the long antenna.
Figure 2.2-1 Antenna Installation
