STEP 2

OPTION ADDING SSD DISC

If you want to mount additional SSD disc, you can by rotating an

antenna mount before mounting an antennas.

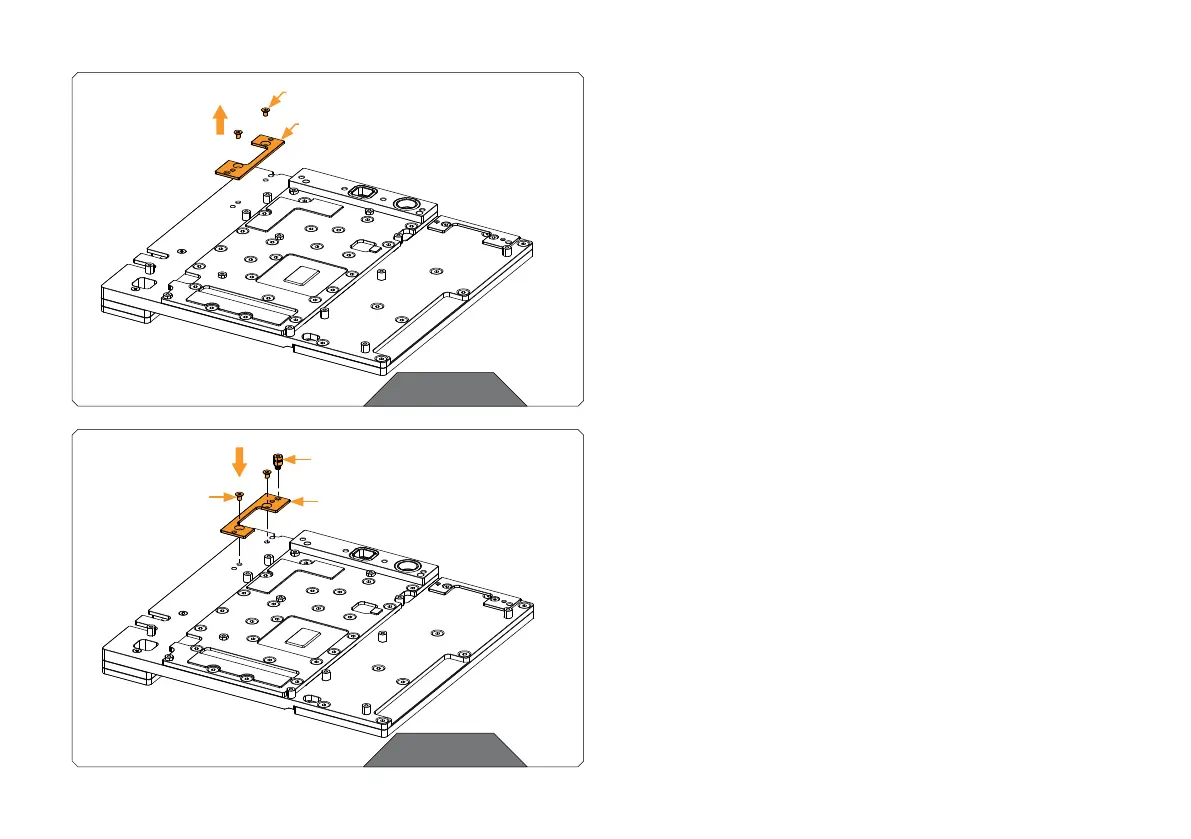

STEP 2a

Unscrew (2) M3 x 5 DIN7991 screws and remove Wi-ﬁ antenna

holder.

STEP 2b

Rotate Wi-fi antenna holder by 180° and screw it back with (2)

M3 x 5 DIN7991 screws. Also screw Standoff M4 – M2.5 x 7.4 mm

into threaded hole

STEP 2c

To mount the antennas, follow Step 1 - PLACING WI-FI AND

BLUETOOTH ANTENNAS

STEP 2b

STEP 2a

M3 x 5 DIN7991 SCREW

M3 x 5 DIN7991

SCREW

WI-FI ANTENNA HOLDER

STANDOFF M4 – M2.5 x 7.4 mm
