EK QuantumX - Cutting and Placing Thermal Pads (Monoblock Side)

- 14 -
STEP 3
STEP 3
CUTTING AND PLACING THERMAL PADS MONOBLOCK
SIDE

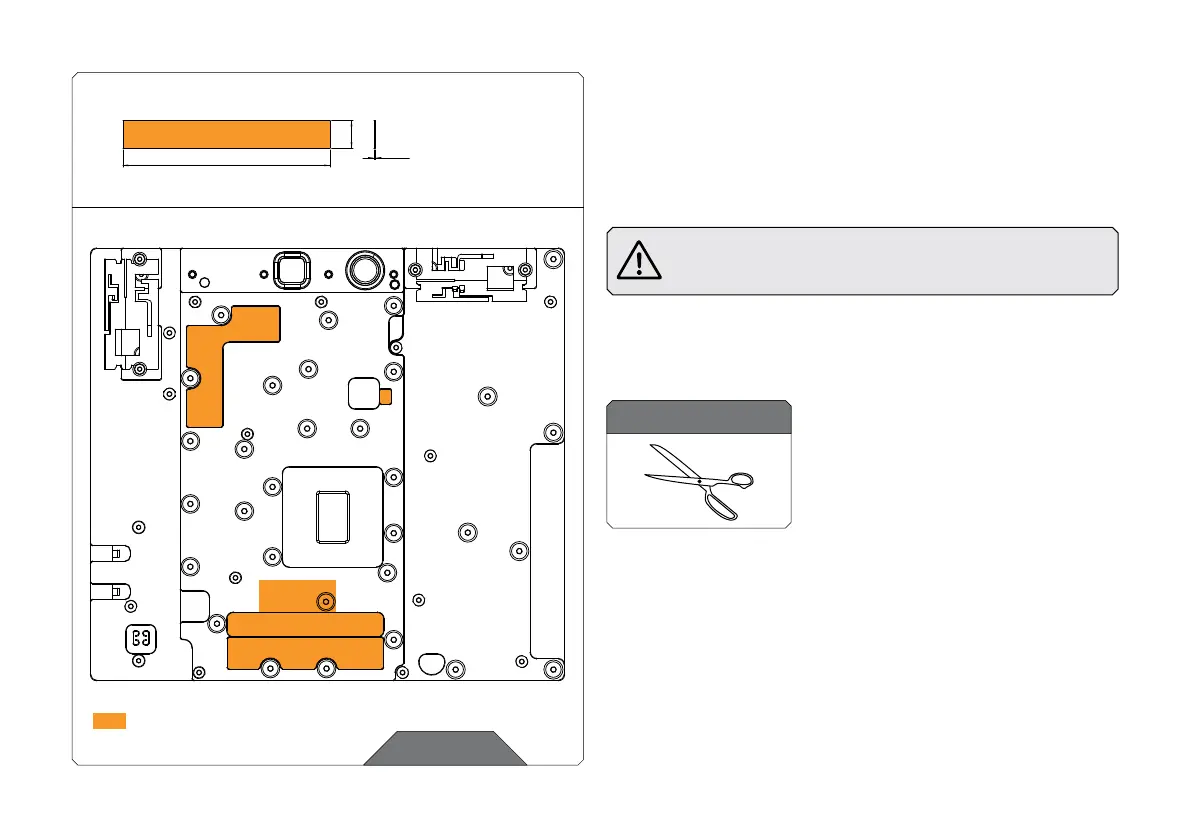

After attaching the antennas, thermal pads must be placed in the
places marked in the picture. EK made sure to provide you with more
than an adequate quantity of Thermal Pads to complete this Step.
CAUTION: You must remove the protective foil from both
sides of the thermal pad before installation.
Required thermal pads:
Thermal PAD F 1mm - (120 x 16 mm) EAN: 3830046996732
For this step, you will need:
Scissors
Thermal Pad F – 1.0 mm (120 x 16 mm)
120 mm
16 mm
1 mm
Thermal Pad - 120 x 16 x 1.0 mm
F1
