The EK-QuantumX CoolingStation Monoblock for PS5 is a specialized liquid cooling solution designed to enhance the performance and longevity of the PlayStation 5 console by replacing its stock cooling system with a high-efficiency water block. This product is intended for installation by adequately trained and experienced individuals, as improper installation can void the PS5's Sony warranty and EK's liability for damages.

Function Description

The primary function of the EK-QuantumX CoolingStation Monoblock is to provide superior thermal management for the PS5's critical components, including the CPU and GPU. By integrating a full-cover monoblock, it directly cools these heat-generating parts, allowing for more stable operation, potentially higher performance, and reduced noise compared to the original air cooling. The monoblock also incorporates a D-RGB LED strip for customizable lighting effects, adding an aesthetic dimension to the cooling solution. The design allows for the integration of an optional SSD disc, providing flexibility for storage expansion.

Important Technical Specifications

Dimensions (L x H x W): 232.85 x 212.5 x 40.15 mm
D-RGB LED Count: 24
D-RGB Cable Length: 500 mm
D-RGB Connector Standard: 3-pin (+5V, Data, Blocked, Ground)
Material: The coldplate is made of nickel-plated copper (Ni), while the top plate is plexi. Other components include a black E. front cover, PC white side cover, and acetal Wi-Fi antenna holders.
Mounting Mechanism EAN: 106985
Product Warranty Period: 24 months

Box Contents:

The package includes all necessary components for installation:

M2.5 x 5 AX1 Screws (6 pcs)
Standoff M2.5-M3 x 6.6mm (9 pcs)
Standoff M4-M2.5 x 7.4mm (1 pc)
M3 x 6 DIN 7984 Screws (4 pcs)
Thermal Grease (1 pc)
M3 x 4 DIN 7984 Screws (4 pcs)
PVC Washer M3 (9 pcs)
M3 x 8 DIN 7984 Screws (9 pcs)
Allen Key 2.5 mm (1 pc)
Allen Key 2 mm (1 pc)
EK-Plug Out Spludger Tool (1 pc)
Thermal Pad F 1.0 mm (6 pcs)
Thermal Pad F 2.0 mm (1 pc)

Water Block Parts:

Coldplate (Ni): 1 pc (EAN: 106864 for backplate, 106862 for monoblock)
Metal plate - backplate: 1 pc (EAN: 106870)
Screw M3 x 6 DIN7991: 28 pcs (EAN: 8472)
OR - QuantumX PS5 2-2: 1 pc (EAN: 106987)
Top plate - plexi: 1 pc (EAN: 106874)
Front Cover (Black E.): 1 pc (EAN: 106867)
Side Cover (PC White): 1 pc (EAN: 106869)
Jet plate: 1 pc (EAN: 103305)
PCB -Power adapter: 1 pc (EAN: 106938)
PA housing bottom (Black E.): 1 pc (EAN: 106945)
PA housing top (Black E.): 1 pc (EAN: 106943)
Screw M4 x 10 DIN7991: 28 pcs (EAN: 8205)
Standoff M4/M2.5 x 2.5 mm: 5 pcs (EAN: 8533)
Screw M4 x 8 DIN7991: 8 pcs (EAN: 9044)
Standoff M4/M2.5 x 6.60 mm: 9 pcs (EAN: 8541)
Screw M3 x 20 DIN7991: 2 pcs (EAN: 8204)
Wifi antenna holder (Acetal): 2 pcs (EAN: 106873)
Screw M3 x 5 DIN7991: 4 pcs (EAN: 8211)
OR - QuantumX PS5 1-2: 1 pc (EAN: 106986)
OR - 15 x 1.5 mm: 1 pc (EAN: 5001)
EK - Badge: 1 pc (EAN: 100663)

Usage Features

PS5 Teardown: The installation process begins with carefully disassembling the PS5, including removing the stock cooler, power supply, and Wi-Fi/Bluetooth antennas. Users are advised to refer to a video guide for this step.
PCB Preparation: The liquid metal from the CPU heat spreader must be cleaned, taking care not to damage the protective foam around the CPU.
Monoblock Preparation: This involves removing the backplate from the monoblock and carefully placing thermal pads on designated areas. Thermal grease is applied to the GPU heat spreader (IHS) in a thin, even layer.
Antenna Placement: Wi-Fi and Bluetooth antennas are reused from the original PS5 casing and placed into designated holders on the monoblock. The design allows for rotating an antenna mount to accommodate an additional SSD disc.
PCB Installation: The PS5 PCB is carefully positioned onto the monoblock, ensuring alignment with standoffs and the power connector. Screws and standoffs are then used to secure the PCB.
Antenna Connection: The Bluetooth and Wi-Fi antennas are connected to the PS5 PCB, with specific connectors for each antenna.
Backplate Installation: Additional thermal pads are placed on the PS5 PCB, and the backplate is then attached and secured with screws.
PC Case Integration: The EK-QuantumX CoolingStation Monoblock for PS5 is designed to be mounted into a PC case, offering multiple mounting positions (e.g., top or bottom ATX holes). The mounting plate must be secured to the PC case using factory screws before placing the monoblock.
Fittings and Tubing: Two G1/4 threaded male fittings are screwed into the monoblock, and liquid cooling tubes are connected to integrate the monoblock into the cooling loop.
D-RGB LED Strip Connection: The 3-pin connector of the D-RGB LED light is plugged into the D-RGB HEADER on the motherboard, ensuring correct pin layout (+5V, Digital, Empty, Ground) to prevent damage.
Leak Testing: A mandatory 24-hour leak test is recommended after installation to ensure the integrity of the cooling loop.

Maintenance Features

Corrosion-Inhibiting Coolants: The use of corrosion-inhibiting coolants, such as EK-CryoFuel, is mandatory for nickel-plated water blocks to prevent corrosion, scale, and biological growth. Pure distilled water is not recommended.
Air Bleeding: To achieve optimal performance, it is crucial to thoroughly bleed air out of the water block.
Dust Removal: Regular dust cleaning (every 2-3 months) using a vacuum cleaner or compressed air is essential, especially for the radiator. The computer should be turned off and unplugged during cleaning.
Electrical Component Check: An annual check of the pump and fans is recommended to ensure silent operation and proper reaction to PWM duty cycle changes.
Unit Cleaning: The entire unit should be thoroughly cleaned annually. This involves draining the coolant, flushing the radiator, and checking/cleaning the pump. Changing the tubing is also recommended.
Nickel-Plated Copper Cleaning: For cleaning nickel-plated copper, only warm water and a wet non-abrasive cloth should be used. Aggressive chemicals or rough materials are forbidden as they can damage the plating. Hardened deposits can be polished with automotive soft non-abrasive metal polish cremes, followed by rinsing with distilled water.
Genuine Parts: It is recommended to use only genuine EK Water Blocks liquid cooling gear and add-ons to maintain performance, compatibility, and warranty.

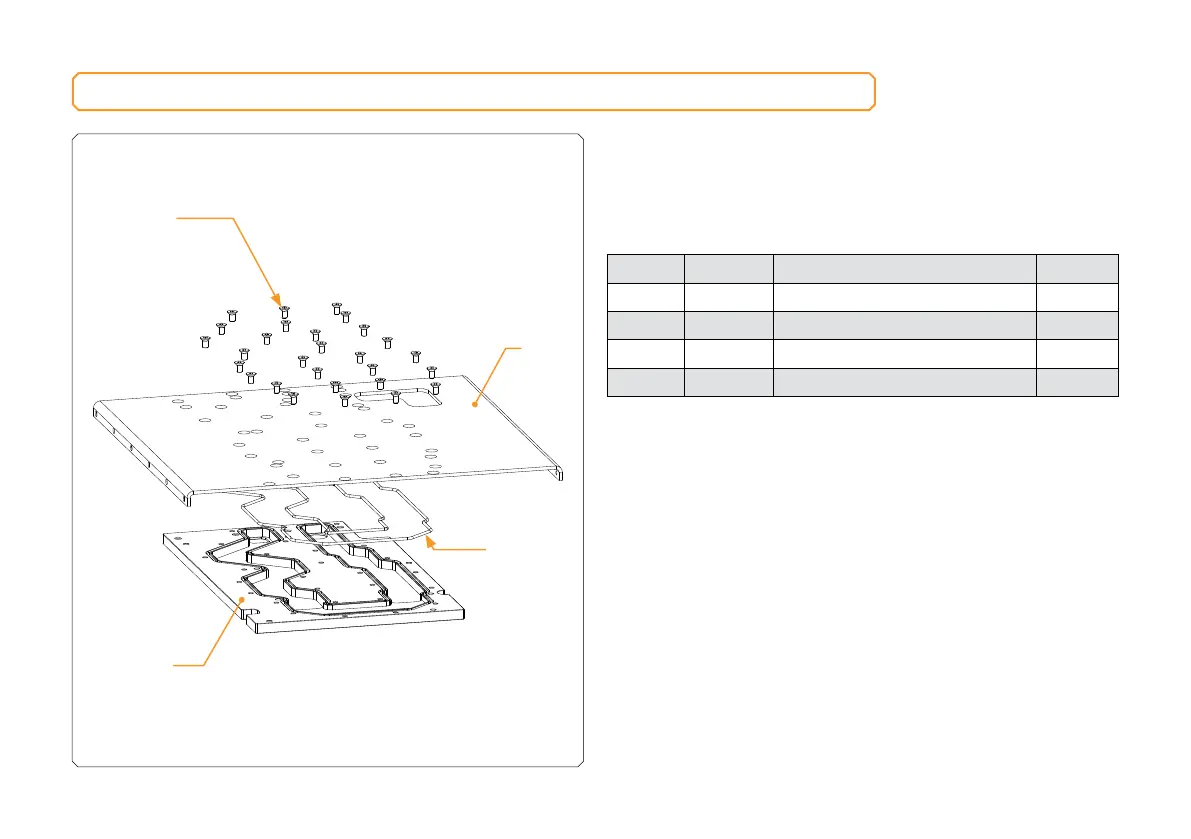

EK QuantumX - Technical Specifications and Water Block Parts; Backplate
