2 Panels Description

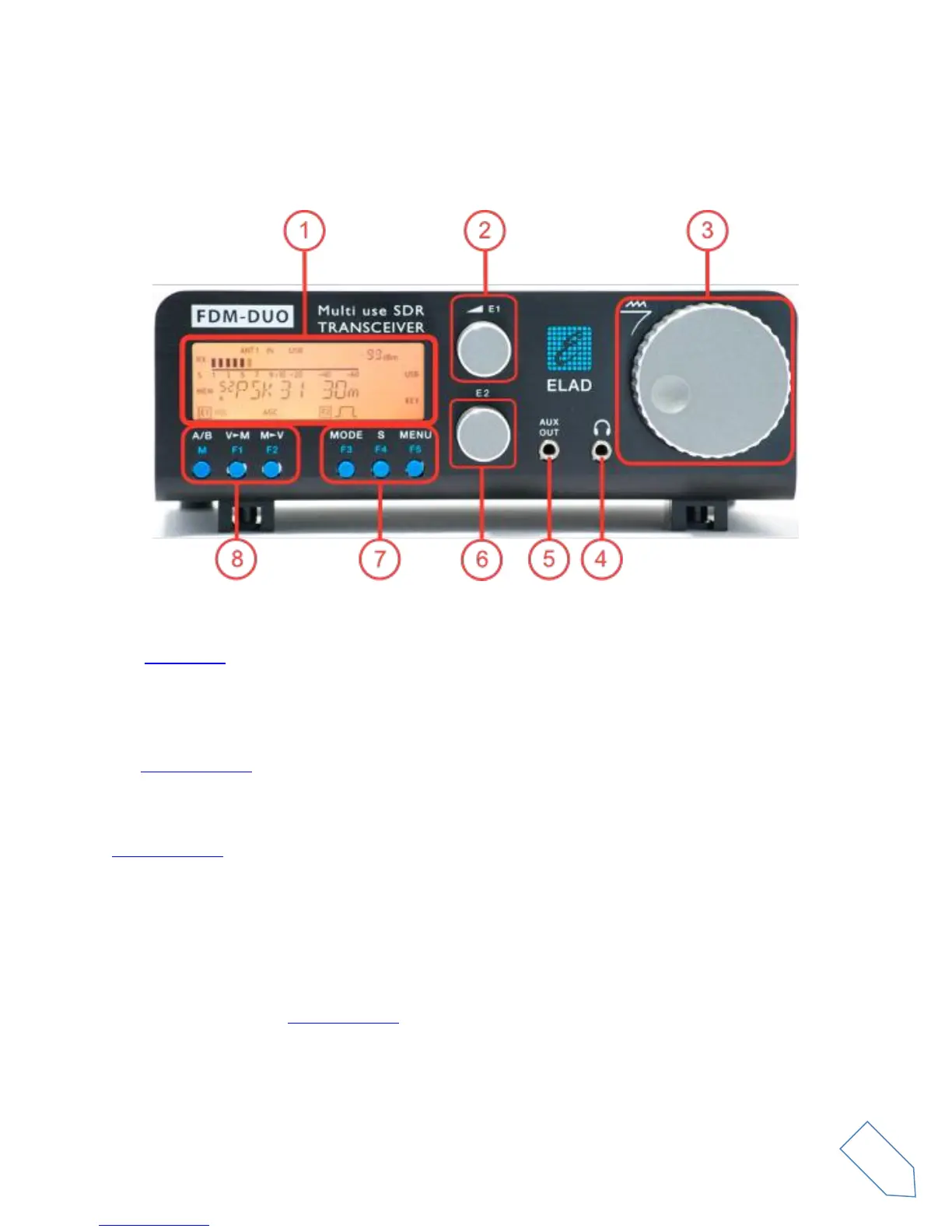

2.1 Front Panel Description
1 - LCD Display
See LCD Display.
2 - E1 Knob
Available functions : settings of audio volume, squelch for FM, microphone gain (MIC) while
transmitting, reception gain control (AGC), noise reduction (NR), noise blanker (NB) and auto notch (AN).
See Knobs functions for more information about knobs use.
3 - Main Knob
Available functions : VFO tuning, memory selection in MEM mode, step selection in VFO mode. See
Knobs functions for more information about knobs use.
4 - Main audio output for speakers and headphones
5 - Auxiliary audio output
6 - E2 Knob
Available functions : settings of reception filters, transmission power (PWR) while transmitting, CW pitch
value, and RIT value. See Knobs functions for more information about knobs use.
