8.1.2 TX firmware update
First of all, download the latest version of the TX firmware. Unzip the archive and copy the file
“fdmduotx.bin” in the USB flash drive provided with the FDM-DUO. If the file already exists, replace it.
The file “fdmduotx.bin” must be in the root of the USB flash drive. For example : “E:\fdmduotx.bin”.

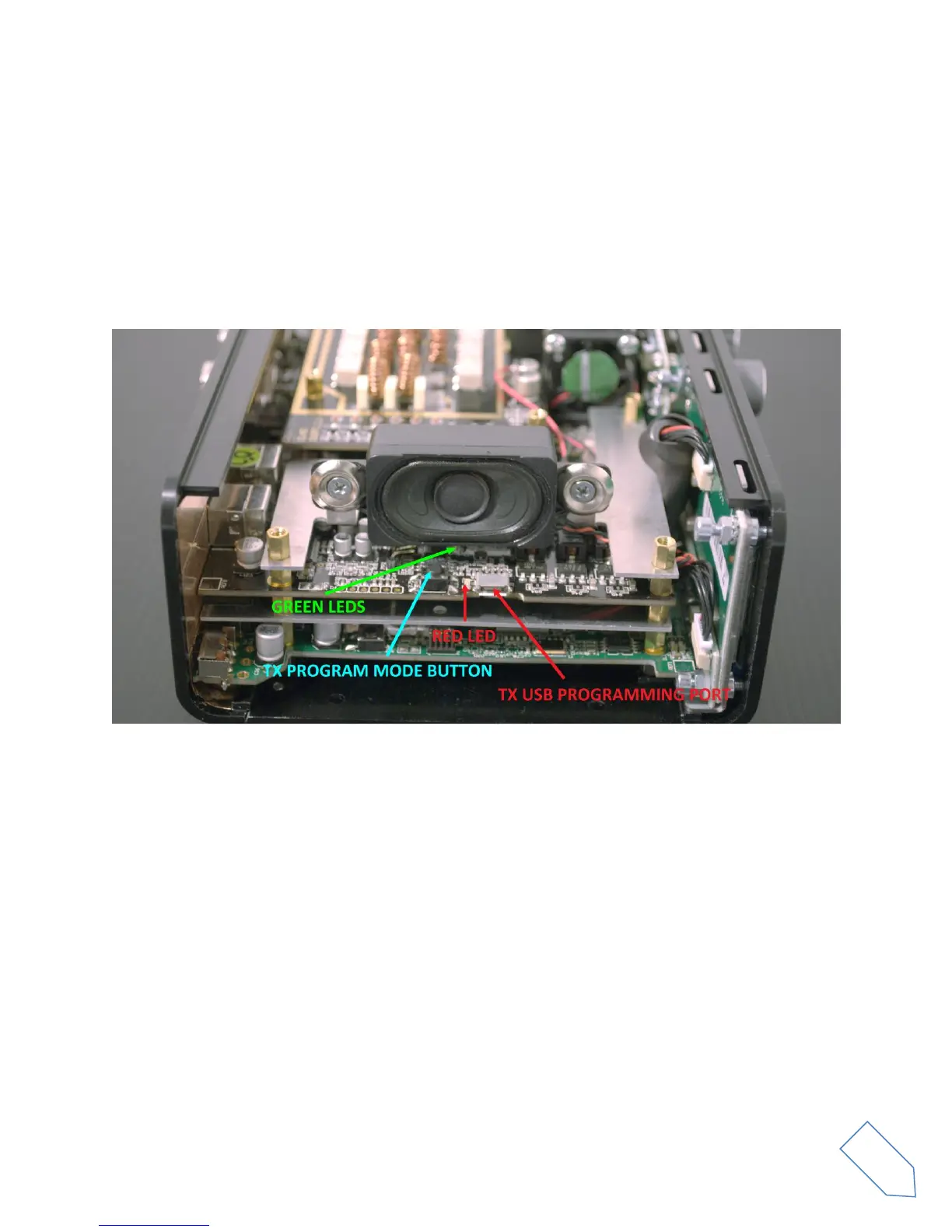

Connect the provided USB flash drive to the FDM-DUO “TX USB PROGRAMMING PORT” using the
provided micro-USB adapter. See the picture below. Connect the power supply, keep pressed the “TX
PROGRAM MODE BUTTON” and power up the FDM-DUO.
Keep pressed the “TX PROGRAM MODE BUTTON” until the “RED LED” turns on.
Release the “TX PROGRAM MODE BUTTON”.
Wait until the “RED LED” turns off.
Turn off the FDM-DUO, disconnect the USB flash drive and power up the FDM-DUO.
If during the firmware update the “GREEN LEDS” are blinking together quickly, it means that the
update process ended not successfully. In this case contact the ELAD technical assistance.
