D1650
Digital
Power Amplifier
ELAN Multi-Room Controller
ZONE OUTPUTS
Two Room Stereo Zone
By using the D1650’s Audio Loop, an additional pair of speakers can be added to a zone.
In this example, both pairs of speakers will ramp volume up and down simultaneously.

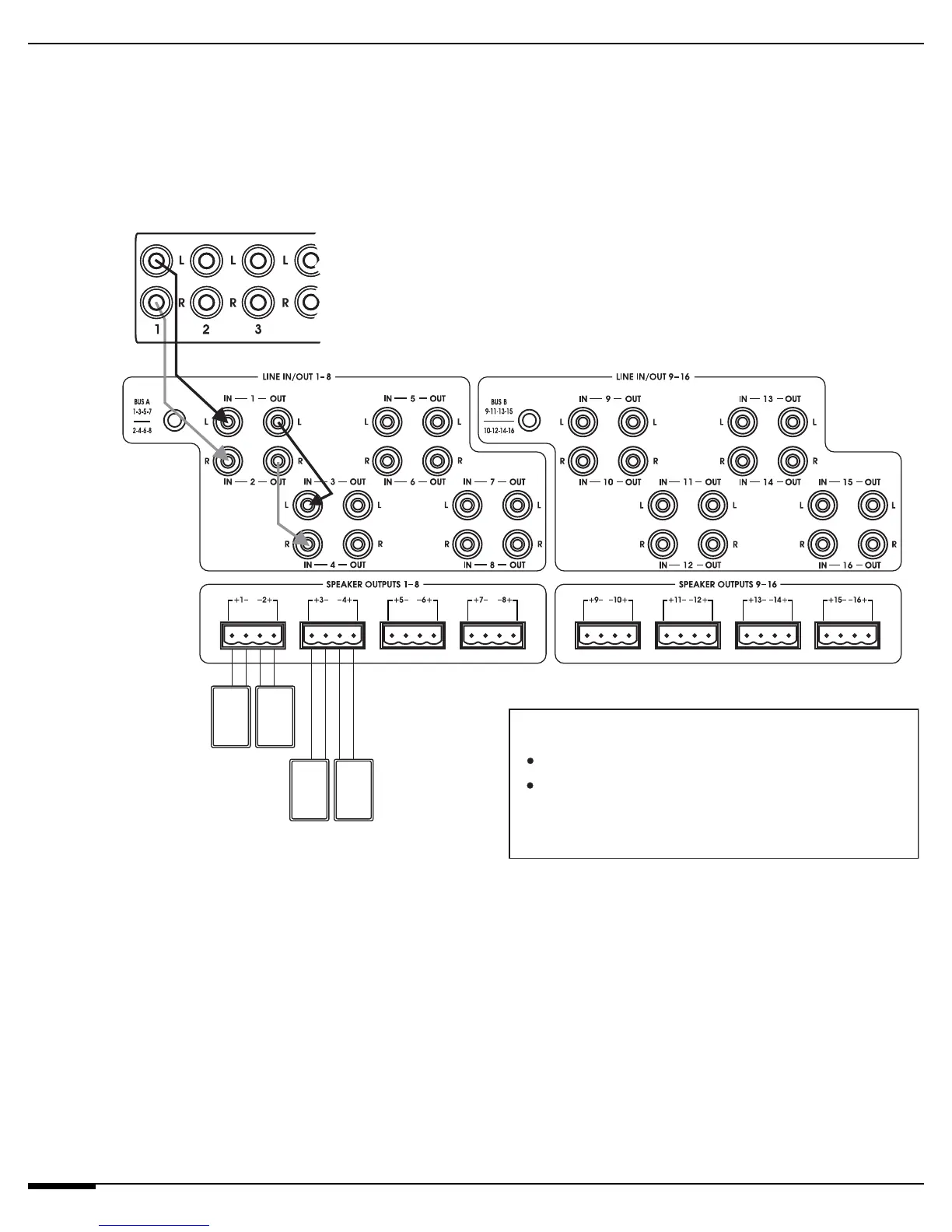

Two Room Stereo Zone
Zone 1 Output to Line Inputs 1 & 2
Line Outputs 1 & 2 to Line Inputs 3 & 4
All Speakers Volume Ramps Up/Down Together
Speaker Outputs Coincide w/ Line Inputs
