ELAN HOME SYSTEMS
D1650/D1651 INSTALLATION MANUAL
Page 12 © ELAN Home Systems, Inc. 2004 • All rights reserved. 7/04
ZONE 1 / Variable / Mono
D1650
Digital
Power Amplifier
“Y” L & R
Zone Out
to create
a mono
signal
ELAN Multi-Room Controller
ZONE OUTPUTS
Mono Zones
Use mono zones in areas where there is no distinct, stationary listening area such as hallways, L-shaped rooms,
kitchens, and outdoor areas. The use of mono zones also increases the capacity of the amplifier...up to sixteen
mono areas can be powered from one D1650.

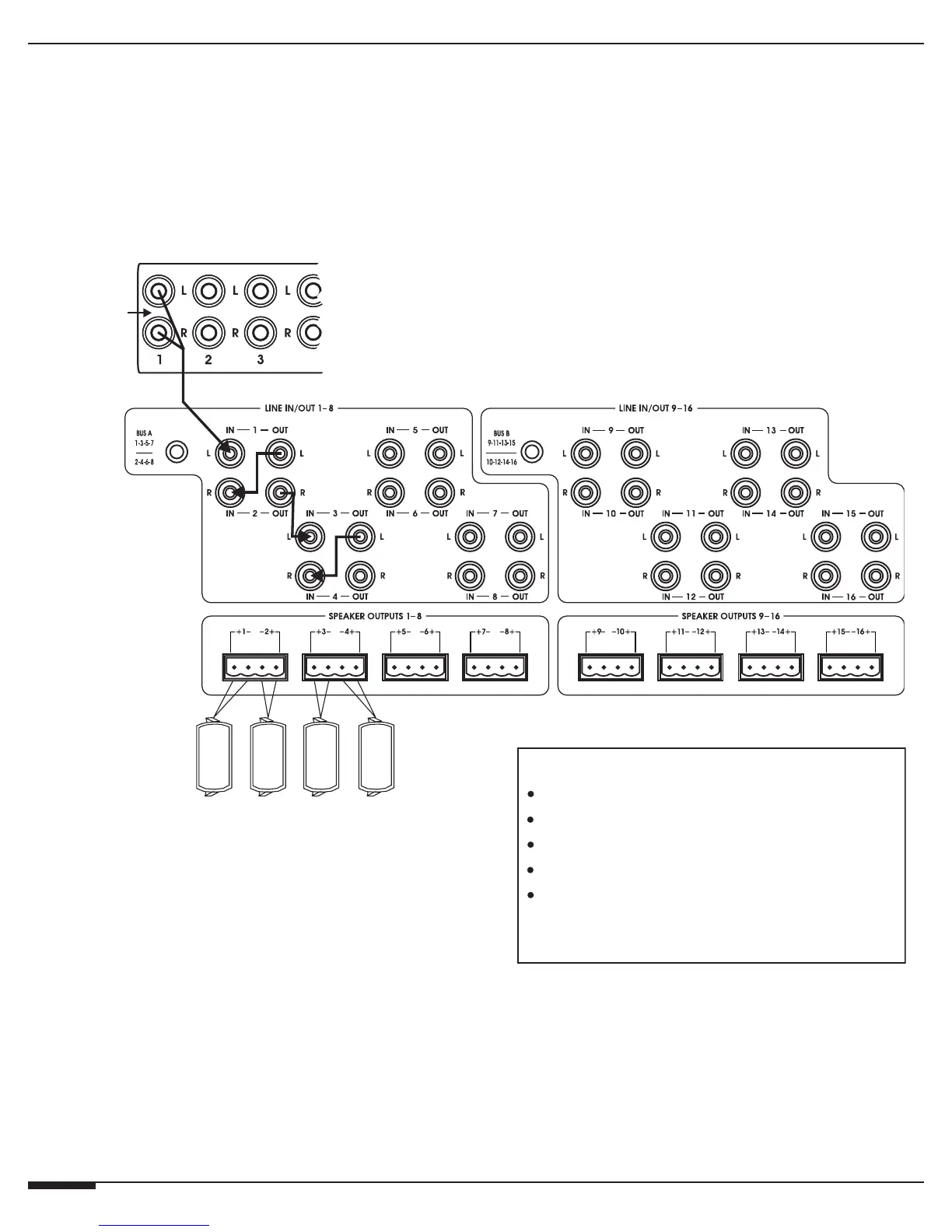

In this example, four channels of the D1650 are configured in mono to run four speakers
Four Room Mono Zone
Zone 1 Output to RCA ‘Y’ Cable
RCA ‘Y’ Cable to Line Input 1
Line Output 1 to Line Input 2
Line Output 2 to Line Input 3
Line Output 3 to Line Input 4
All Speakers Volume Ramps Up/Down Together
Speaker Outputs Coincide w/ Line Inputs
To Next Page
