Elan D1650 User Manual

Specifications
Audio Section
Power Rating - RMS
Output Power (16 CH Stereo) . . . . . . . 60Wrms @ 4 ohms/CH
Output Power (16 CH Stereo) . . . . . . . 45Wrms @ 8 ohms/CH
Frequency Response . . . . 20 Hz to 20 kHz, -.3dB into 8 ohms
Full Power Bandwidth . . . . . . . . . . . . . . . . . . . 10Hz to 50 kHz
Signal-To-Noise . . . . . . . . . . . . . . . . . . . . > 102db (A-weighted)
Channel Separation . . . . >-70dB (channel to channel @ 1 kHz)
Total Harmonic Distortion . . . . . . . . . . . . . . . . . . . . . . < .04%
Dynamic Headroom . . . . . . . . 120W @ 4ohms, 90W @ 8 ohms
Intermodulation Distortion . . . . . . . . . . . . . . . . . . . . . < 0.1%
Voltage Gain (AV) . . . . . . . . . Continuously Variable from 0 - 24
Slew Rate . . . . . . . . . . . . . . . . . . . . . . . . . . > 20V/microsecond
Input Impedance . . . . . . . . . . . . . . . . . . . . . . . . . . . 49 K ohms
Input Sensitivity . . . . . . . . . . . . . . . . 790Vrms (45W @ 8 ohms)
Connectors
Input/Loop Outputs . . . . . . . . . . . . . . . . . . . . Gold RCA Phono
Speaker Output . . . . . . . . . . . . . . . . . . . . . . WECO Terminators
Power
AC Power Requirements . . . . . . . . . . . . .120 VAC, 1200 Watts
Power Supply . . . . . . Ultra-high efficiency toroidal transformer
Triggers
Remote Trigger Inputs . . . . . . . . . . . . . . . 5 to 24 Volts AC/DC
Trigger Loop Output . . . . . . . . . . . . . . . . . . . . .+12VDC @0.1A
Dimensions/Weight
Dimensions . 5.25 x 17.0 x 15 (inches)/13.34 x 43.18 x 38.1 (cm)
Rack Face . . . . . . . . . . . . . 19 X 5.25 (inches)/48.26 x 13.34(cm)
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 lbs/22.68 kg
D1650/D1651 INSTALLATION MANUAL
Page 6 © ELAN Home Systems, Inc. 2004 • All rights reserved. 7/04

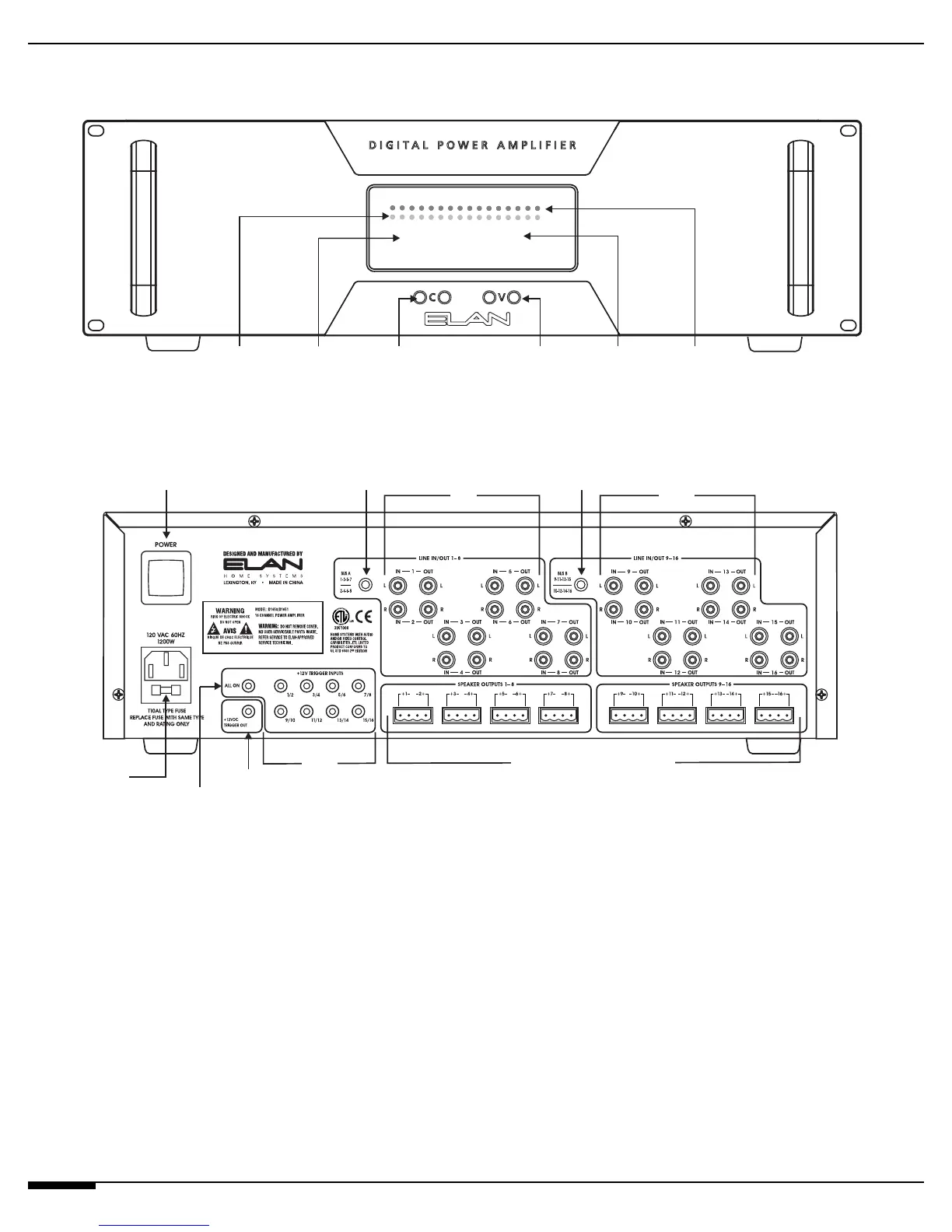

ELAN HOME SYSTEMS
BUS A
BUTTON
BUS B
BUTTON
SPEAKER OUTPUTS 1-16
+12V
TRIGGER
INPUT
PAIRS
1-16
+12VDC
TRIGGER
OUT
FUSE
POWER
SWITCH
+12V ‘ALL ON’
TRIGGER
LINE INPUTS/
LOOP OUPUTS
1-8
LINE INPUTS/
LOOP OUPUTS
9-16
CHANNEL
SELECT
DOWN/UP
BUTTONS
VOLUME
DOWN/UP
BUTTONS
SIGNAL
PRESENCE
LEDS
CHANNEL
CLIPPING
LEDS
VOLUME
LEVEL
DISPLAY
CHANNEL
SELECT
DISPLAY
FRONT
BACK
CH I6 VOL 75
System Overview
