D1650/D1651 INSTALLATION MANUAL
ELAN HOME SYSTEMS
Multi-Room Applications
The D1650 is specifically designed for multi-room
applications. Virtually every feature was selected to
enhance the multi-room experience and simplify the
multi-room installation:
Class T Topography allows all sixteen channels
to coexist in the same chassis without overheat
ing.
Buffered Loop Outputs allow sharing of
sources.
Stereo and Mono Bus Modes make configura
tion a logical process.
Sixteen Independent Channels provide audio
to a house full of speakers.
Triggers allow for automated functions on a
zone-by-zone or system-wide basis.
Independent Stereo Zones
The D1650 is set up to easily power eight independ-
ent stereo zones right out of the box. This is the
standard configuration for most multi-zone audio

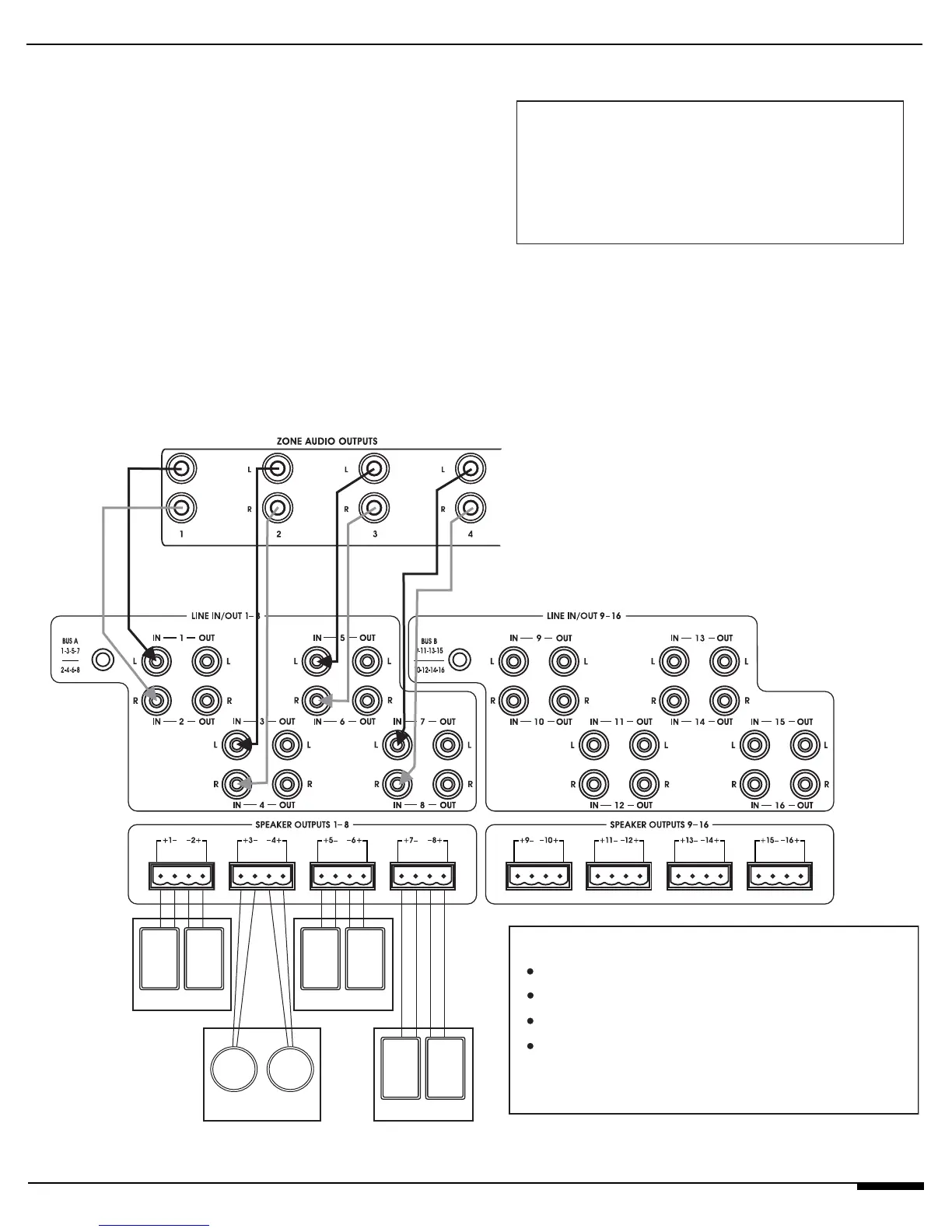

distribution systems. In the drawing below, each
pair of speakers will have independent volume con-
trol.
2. Connections and Applications
WIRING CONSIDERATIONS
Speaker Wires 14-18 AWG Speaker Wire
Audio Cables RCA Type Patch Cables
Triggers 2 Conductor Wire
w/ Mono Mini-Plug
ZONE 1
ZONE 2
ZONE 3
ZONE 4
D1650
Digital
Power
Amplifier
ELAN Multi-Room Controller
ZONE OUTPUTS
Four Independent Stereo Zones
Zone 1 Output to Line Inputs 1 & 2
Zone 2 Output to Line Inputs 3 & 4
Zone 3 Output to Line Inputs 5 & 6
Zone 4 Output to Line Inputs 7 & 8
Each Zone’s Speakers Have Independent Volume
Speaker Outputs Coincide w/ Line Inputs
