5.4.1 The Mains or Street Lighting Model:
For power through the permanent mains network or the street lighting system, the Evolis is
supplied with:
- A 4Ah transformer
- A 12V / 22Ah battery

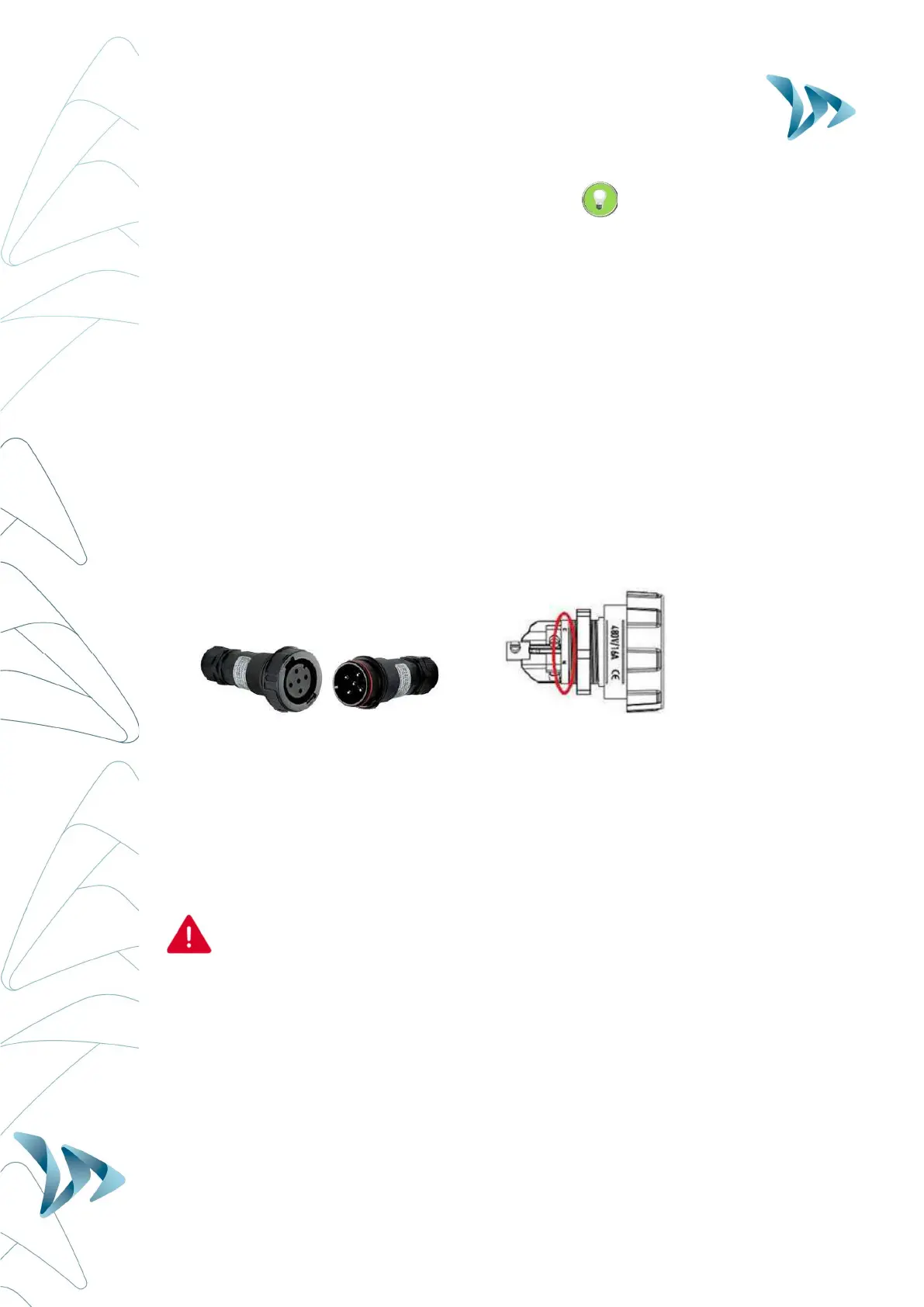

- IP66 male plug pre-cabled into the Evolis
- IP66 female plug for connection to the mains electricity supply
Connect the FEMALE plug to the mains electricity supply:
- Wire the neutral wire (commonly blue colour) cable on the "N"
- Wire the live wire (commonly brown colour) on the "1"
- Wire the earth wire (commonly green/yellow) on the CENTRE connection
- The other two prongs in the plugs are not used
- Then, simply plug the Evolis into the mains by plugging the male plug into the female.
The plugs are equipped with a twist mechanism that not only renders them waterproof but
also prevents them from being pulled apart. Don’t forget to activate this final twist before use.
The only difference between the permanent mains and the mains street lighting schema is that
the street light system requires the addition of a battery whereas the permanent mains system
does not (apart from instances where there is a localised power cut) .
Under the street lighting system,the Evolis will still function without a battery but ONLY during
the hours that the street lighting is functioning. With a battery added, it will charge during street
lighting hours and then take over as a power source from the street lighting as soon as daylight
hours dictate that they are switched off.
We strongly recommend adding a 30mA calibre 16A type AC circuit breaker
between the mains current & the radar speed sign. ELANCITY cannot be held
responsible for damages caused by a poor quality installation. In the absence of
a circuit breaker and the subsequent failure of the internal electrical charger, the
warranty will be invalidated.
