5.3 Capacity Plus trunking network with NAI Data (hybrid mode)
User GuideRG-1000e Remote Gateway
make and receive Group Calls to talkgroups 1, 2, 4. Radio station 4 is used to make Private Calls to the radio
subscribers and receive Private Calls from them.
You can find more detailed information on the configuration of the control stations in Capacity Plus Hybrid mode in
the "MOTOTRBO SYSTEM PLANNER" documentation (“System Topologies” chapter) and the "SmartPTT
Radioserver Configurator" software help file.
5.4 Capacity Plus Muliti-Site trunking network with NAI
Data (hybrid mode)
When connecting to a Capacity Plus Muliti-Site network in hybrid mode, the principles of system topology and
building the system are the same as those when connecting to a Capacity Plus network in hybrid mode.
The remote control stations can be located in the radio coverage area of any site of the network.

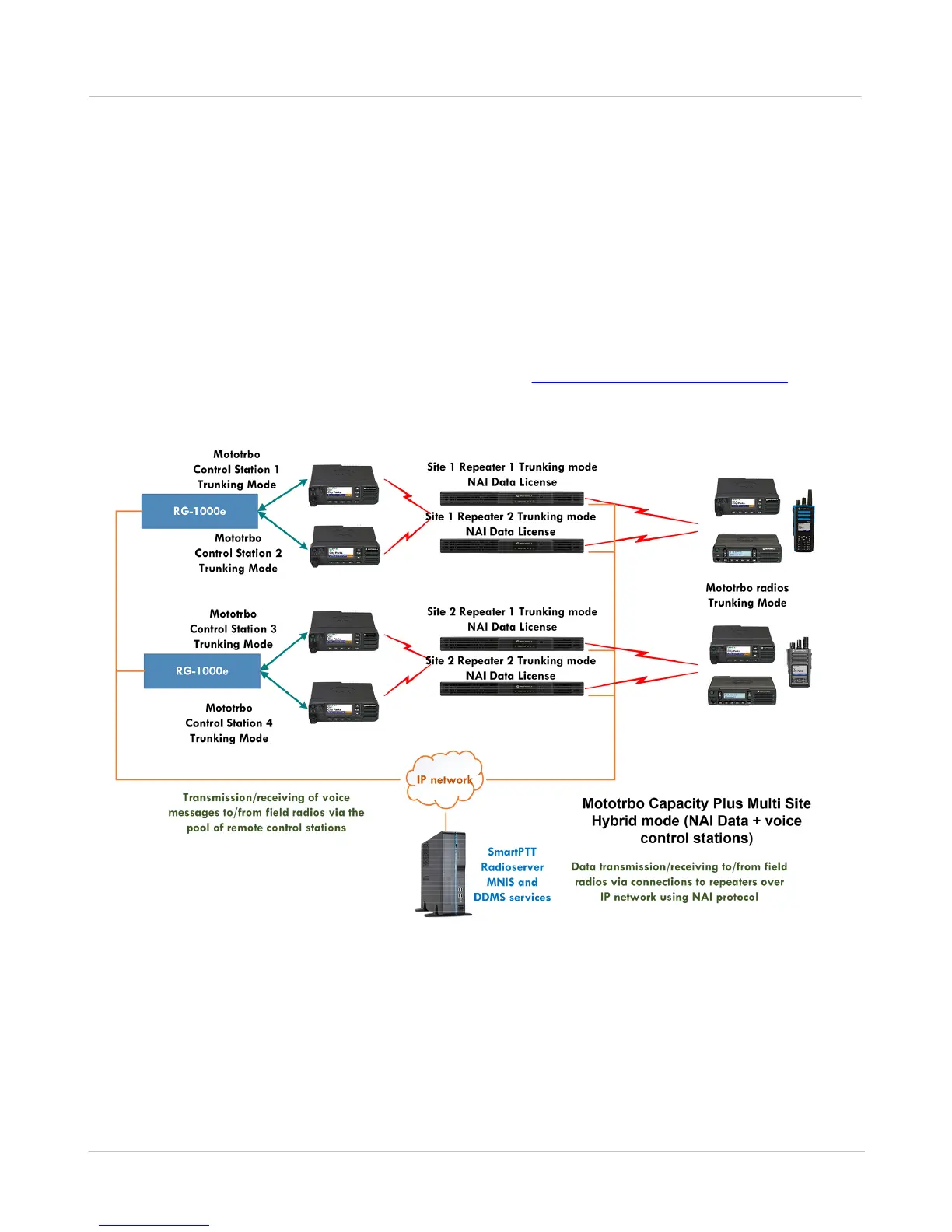

Fig. 18 Capacity Plus Multi Site in Hybrid mode: connection via the pool of the remote control stations
You can find more detailed information on the configuration of the control stations in Linked Capacity Plus Hybrid
mode in the "MOTOTRBO SYSTEM PLANNER" documentation (“System Topologies” chapter) and the
"SmartPTT Radioserver Configurator" software help file.
