User GuideRG-1000e Remote Gateway
Appendix I Pin numberings and diagrams of the
interface cables

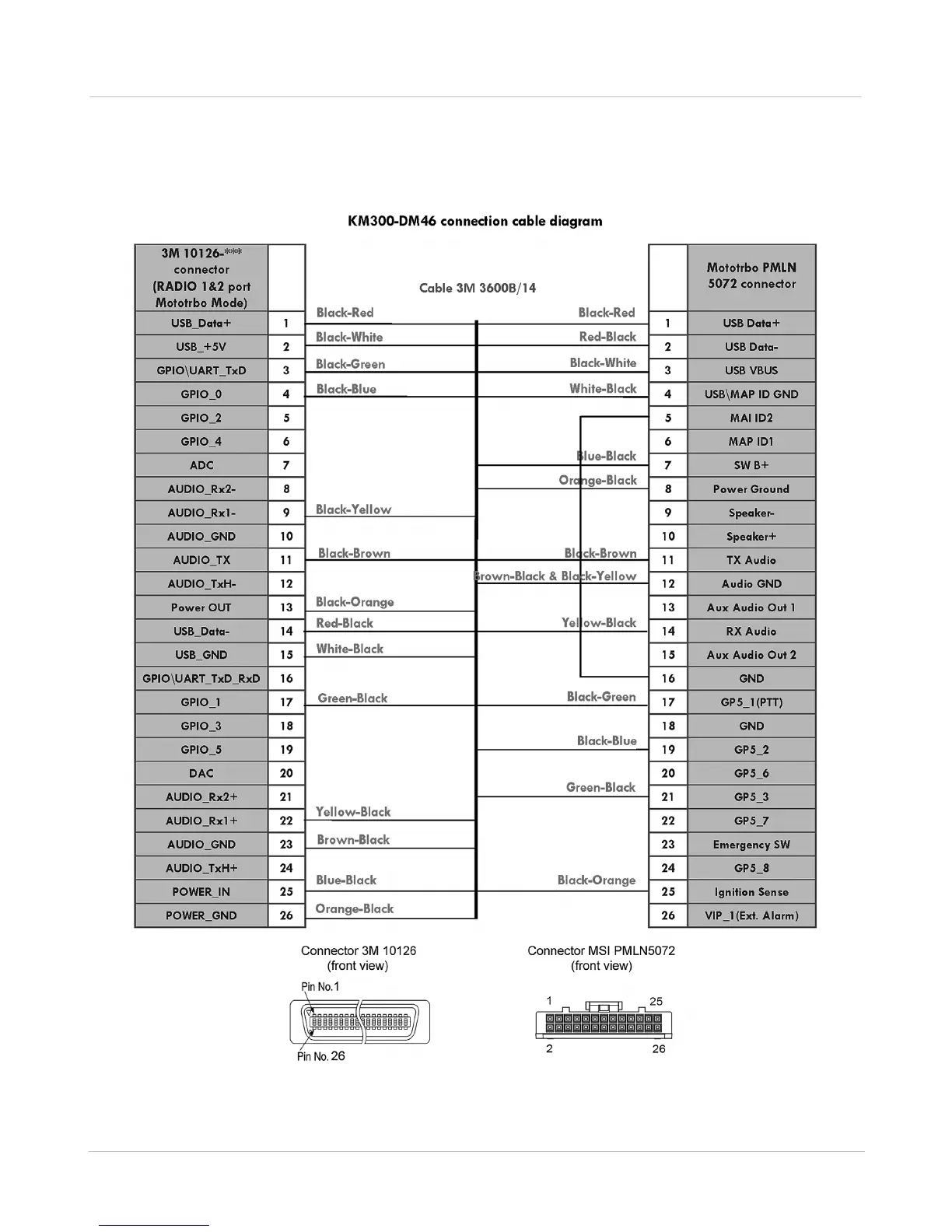

Fig. 20 KM300DM46 cable shematic
