User GuideRG-1000e Remote Gateway
1 System purpose
The RG-1000e GATEWAY is used in SmartPTT dispatch systems for remote control of MOTOTRBO control
station(s) or radios through the SmartPTT Radioserver (hereinafter referred to as radioserver) in the corporate IP
network or Internet. It is required to use MOTOTRBO Radios: EMEA region DM46**e, DM44**e, DM46**, DM44**,
DM2600 ; APAC region XiR M8600i, XiR M8600, XiR M6660 ; NA region XPR 5***e, XPR 5***, XPR 2500 ; LA
region DGM 8***e, DGM 5***e, DGM 8***, DGM 5***, DEM500.(*)
The RG-1000e GATEWAY provides the conversion of audio signals and radio control commands to IP packets
and the transmission of these packets over the network.The usage of the RG-1000e GATEWAY is an alternative
to direct connection of control stations to the radioserver via a USB interface.
The figure below shows an example of remote control using an RG-1000e GATEWAY.

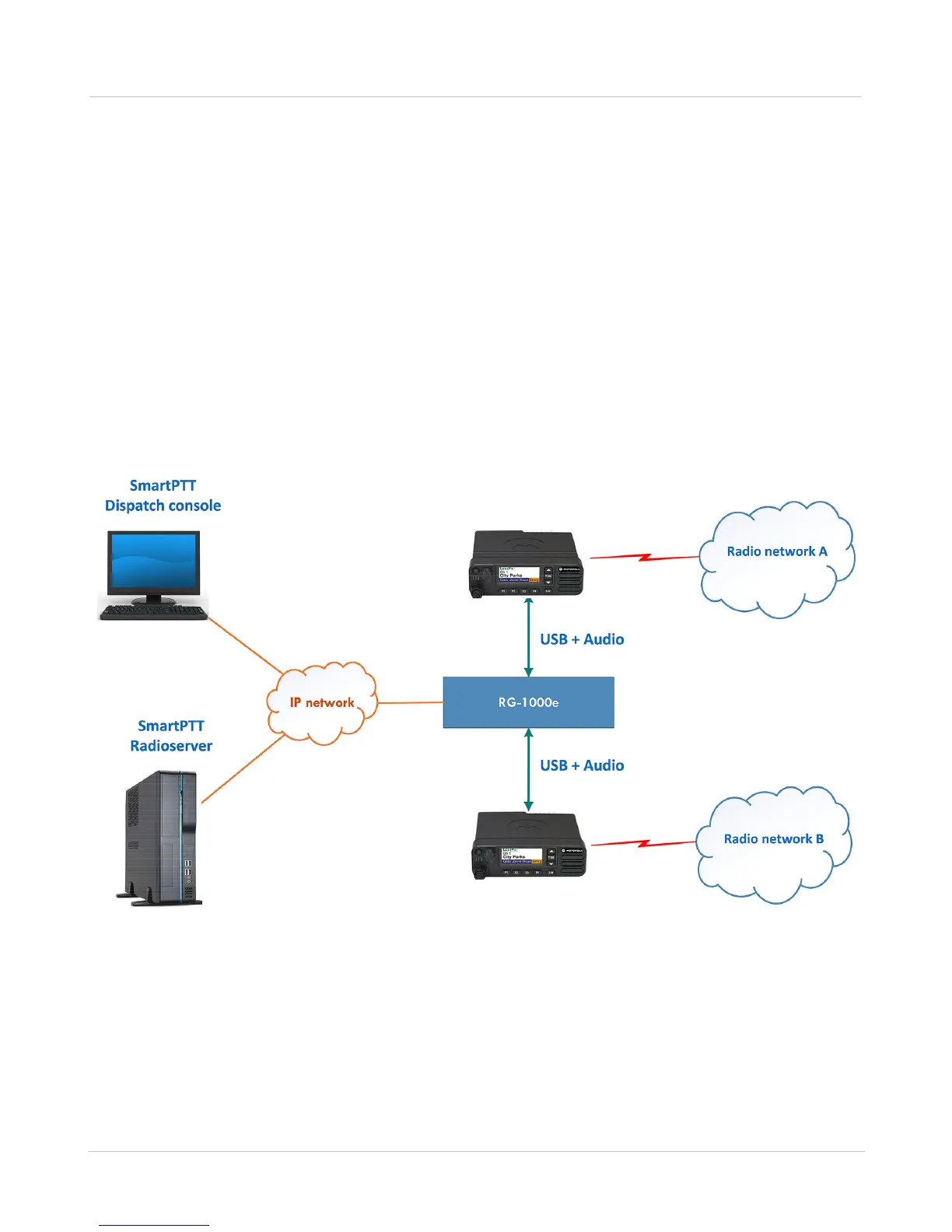

Fig. 1 MOTOTRBO control stations: remote connection to SmartPTT dispatch system
* Note 1: low tier Mototrbo radios DM1400/DM1600, CM200d/CM300d, DEM300/DEM400, XIR M3188/XIR M3688
can not be used with RG-1000e. The 1st generation of Mototrbo radios can not be usedwith with RG-1000e.
Note 2: due to Mototrbo firmware limitation middle tier radios DM2600/XPR2500/DEM500/XiR6660 can not setup
outgoing All Call. Indicated middle tier radios may receive incoming All Call and play feedback. This limitation may
be eliminated using non-typical TG ID for All Call feature.
