5.5 RG-1000e Repeater mode
User GuideRG-1000e Remote Gateway
5.5 RG-1000e Repeater mode
The RG-1000e GATEWAY may be configured to work in Repeater mode, that allows to create simplest distributed
radio networks. In Repeater mode mobile radios and\or repeaters (analog or digital) are connected to the RG-
1000e GATEWAY just using 5 wires: PTT, CSQ, RX Audio, TX Audio and GND. Repeater mode doesn't utilize
any signaling systems like CTCSS, DQS, MDC1200, QT, Select V, DMR, dPMR and doesn't use digital links
USB\RS-232 to exchange commands with radios/repeaters.
In Repeater mode the RG-1000e GATEWAYs communicate to each other via IP networks directly, creating
transparent links for audio streams and PTT\CSQ commands. SmartPTT radioserver doesn't take part in this
process. Following picture shows how the RG-1000e GATEWAY may be used in Repeater mode.

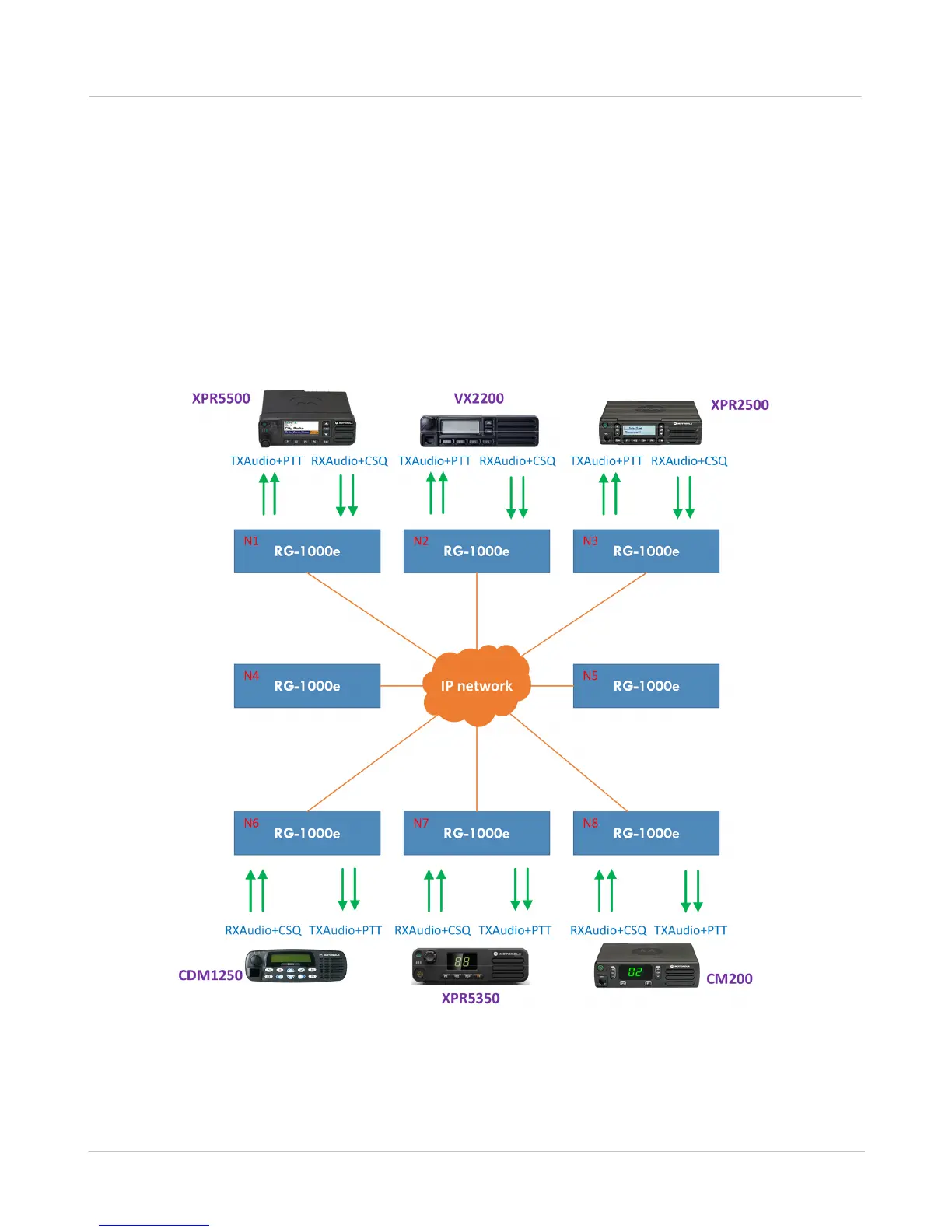

Fig. 19 8-nodes network with 8 RG-1000e units in Repeater mode ("star" topology)
