Appendix II Clamping elements

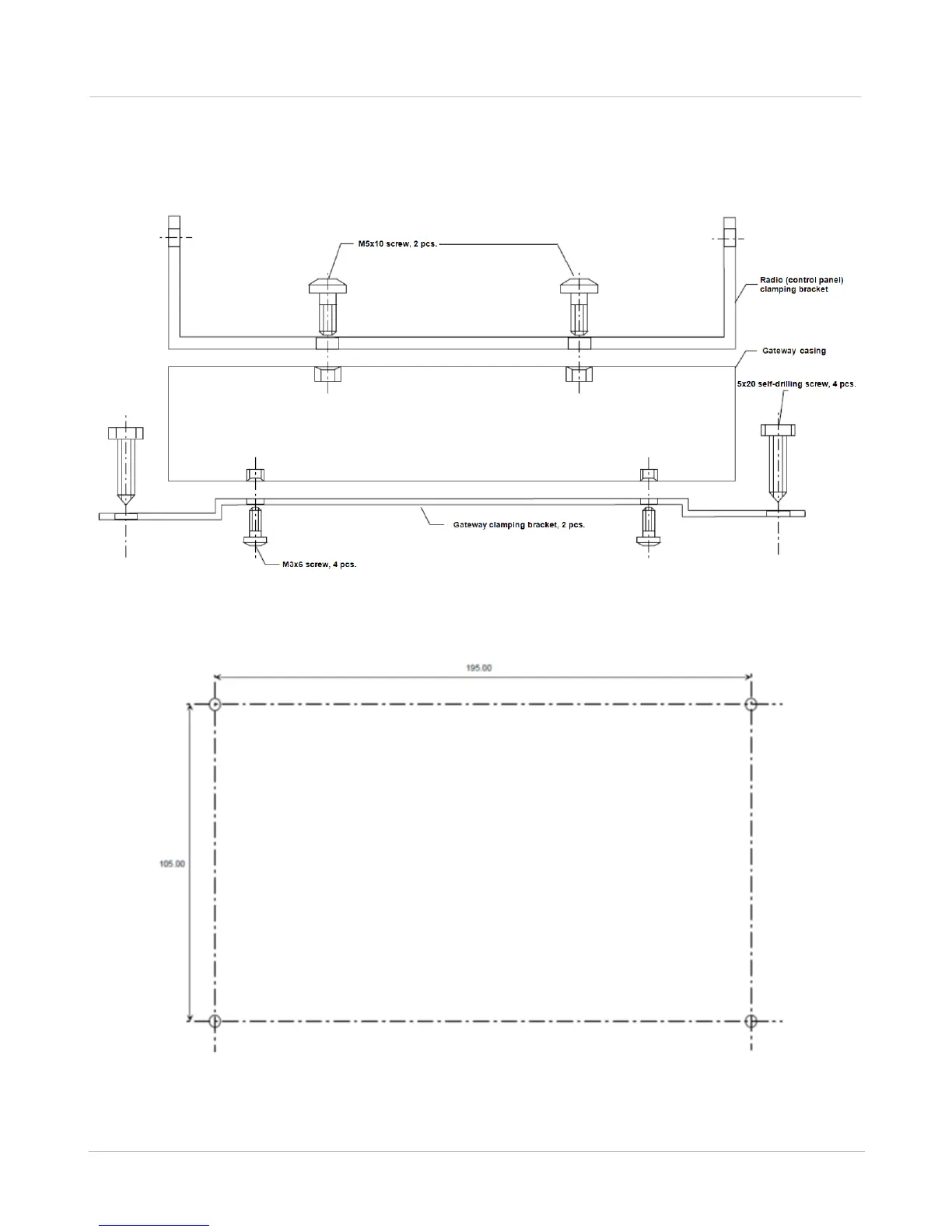

The clamping elements of the RG-1000e GATEWAYs and the radio bracket are shown in the figure below.
Fig. 22 Clamping elements of the RG-1000e GATEWAYs and the radio bracket
The mounting points of the RG-1000e GATEWAY brackets are shown in the figure below.
Fig. 23 Mounting points of the RG-1000e GATEWAY brackets
