Installing the KRX3A Module Supports

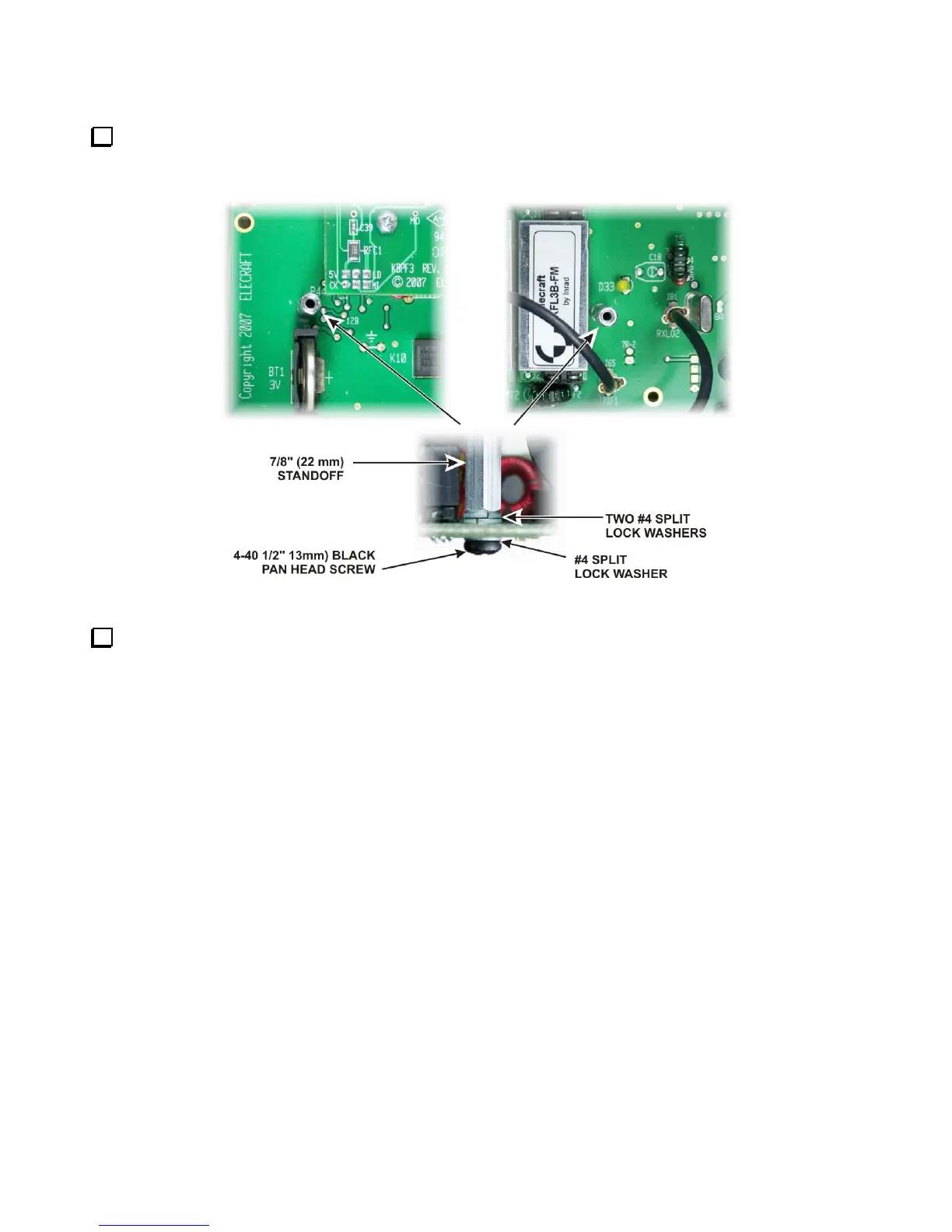

Install two standoffs on the K3 RF board (the large board filling the bottom of the K3) as shown in Figure
24. One standoff is mounted next to battery BT1 and the other is mounted next to FL1. Be sure to use two lock
washers between the standoffs and the board as shown. They are required to obtain the proper height.
Figure 24. Mounting Standoffs on the K3 RF Board.
Replace the forward bottom cover using seven 3/16” (4.8 mm) black pan head screws (see Figure 8 on
page 13).
