Locate the four coaxial TMP cables supplied and sort them by length. There are two 5” (13 cm), two 10”
(25 cm) and one 12” (30 cm) cables. These are approximate measurements measured from the tip of one
connector to the other. Check the cables as shown in Figure 26 to ensure there are no excess strands of the center
conductor extending beyond the tip of the connector. .

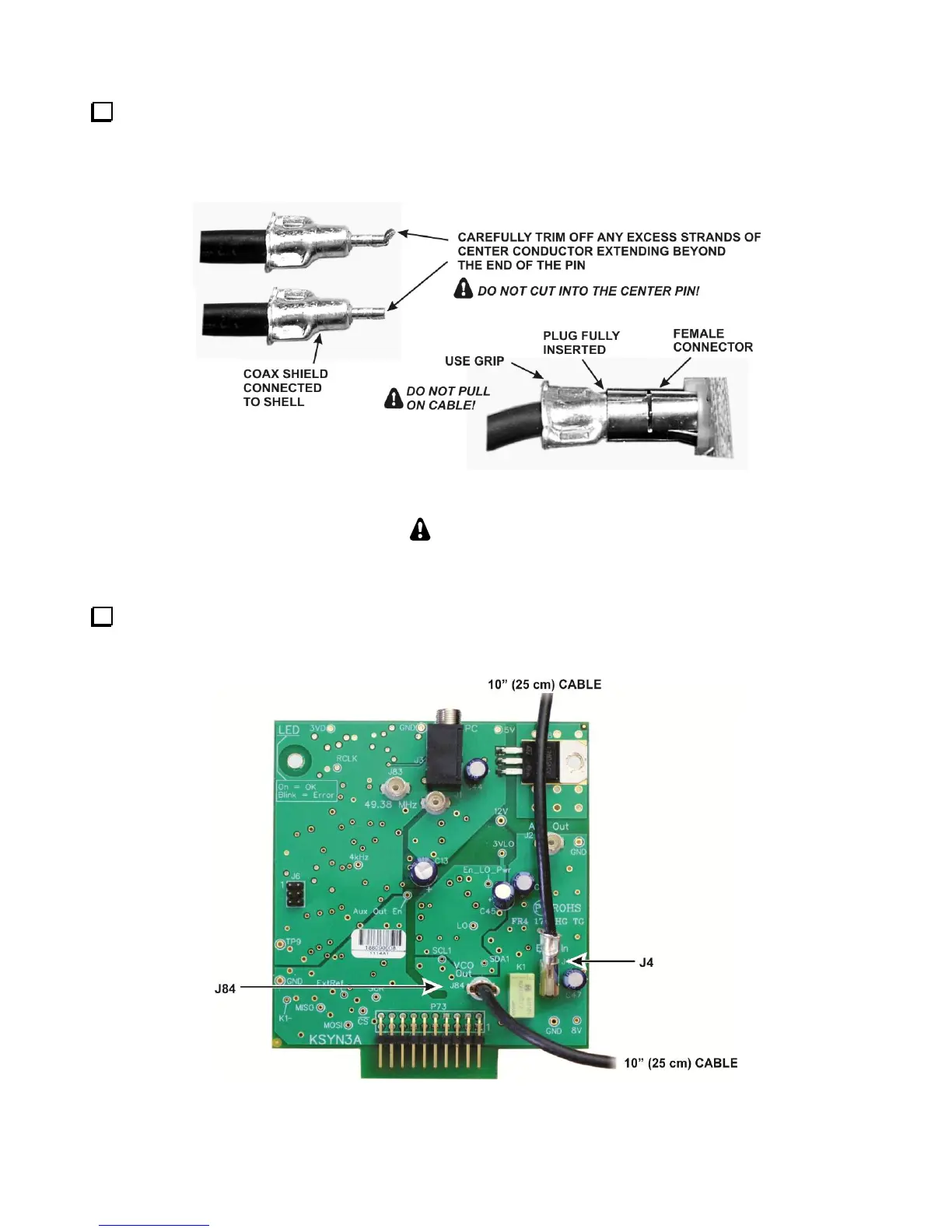

Figure 26. TMP Cable Connectors.
CAUTION
When inserting or removing the TMP connectors, always use the grip as shown in
Figure 26. Pulling on the black cable may rip it out of the connector.
Plug one end of a 10” (25 cm) cable into J84 and one end of a second 10” (25 cm) cable into J4 near the
bottom of the auxiliary KSYN3A synthesizer board. The other ends of the cable s will be connected later.
Installing them now is much easier than after the KSYN3A board in mounted in t he K3.
Figure 27. Connecting TMP Cables to the KSYN3A Synthesizer.
