HOW TO MAKE A ROLLED EDGE
Wrap sheet metal around a round steel bar or pipe.

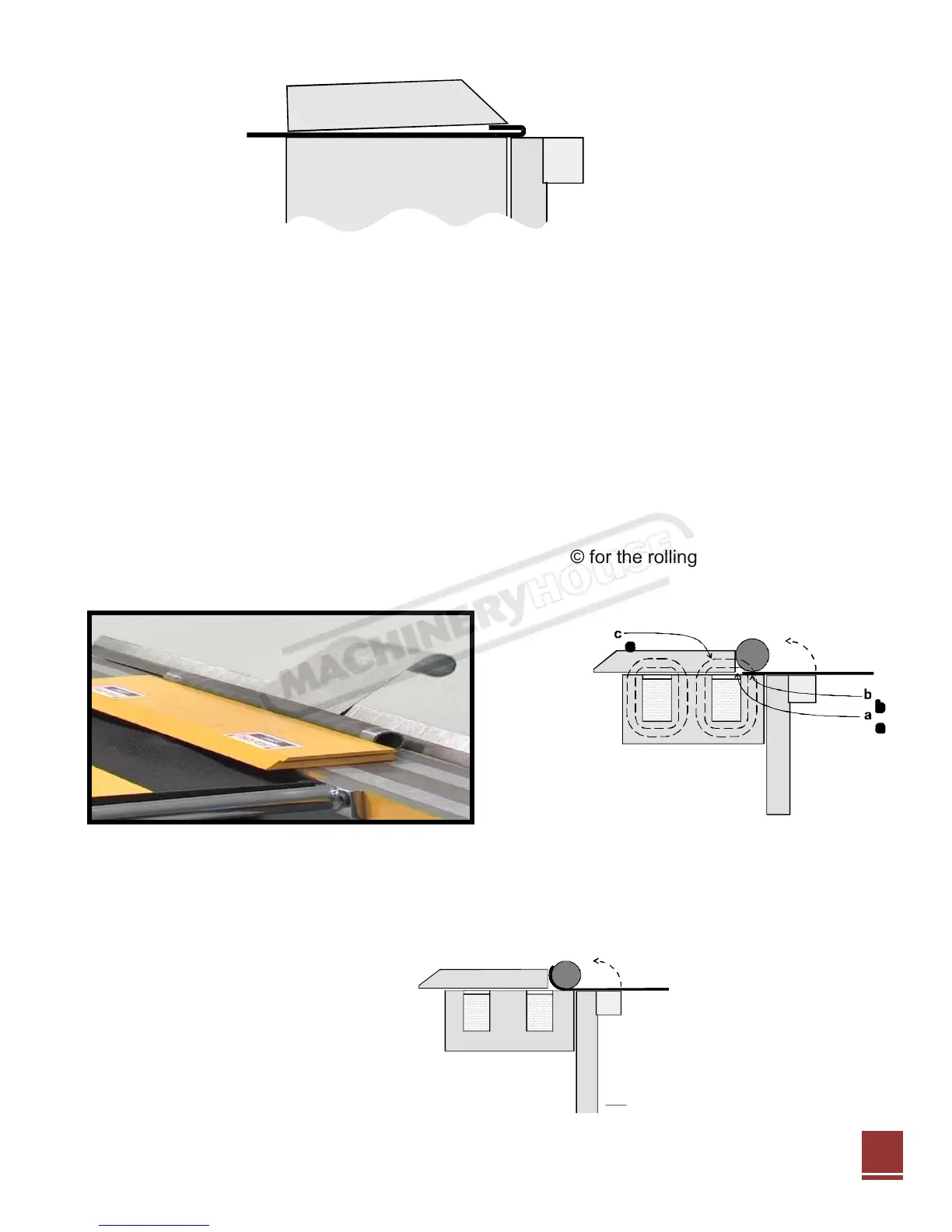

1. Position sheet metal clamp bar and round pipe/bar as indicated on drawing.
i) To avoid weak clamping make sure that the clamp bar does not overlap the
machines front pole (A).
ii) Ensure that the rolling pipe is resting on the front pole of the machine (B). It must
not sit on the aluminium surface of the machine.
iii) The clamp bar provides a magnetic pathway © for the rolling bar.
Folding round a pipe
2. Wrap the sheet metal around the rolling bar as far as possible –
