For ease of folding, make use of the short clamp bars to the shape folds into each other.
Electrabrake is designed to assist you in the manufacture of a vast variety of box shapes.
BASIC BOXES
Use the long bar clamp to make the first two bends. Choose and insert one or two of the short
clamp bars as indicated on drawing.

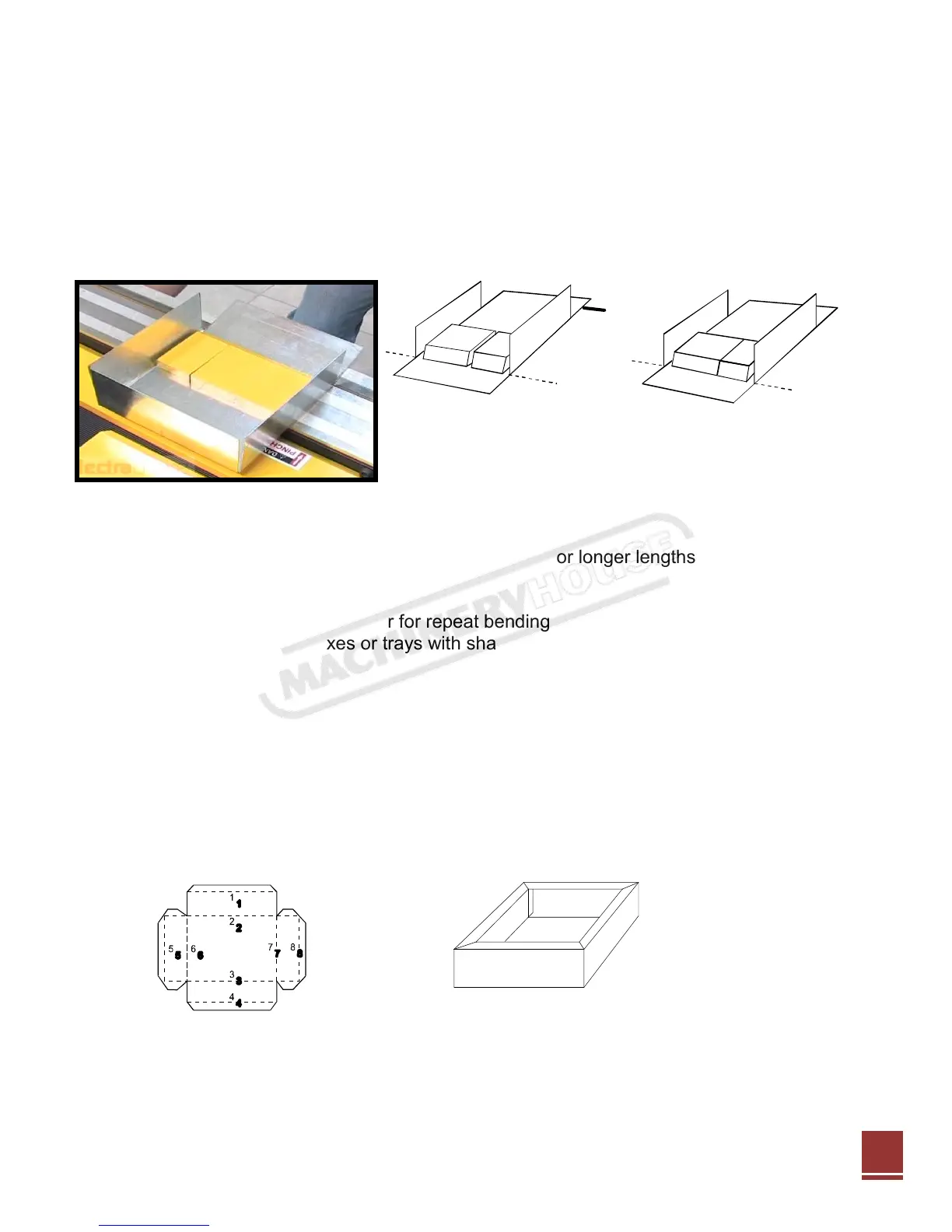

Fitting the short clamp bar
Select the largest clamp piece for bends up to 70mm and for longer lengths use several clamp
pieces to fit the required length.
Clamp pieces can be plugged together for repeat bending when making a single unit. A slotted
clamp bar must be used for boxes or trays with shallow sides. Refer to HOW TO
MAKE TRAYS.
LIPPED BOXES
1. Use the set of standard short clamp bars to make rectangular lipped boxes i.e. 98mm.
2. Choose the short clamp bar with at least a lip-width shorter than that of the box (Two or
three may be necessary – depending on length). Make folds 5, 6, 7 and 8. Take care to
guide the corner tabs on inside or outside of the box.
Instruction Manual for EB2500 (S5321)
