BOXES WITH INDIVIDUAL ENDS
Advantages:
Material saving
No corner notching
Cut without a guillotine
Fold with the regular full length clamp bar.
Disadvantages:
Extra folds to be carried out
Extra corners to join
The finished product shows more joins
Use the full length clamp bar for all folding.

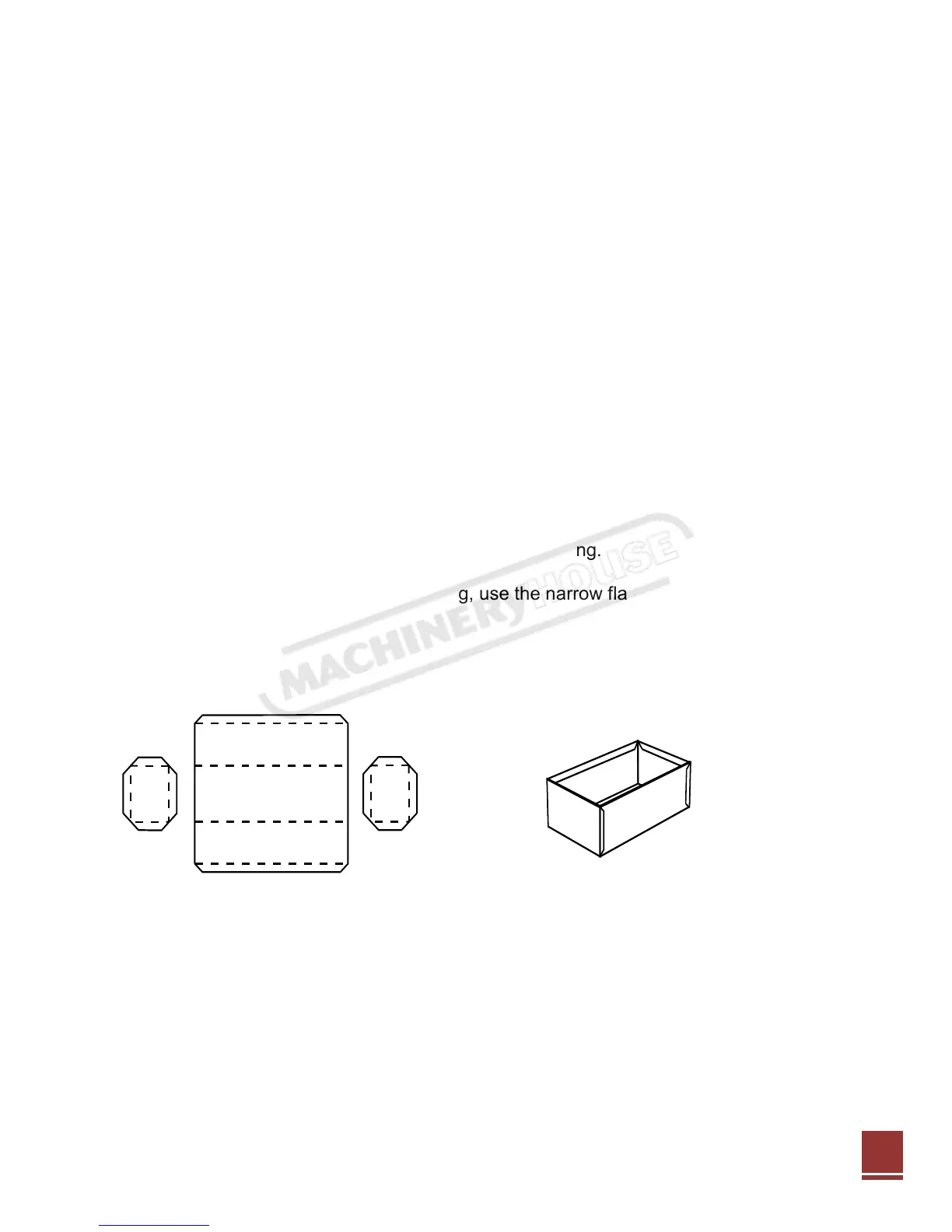

1. Set up sheet metal as per drawing below
2. Form four folds in the sheet metal as shown on drawing.
3. For folds on side panels, as per drawing, use the narrow flange of the end piece of the
clamp bar
4. Join the box
FLANGED BOXES WITH PLAIN CORNERS
To make plain cornered boxes, the length and width should not exceed the clamp bar width of
98mm. Outside flanges are also used when making top hat sections.
1. Mark up sheet metal as per drawing below.
2. Use the full length clamp bar and fold sections marked 1, 2, 3 & 4.
3. Form fold 5 by inserting the flange under clamp bar follow by folding 6.
Instruction Manual for EB2500 (S5321)
