12 184633
ELECTRO FREEZE Models 876, 876B, 876C, 876RH, 876BRH, 876CRH
CAUTION
To prevent bacteria
growth, remove all O-rings
when cleaning. Failure to
do so could create a health
hazard.
5. Remove the O-rings (11) from
the piston and O-ring (12) from the
piston rod. Remove the O-ring (8) from
the valve outlet (7). Remove two O-rings
(3) from the air bleed plug (4).
6. Remove the door bushing (15)
from the door (1) or end of the beater.
7. Remove the door quad ring (14)
from the face of the freezer.
CAUTION
To avoid electrical shock or
contact with moving parts,
make sure all switches are in
the “OFF” position and that
the main power supply is
disconnected.
1. If there is product in the freezer,
refer to Closing Procedures, Draining
Product, Section 9.1.
— continued
6.2 Disassembly Instructions
2. Remove the four hand knobs (figure 6-2,
item 2) and pull the dispensing door (1) straight
out.
3. Remove the ball knob (6), nut (5), air bleed
plug (4) and valve outlet (7) from the door (1).
4. Remove the piston assembly (10, 11, 12,
13) and spring (9) by pushing the piston rod (13)
through the back of the door (1).

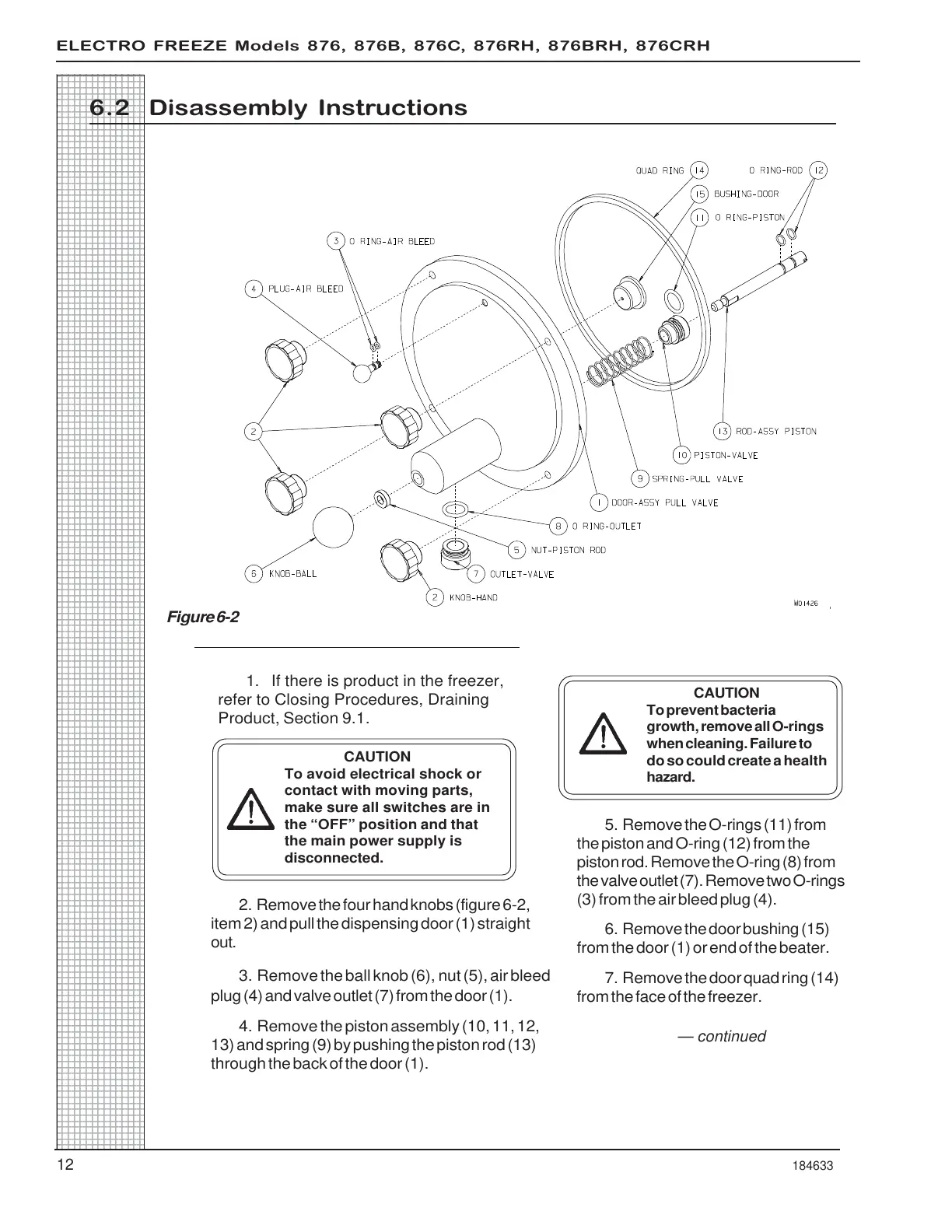

Figure 6-2
