ELECTRO FREEZE Models 876, 876B, 876C, 876RH, 876BRH, 876CRH

Use only original or authorized replacement parts with this freezer.

Use of unapproved parts will void warranty.

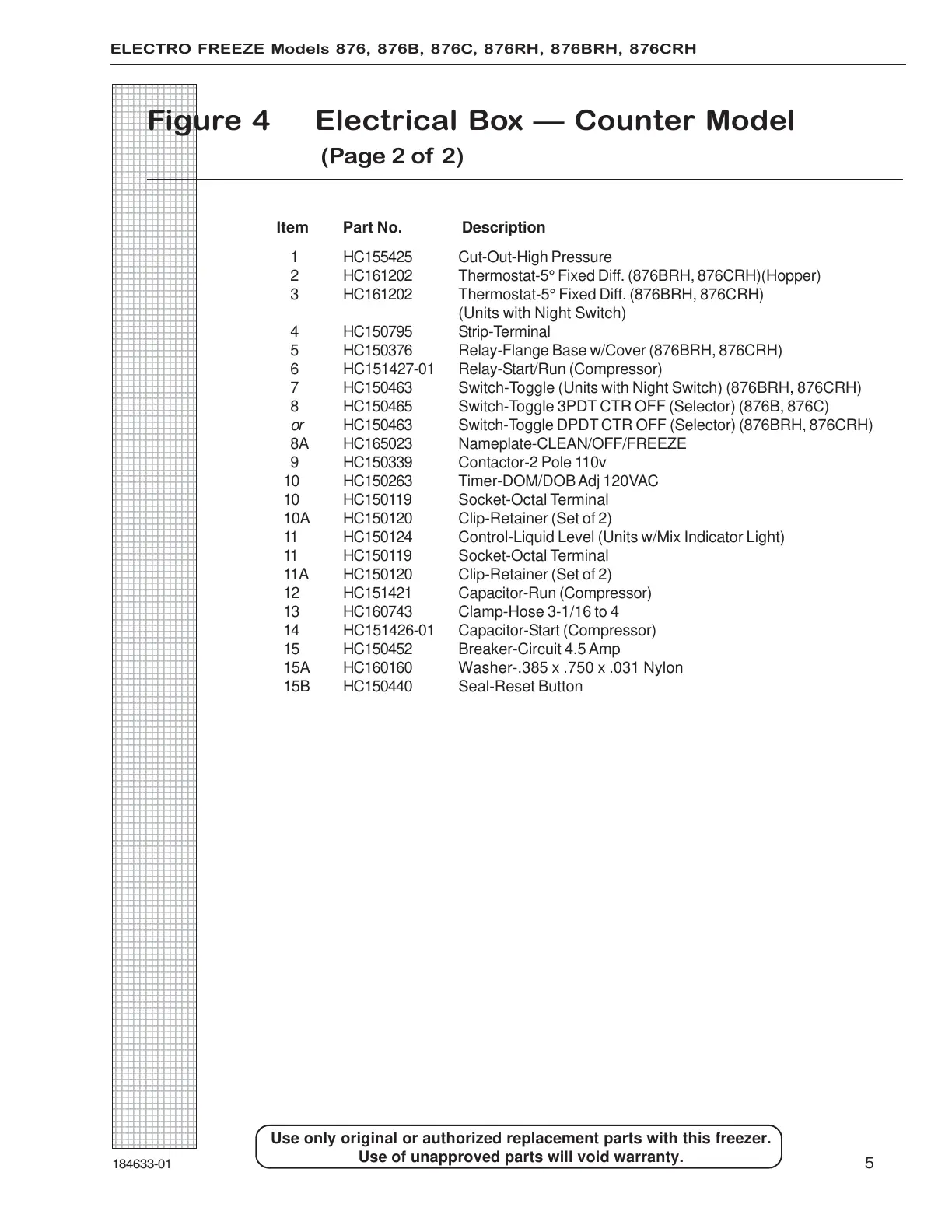

Figure 4 Electrical Box — Counter Model

(Page 2 of 2)

Item Part No. Description

1 HC155425 Cut-Out-High Pressure

2 HC161202 Thermostat-5° Fixed Diff. (876BRH, 876CRH)(Hopper)

3 HC161202 Thermostat-5° Fixed Diff. (876BRH, 876CRH)

(Units with Night Switch)

4 HC150795 Strip-Terminal

5 HC150376 Relay-Flange Base w/Cover (876BRH, 876CRH)

6 HC151427-01 Relay-Start/Run (Compressor)

7 HC150463 Switch-Toggle (Units with Night Switch) (876BRH, 876CRH)

8 HC150465 Switch-Toggle 3PDT CTR OFF (Selector) (876B, 876C)

or HC150463 Switch-Toggle DPDT CTR OFF (Selector) (876BRH, 876CRH)

8A HC165023 Nameplate-CLEAN/OFF/FREEZE

9 HC150339 Contactor-2 Pole 110v

10 HC150263 Timer-DOM/DOB Adj 120VAC

10 HC150119 Socket-Octal Terminal

10A HC150120 Clip-Retainer (Set of 2)

11 HC150124 Control-Liquid Level (Units w/Mix Indicator Light)

11 HC150119 Socket-Octal Terminal

11A HC150120 Clip-Retainer (Set of 2)

12 HC151421 Capacitor-Run (Compressor)

13 HC160743 Clamp-Hose 3-1/16 to 4

14 HC151426-01 Capacitor-Start (Compressor)

15 HC150452 Breaker-Circuit 4.5 Amp

15A HC160160 Washer-.385 x .750 x .031 Nylon

15B HC150440 Seal-Reset Button
