184633-01 3

ELECTRO FREEZE Models 876, 876B, 876C, 876RH, 876BRH, 876CRH

Use only original or authorized replacement parts with this freezer.

Use of unapproved parts will void warranty.

Item Part No. Description

1 HC113072 Beater-Assy. Slush

2 HC138256 Blade-Scraper

3 HC134649 Spring-Blade

4 HC160605 Quad Ring

5* HC138215 Bushing (Washer)-Shaft Seal

6* HC160557 Seal-Beater Shaft

*Can be ordered together as:

HC116143 Seal-Assy. Shaft (Includes Items 5 & 6)

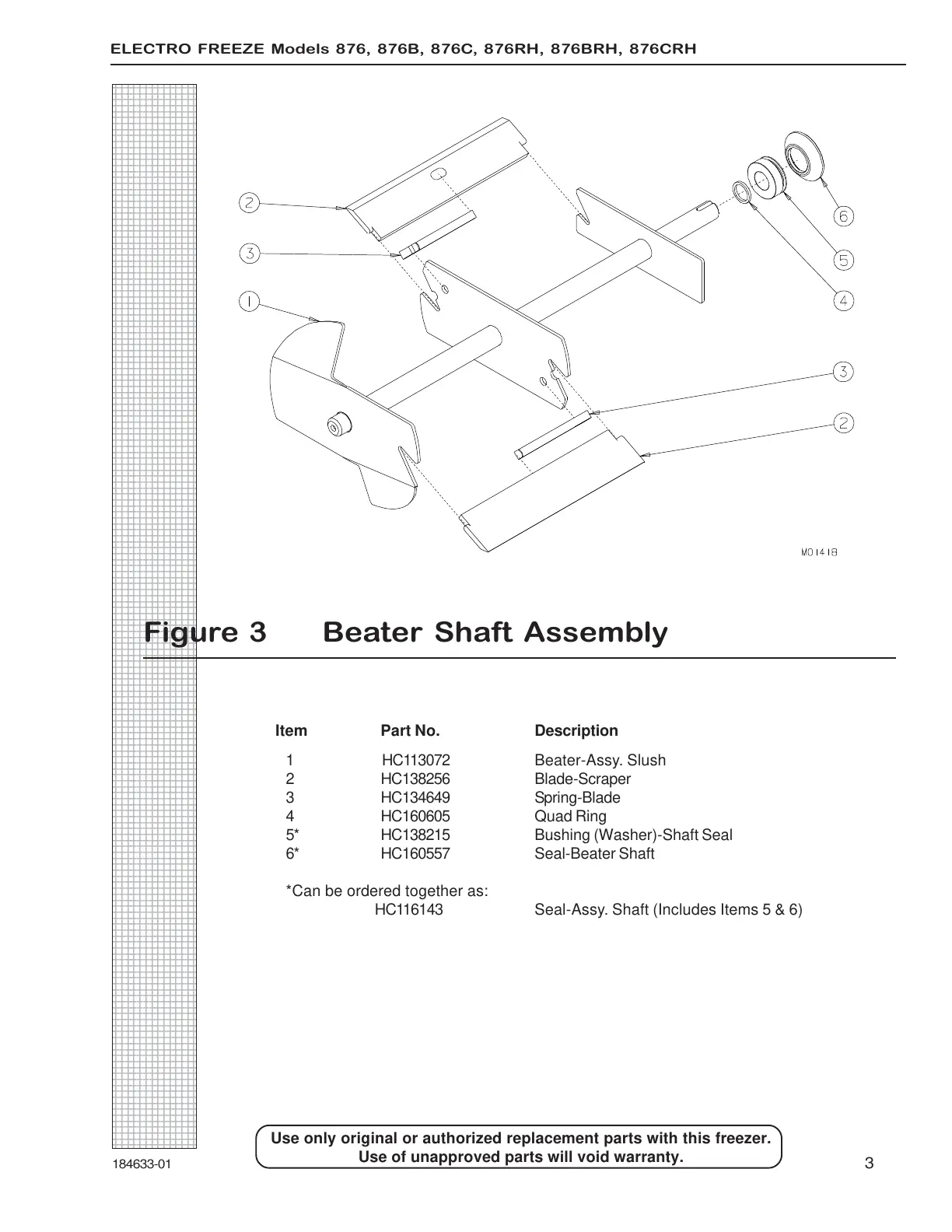

Figure 3 Beater Shaft Assembly
