ELECTRO FREEZE Models 876, 876B, 876C, 876RH, 876BRH, 876CRH
6.3 Cleaning Instructions
CAUTION
To prevent bacteria growth,
remove ALL O-rings when
cleaning. Failure to do so
could create a health
hazard.
Important:
Do not use unapproved sanitizers or
laundry bleach. These materials may
contain high concentrations of chlo-
rine and will chemically attack freezer
components.
6.2 Disassembly Instructions - continued
NOTE: It is your responsibility to be
aware of the requirements for meeting
federal, state and local laws concerning the
frequency of cleaning and sanitizing your
freezer.
CAUTION
Electric shock hazard. Do
not splash water on
switches or allow water to
flow onto electrical
components inside the
machine.
1. Prepare a three compartment sink
for cleaning parts removed from the
freezer, per applicable health codes. Also
prepare a clean surface to air-dry all parts.
— continued

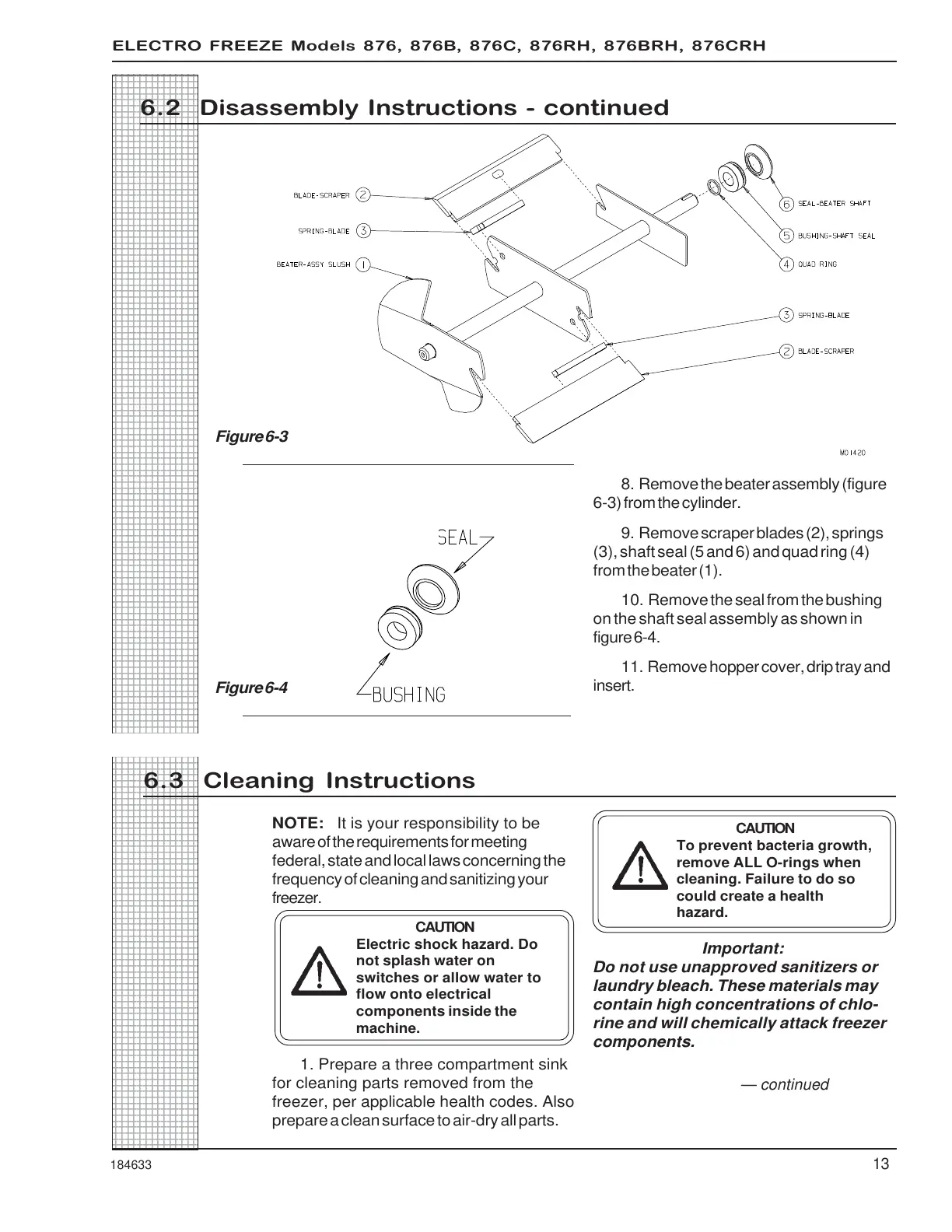

8. Remove the beater assembly (figure
6-3) from the cylinder.
9. Remove scraper blades (2), springs
(3), shaft seal (5 and 6) and quad ring (4)
from the beater (1).
10. Remove the seal from the bushing
on the shaft seal assembly as shown in
figure 6-4.
11. Remove hopper cover, drip tray and
insert.
Figure 6-4
Figure 6-3
