ELECTRO FREEZE Models 876, 876B, 876C, 876RH, 876BRH, 876CRH

Use only original or authorized replacement parts with this freezer.

Use of unapproved parts will void warranty.

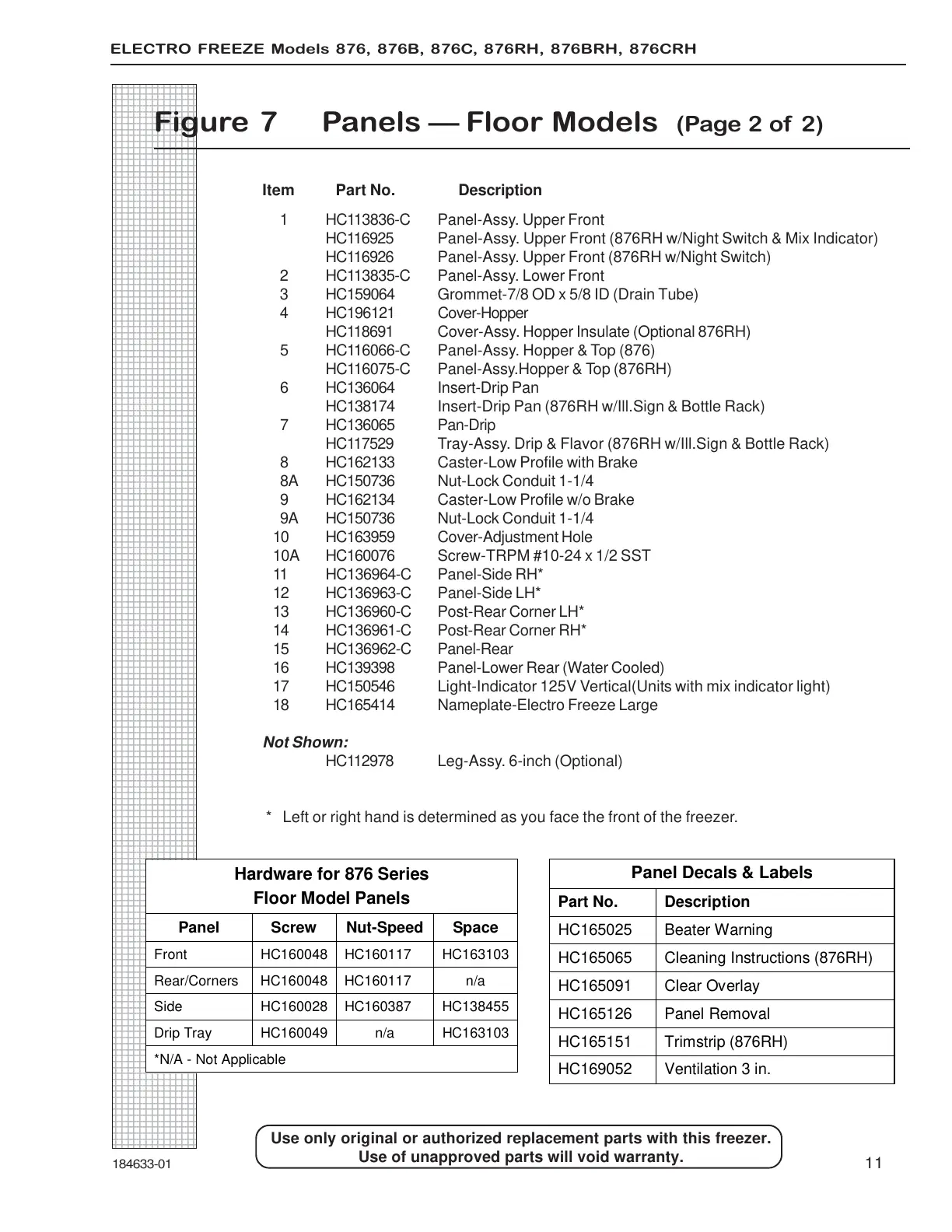

Figure 7 Panels — Floor Models (Page 2 of 2)

Item Part No. Description

1 HC113836-C Panel-Assy. Upper Front

HC116925 Panel-Assy. Upper Front (876RH w/Night Switch & Mix Indicator)

HC116926 Panel-Assy. Upper Front (876RH w/Night Switch)

2 HC113835-C Panel-Assy. Lower Front

3 HC159064 Grommet-7/8 OD x 5/8 ID (Drain Tube)

4 HC196121 Cover-Hopper

HC118691 Cover-Assy. Hopper Insulate (Optional 876RH)

5 HC116066-C Panel-Assy. Hopper & Top (876)

HC116075-C Panel-Assy.Hopper & Top (876RH)

6 HC136064 Insert-Drip Pan

HC138174 Insert-Drip Pan (876RH w/Ill.Sign & Bottle Rack)

7 HC136065 Pan-Drip

HC117529 Tray-Assy. Drip & Flavor (876RH w/Ill.Sign & Bottle Rack)

8 HC162133 Caster-Low Profile with Brake

8A HC150736 Nut-Lock Conduit 1-1/4

9 HC162134 Caster-Low Profile w/o Brake

9A HC150736 Nut-Lock Conduit 1-1/4

10 HC163959 Cover-Adjustment Hole

10A HC160076 Screw-TRPM #10-24 x 1/2 SST

11 HC136964-C Panel-Side RH*

12 HC136963-C Panel-Side LH*

13 HC136960-C Post-Rear Corner LH*

14 HC136961-C Post-Rear Corner RH*

15 HC136962-C Panel-Rear

16 HC139398 Panel-Lower Rear (Water Cooled)

17 HC150546 Light-Indicator 125V Vertical(Units with mix indicator light)

18 HC165414 Nameplate-Electro Freeze Large

Not Shown:

HC112978 Leg-Assy. 6-inch (Optional)

* Left or right hand is determined as you face the front of the freezer.

Hardware for 876 Series

Floor Model Panels

Panel Screw Nut-Speed Space

Front HC160048 HC160117 HC163103

Rear/Corners HC160048 HC160117 n/a

Side HC160028 HC160387 HC138455

Drip Tray HC160049 n/a HC163103

*N/A - Not Applicable

Panel Decals & Labels

Part No. Description

HC165025 Beater Warning

HC165065 Cleaning Instructions (876RH)

HC165091 Clear Overlay

HC165126 Panel Removal

HC165151 Trimstrip (876RH)

HC169052 Ventilation 3 in.
