184633-01 15

ELECTRO FREEZE Models 876, 876B, 876C, 876RH, 876BRH, 876CRH

Use only original or authorized replacement parts with this freezer.

Use of unapproved parts will void warranty.

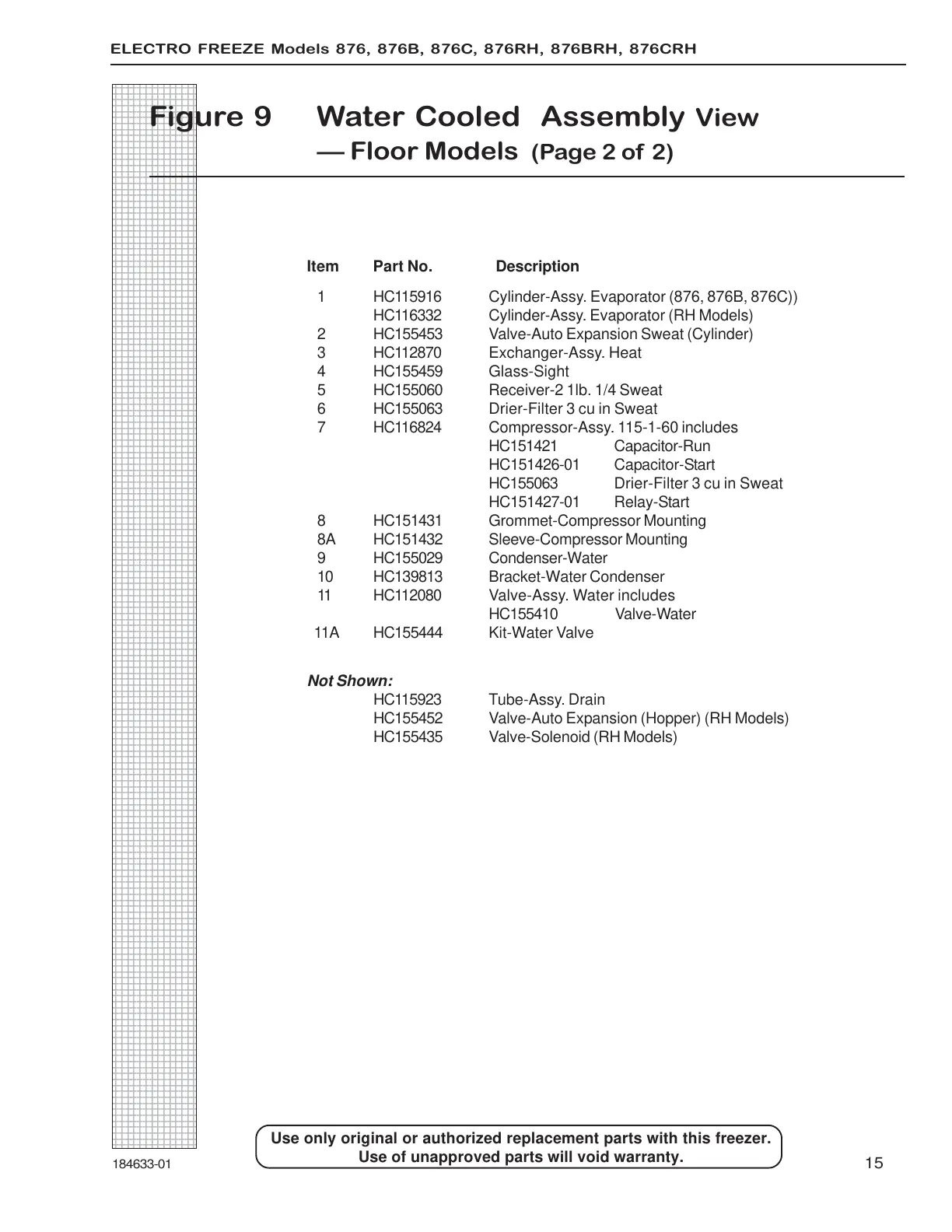

Figure 9 Water Cooled Assembly View

— Floor Models (Page 2 of 2)

Item Part No. Description

1 HC115916 Cylinder-Assy. Evaporator (876, 876B, 876C))

HC116332 Cylinder-Assy. Evaporator (RH Models)

2 HC155453 Valve-Auto Expansion Sweat (Cylinder)

3 HC112870 Exchanger-Assy. Heat

4 HC155459 Glass-Sight

5 HC155060 Receiver-2 1lb. 1/4 Sweat

6 HC155063 Drier-Filter 3 cu in Sweat

7 HC116824 Compressor-Assy. 115-1-60 includes

HC151421 Capacitor-Run

HC151426-01 Capacitor-Start

HC155063 Drier-Filter 3 cu in Sweat

HC151427-01 Relay-Start

8 HC151431 Grommet-Compressor Mounting

8A HC151432 Sleeve-Compressor Mounting

9 HC155029 Condenser-Water

10 HC139813 Bracket-Water Condenser

11 HC112080 Valve-Assy. Water includes

HC155410 Valve-Water

11A HC155444 Kit-Water Valve

Not Shown:

HC115923 Tube-Assy. Drain

HC155452 Valve-Auto Expansion (Hopper) (RH Models)

HC155435 Valve-Solenoid (RH Models)
