ELECTRO FREEZE Models 876, 876B, 876C, 876RH, 876BRH, 876CRH

Use only original or authorized replacement parts with this freezer.

Use of unapproved parts will void warranty.

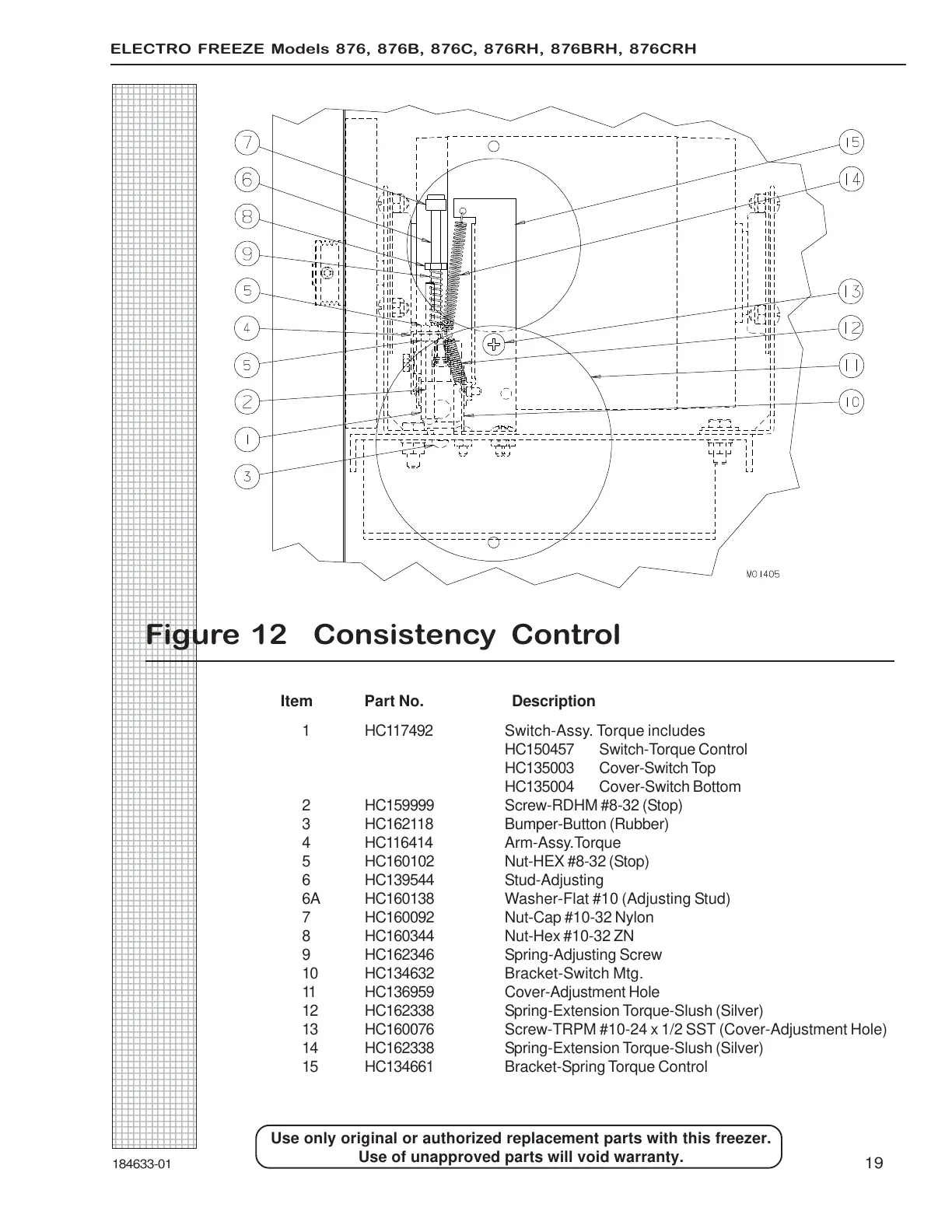

Figure 12 Consistency Control

Item Part No. Description

1 HC117492 Switch-Assy. Torque includes

HC150457 Switch-Torque Control

HC135003 Cover-Switch Top

HC135004 Cover-Switch Bottom

2 HC159999 Screw-RDHM #8-32 (Stop)

3 HC162118 Bumper-Button (Rubber)

4 HC116414 Arm-Assy.Torque

5 HC160102 Nut-HEX #8-32 (Stop)

6 HC139544 Stud-Adjusting

6A HC160138 Washer-Flat #10 (Adjusting Stud)

7 HC160092 Nut-Cap #10-32 Nylon

8 HC160344 Nut-Hex #10-32 ZN

9 HC162346 Spring-Adjusting Screw

10 HC134632 Bracket-Switch Mtg.

11 HC136959 Cover-Adjustment Hole

12 HC162338 Spring-Extension Torque-Slush (Silver)

13 HC160076 Screw-TRPM #10-24 x 1/2 SST (Cover-Adjustment Hole)

14 HC162338 Spring-Extension Torque-Slush (Silver)

15 HC134661 Bracket-Spring Torque Control
