ELECTRO FREEZE Models 876, 876B, 876C, 876RH, 876BRH, 876CRH

2 184633-01

Use only original or authorized replacement parts with this freezer.

Use of unapproved parts will void warranty.

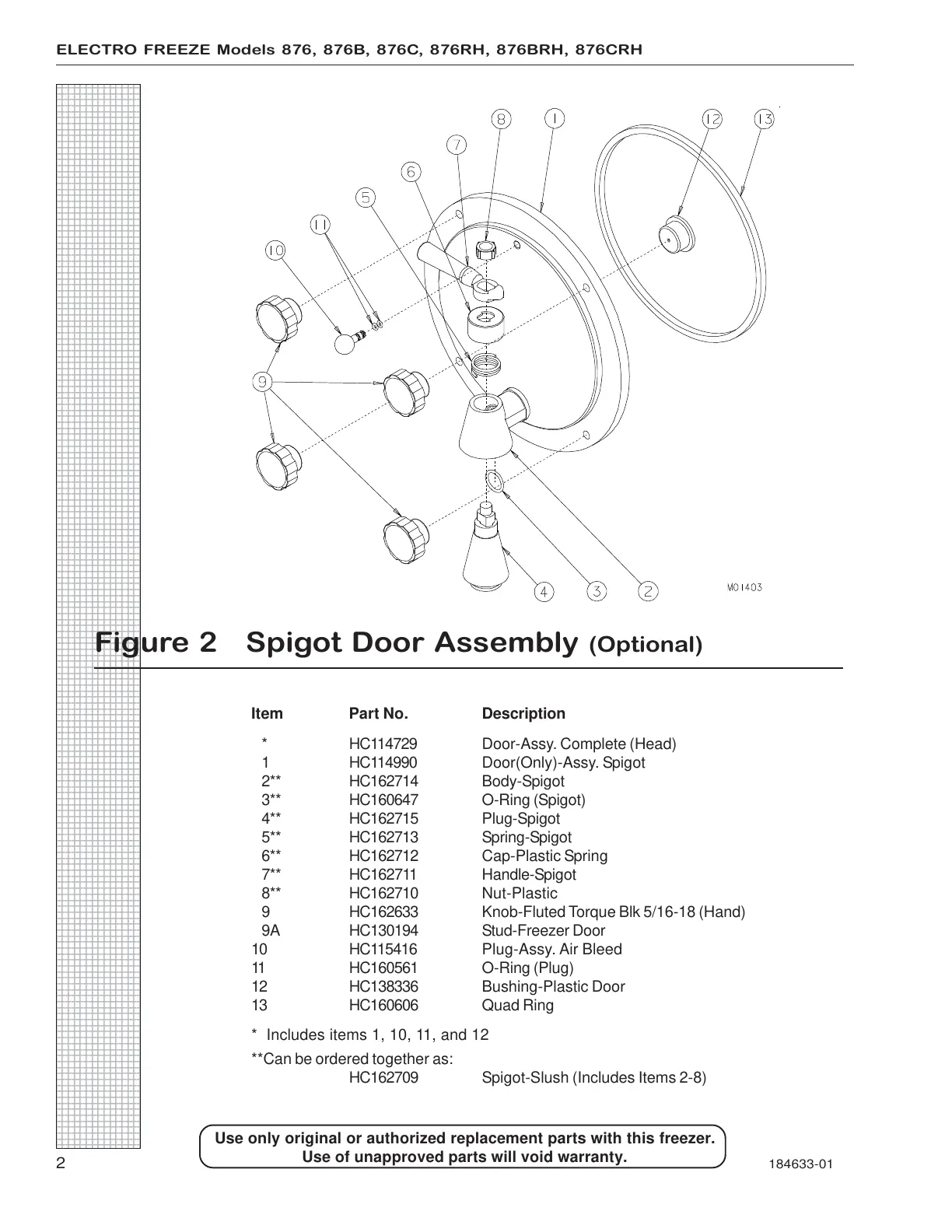

Figure 2 Spigot Door Assembly (Optional)

Item Part No. Description

* HC114729 Door-Assy. Complete (Head)

1 HC114990 Door(Only)-Assy. Spigot

2** HC162714 Body-Spigot

3** HC160647 O-Ring (Spigot)

4** HC162715 Plug-Spigot

5** HC162713 Spring-Spigot

6** HC162712 Cap-Plastic Spring

7** HC162711 Handle-Spigot

8** HC162710 Nut-Plastic

9 HC162633 Knob-Fluted Torque Blk 5/16-18 (Hand)

9A HC130194 Stud-Freezer Door

10 HC115416 Plug-Assy. Air Bleed

11 HC160561 O-Ring (Plug)

12 HC138336 Bushing-Plastic Door

13 HC160606 Quad Ring

* Includes items 1, 10, 11, and 12

**Can be ordered together as:

HC162709 Spigot-Slush (Includes Items 2-8)
