184633-01 1

ELECTRO FREEZE Models 876, 876B, 876C, 876RH, 876BRH, 876CRH

Use only original or authorized replacement parts with this freezer.

Use of unapproved parts will void warranty.

Item Part No. Description

* HC114700 Door (Head)-Assy. Complete

1 HC114989 Door (Head)-Assy. Pull Valve (Door Only)

2 HC162633 Knob-Fluted Torque Blk 5/16-18 (Hand)

2A HC130194 Stud-Freezer Door

3 HC160561 O-Ring (Plug)

4 HC115416 Plug-Assy. Air Bleed

5 HC139274 Nut-Piston Rod

6 HC162629 Knob-Ball 3/8-16 Thd Black

7 HC136249-01 Outlet-Valve

8 HC160582 O-Ring (Outlet-Valve)

9 HC162319 Spring-Pull Valve

10 HC136253 Piston-Valve

11 HC160582 O-Ring (Piston)

12 HC160610 O-Ring (Rod)

13 HC113999 Rod-Assy. Piston

14 HC160606 Quad Ring

15 HC138336 Bushing-Plastic Door

* Includes parts listed above except items 2, 2A and 14.

NUT

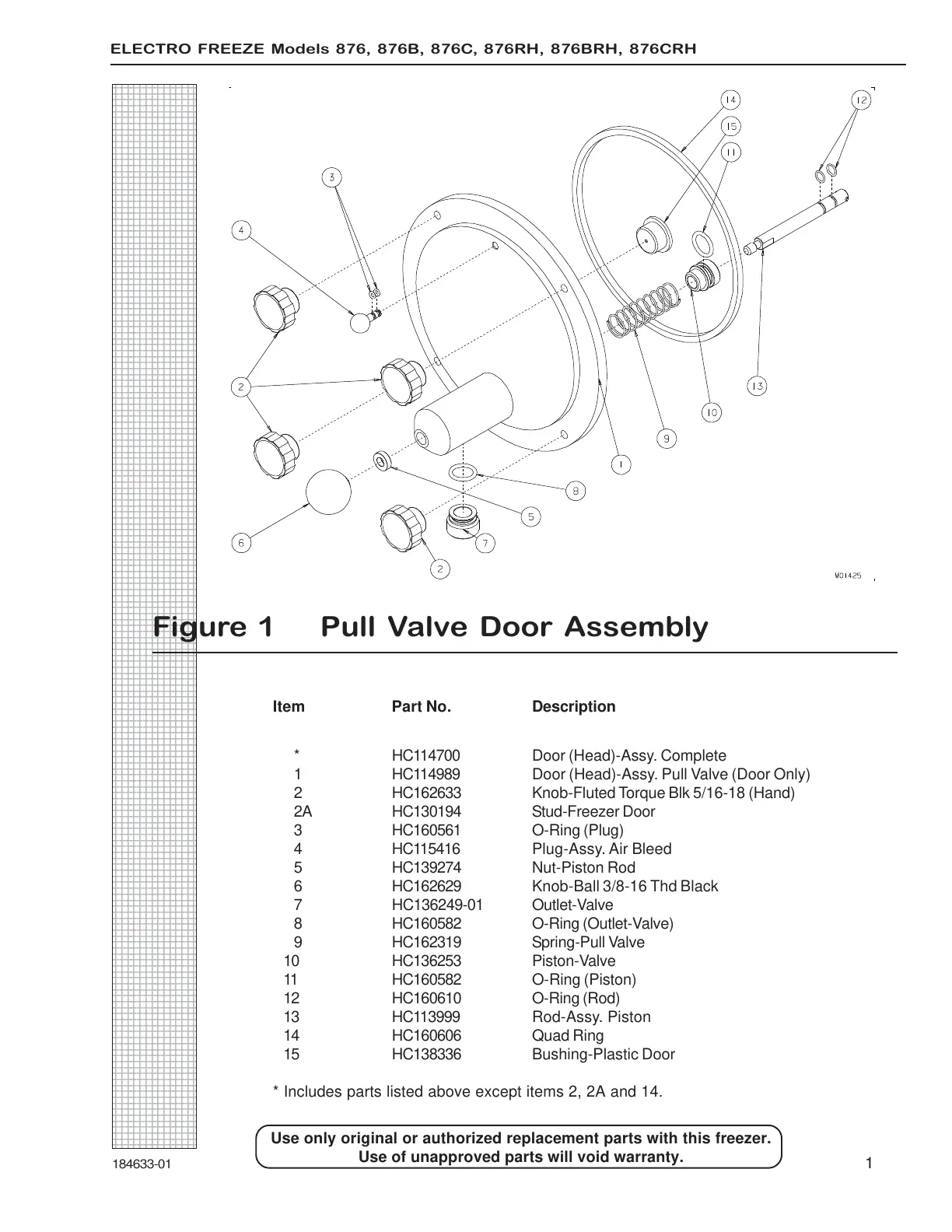

Figure 1 Pull Valve Door Assembly
