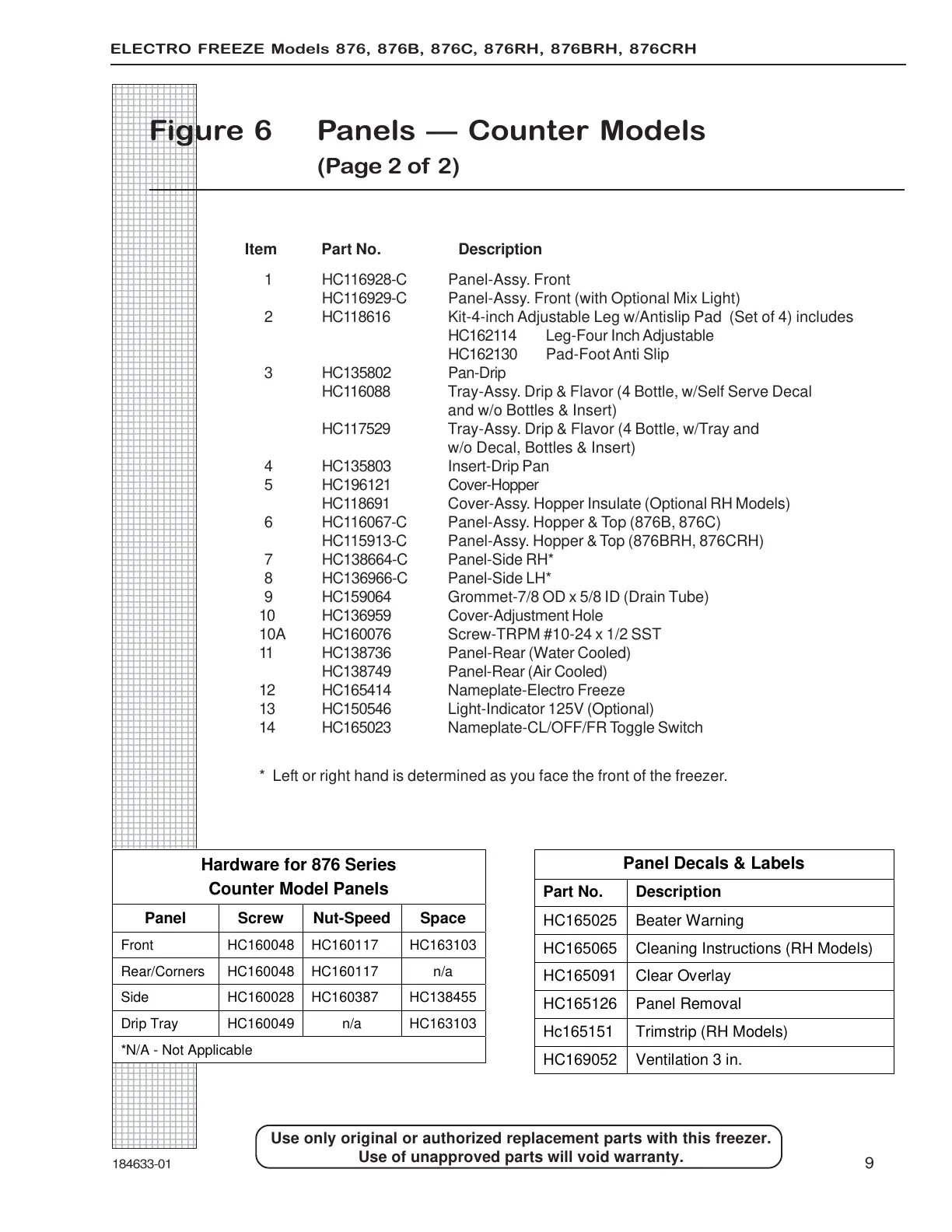

ELECTRO FREEZE Models 876, 876B, 876C, 876RH, 876BRH, 876CRH

Use only original or authorized replacement parts with this freezer.

Use of unapproved parts will void warranty.

Item Part No. Description

1 HC116928-C Panel-Assy. Front

HC116929-C Panel-Assy. Front (with Optional Mix Light)

2 HC118616 Kit-4-inch Adjustable Leg w/Antislip Pad (Set of 4) includes

HC162114 Leg-Four Inch Adjustable

HC162130 Pad-Foot Anti Slip

3 HC135802 Pan-Drip

HC116088 Tray-Assy. Drip & Flavor (4 Bottle, w/Self Serve Decal

and w/o Bottles & Insert)

HC117529 Tray-Assy. Drip & Flavor (4 Bottle, w/Tray and

w/o Decal, Bottles & Insert)

4 HC135803 Insert-Drip Pan

5 HC196121 Cover-Hopper

HC118691 Cover-Assy. Hopper Insulate (Optional RH Models)

6 HC116067-C Panel-Assy. Hopper & Top (876B, 876C)

HC115913-C Panel-Assy. Hopper & Top (876BRH, 876CRH)

7 HC138664-C Panel-Side RH*

8 HC136966-C Panel-Side LH*

9 HC159064 Grommet-7/8 OD x 5/8 ID (Drain Tube)

10 HC136959 Cover-Adjustment Hole

10A HC160076 Screw-TRPM #10-24 x 1/2 SST

11 HC138736 Panel-Rear (Water Cooled)

HC138749 Panel-Rear (Air Cooled)

12 HC165414 Nameplate-Electro Freeze

13 HC150546 Light-Indicator 125V (Optional)

14 HC165023 Nameplate-CL/OFF/FR Toggle Switch

* Left or right hand is determined as you face the front of the freezer.

Figure 6 Panels — Counter Models

(Page 2 of 2)

Hardware for 876 Series

Counter Model Panels

Panel Screw Nut-Speed Space

Front HC160048 HC160117 HC163103

Rear/Corners HC160048 HC160117 n/a

Side HC160028 HC160387 HC138455

Drip Tray HC160049 n/a HC163103

*N/A - Not Applicable

Panel Decals & Labels

Part No. Description

HC165025 Beater Warning

HC165065 Cleaning Instructions (RH Models)

HC165091 Clear Overlay

HC165126 Panel Removal

Hc165151 Trimstrip (RH Models)

HC169052 Ventilation 3 in.
