184633-01 21

ELECTRO FREEZE Models 876, 876B, 876C, 876RH, 876BRH, 876CRH

Use only original or authorized replacement parts with this freezer.

Use of unapproved parts will void warranty.

Item Part No. Description

1 HC153139 Belt-Poly V (Counter)

HC153125 Belt-Poly V (Floor)

2 HC116585* Kit-FE Slush Motor Replacement (Counter)

or HC116584* Kit-FE Slush Motor Replacement (Floor)

3 HC153610 Flywheel-Driver Sheave

4 HC160495 Screw-SK Set

5 HC115790 Bearing-Assy. Retainer (Front) includes

HC153027 Bearing-Motor Mount

HC134659 Bracket-Motor Mount

5A HC115791 Bearing-Assy. Retainer (Rear) includes

HC153027 Bearing-Motor Mount

HC134904 Bracket-Motor Mount

6 HC150705 Connector-3/8 x 90°

6A HC150665 Conduit-1/2 Thinwall Extraflex

7 HC160130 Washer-Flat 1/4 ZN

8 HC138717 Plate-Motor

9 HC159220 Nut-Lock 5/16-18 ZN

10 HC199012 Washer-Rubber

11 HC162562 Spacer-Rubber

12 HC160131 Washer-Flat 5/16 ZN

13 HC160009 Screw-HXHC 5/16-18 x 1 ZN

14 HC160021 Screw-HXHC 1/4–20 x 3/4 ZN

15 HC160104 Nut-Hex 1/4–20 ZN

16 HC160141 Washer-Lock 1/4 ZN

17 HC160049 Screw-TRPM #8-32 x 1/ SST

18 HC160102 Nut-HEX #8-32 ZN

19 HC134661 Bracket-Spring Torque

20 HC162338 Spring-Extension Torque

21 HC162341 Spring-Extension Hi Torque

22 HC160156 Screw-TRHM #6-32 x 1-1/4 SST

23 HC160138 Washer-Flat #10 ZN

24 HC160309 Nut-Hex #6-32 ZN

25 HC160092 Nut-Cap #10-32 Nylon

26 HC139544 Stud-Adjusting

27 HC160344 Nut-Hex #10-32 ZN

28 HC162346 Spring-Adjusting Screw

29 HC159999 Screw-RDHM #8-32 x 3/4 ZN

30 HC116414 Arm-Assy. Torque

31 HC134632 Bracket-Switch Mounting

32 HC117492 Switch-Assy Torque includes

HC135004 Cover-Switch Bottom

HC135003 Cover-Switch Top

HC150457 Switch-Torque Control

33 HC160105 Nut-Motor Assembly 5/16-18 ZN

34 HC160036 Screw-HXHC 5/16-18 x 3-1/2

* Includes Motor & Bearing Assembly, Circuit Breaker, and Reset Button Seal.

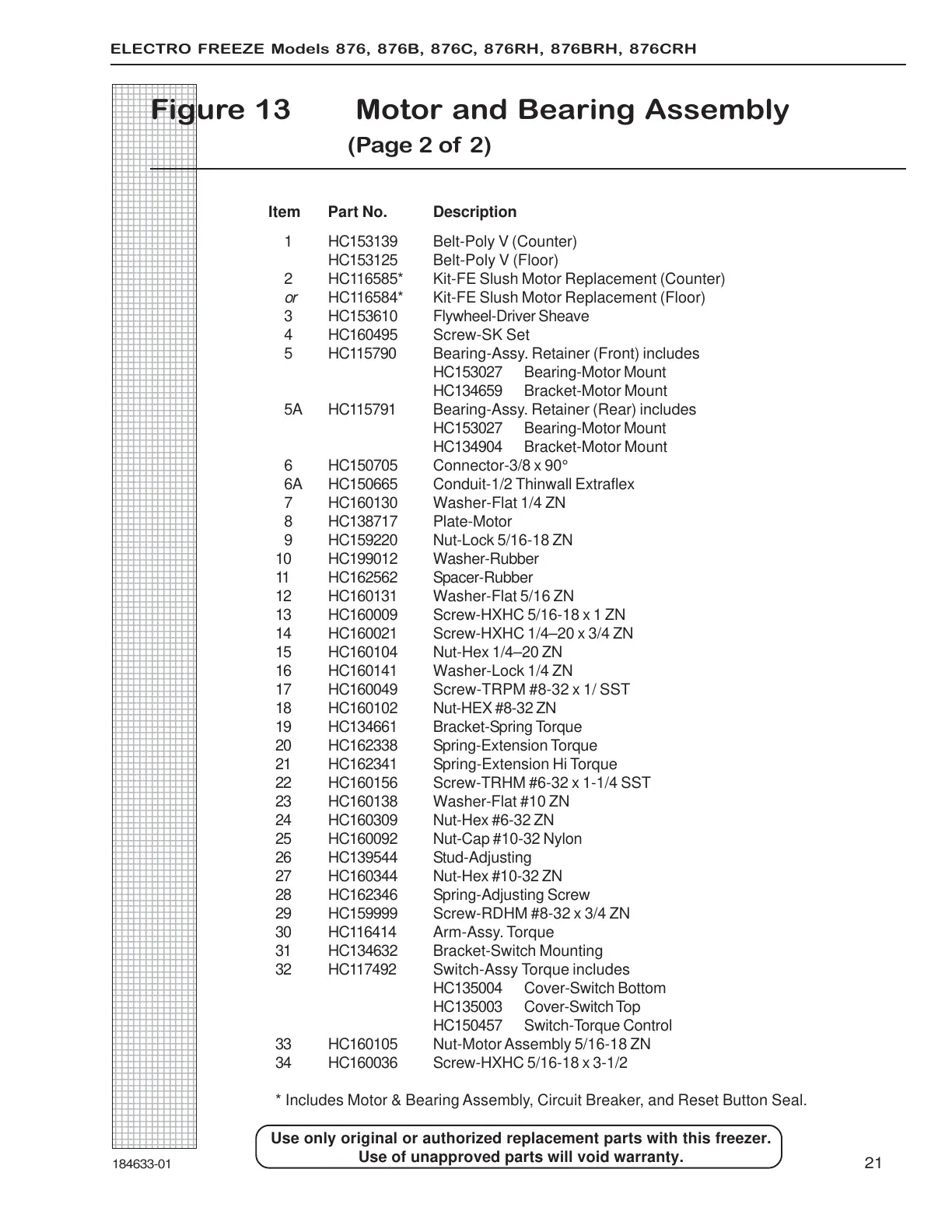

Figure 13 Motor and Bearing Assembly

(Page 2 of 2)
