Electro-Voice Precision P1200RL - Status and Remote Control Features; Power Amplifier Outputs

8

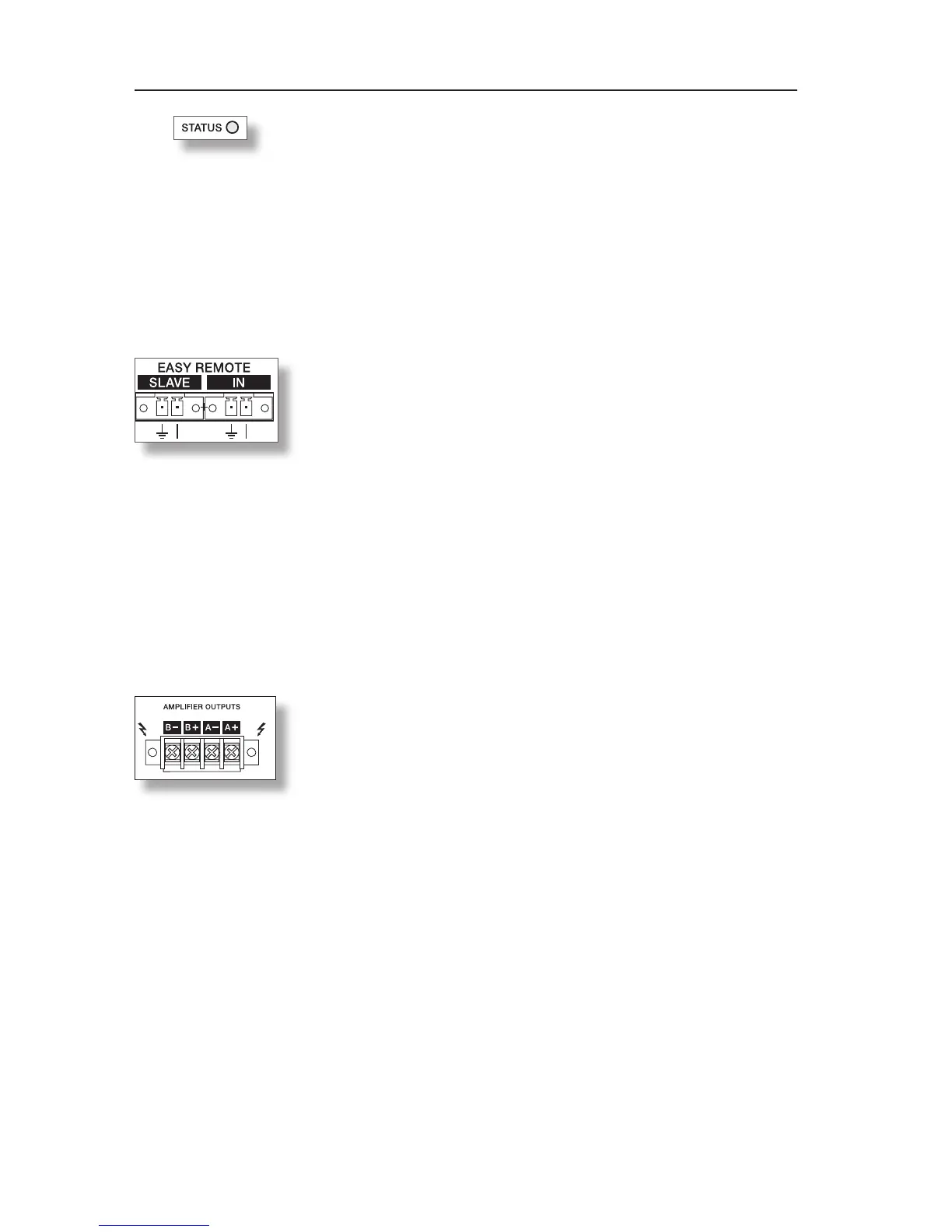

EASY REMOTE
Easy Remote provides a simple way to remotely power-on/off the power
amplier. The Easy Remote function is only useful for appliances not
employing a RCM-24 Module. Controlling appliances with RCM-24 Module
installed per Easy Remote is practically pointless.
EASY REMOTE IN
Leaving the pins of the EASY REMOTE IN socket open, i.e. when connecting +5V, the appliance power
is switched on. When connecting the EASY REMOTE IN, i.e. when feeding 0V from the control output,
the appliance enters standby mode.
EASY REMOTE SLAVE
The EASY REMOTE SLAVE connector provides connection for additional appliances with Easy-Remote
function (e.g. for switching several devices within a rack-shelf ON/OFF).
The switching of the slave-units is delayed to prevent the mains fuses from blowing.
POWER AMPLIFIER OUTPUTS
REAR VIEW
The STATUS LED provides optical indication of CAN-bus trafc. When the
power amplier’s address is set to “00” so that it is separated from the CAN-
bus, the STATUS LED blinks every 3 seconds.
As soon as CAN-bus communication is recognized, the LED is activated
for at least 100ms whenever the power amplier actively sends data on the
CAN-bus.
The STATUS LED may also be activated from the PC. In this case, the LED
of the according power amplier blinks fast and steady while all other status-
LEDs within the system stay dimmed.
4-pole binding-post terminals are provided for the power amplier channels „A“
and „B“. Two integrated audio output transformers convert the power amp’s
nominal output voltage to 100V or 70V respectively. Depending on the con-
guration, the corresponding output voltage is present at the oating output
terminals.
The maximum amount of connected loudspeaker systems is reached when the
loudspeaker network’s total power consumption equals the power amplier’s
nominal output capacity, without exceeding the power amp’s nominal load impedance.
For further information on nominal output capacity and nominal load impedance, please refer to the
“SPECIFICATIONS”.
Caution: During operation the binding-post terminals might carry high voltages. Therefore, installing
the loudspeaker network has to be in accordance with applicable safety regulations.
Installation has to be carried out by accordingly trained professionals only.
When installing and operating 100V PA-systems obeying the VDE-regulation DIN VDE
0800 is mandatory.
Especially when 100V alarm PA-system installations are concerned, safety measures have
to be in accordance with rating class 3. Before operating the power amplier closing the
coverlid attached to the terminal strip is mandatory.
