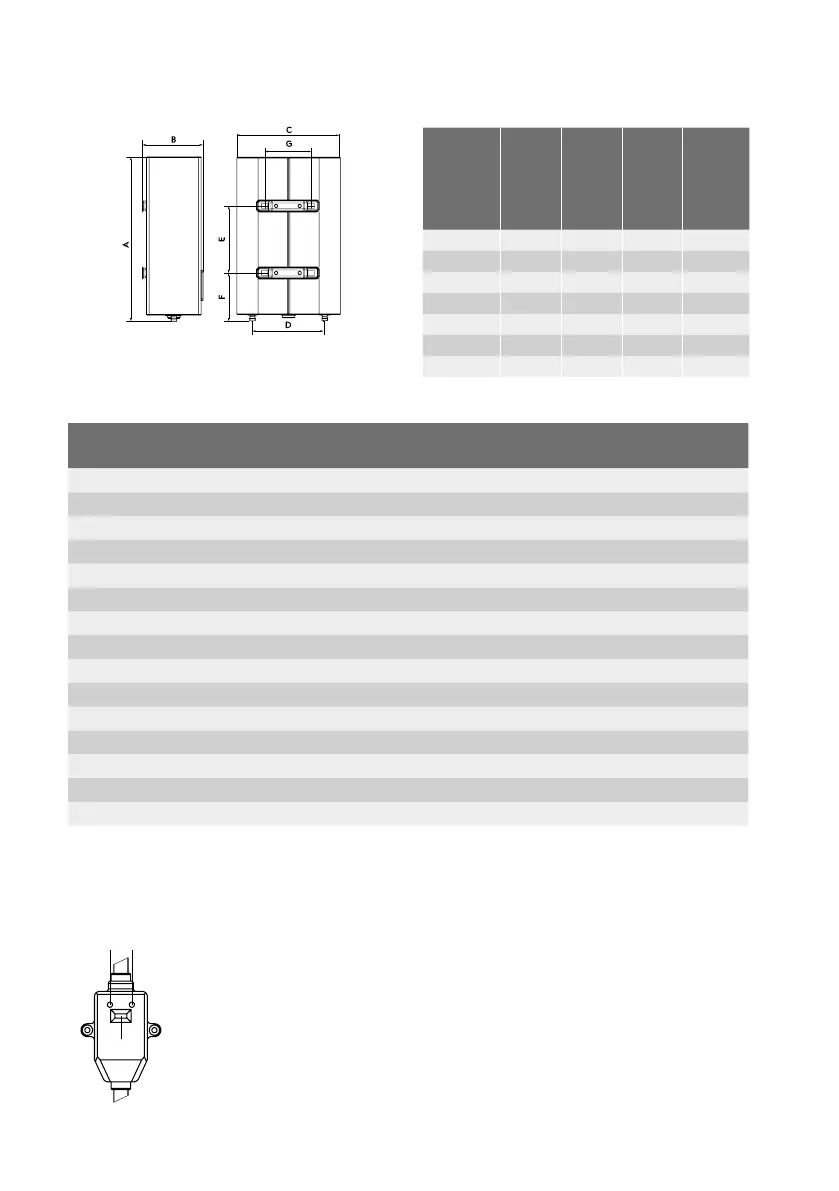

Installation dimensions and
dimensions
Fig. 7
Options/
Model
EWH 30 SI EEC/
EWH 30 SI BE EEC/
EWH 30 SI SE EEC
EWH 50 SI EEC/
EWH 50 SI BE EEC/
EWH 50 SI SE EEC
EWH 80 SI EEC/
EWH 80 SI BE EEC/
EWH 80 SI SE EEC
EWH 100 SI EEC/
EWH 100 SI BE EEC/
EWH 100 SI SE EEC
A, mm 635 970 920 1135
B, mm 250 250 333 333
C, mm 435 435 555 555
D, mm 360 360 430 430
E, mm 280 550 430 600
F, mm 201 201 267 267
G, mm 197 197 197 197
Specifications
Options/Model
EWH 30 SI EEC/
EWH 30 SI BE EEC/
EWH 30 SI SE EEC
EWH 50 SI EEC/
EWH 50 SI BE EEC/
EWH 50 SI SE EEC
EWH 80 SI EEC/
EWH 80 SI BE EEC/
EWH 80 SI SE EEC
EWH 100 SI EEC/
EWH 100 SI BE EEC/
EWH 100 SI SE EEC
Nominal (usable) volume, l 25 41 65 81
Rated power, W 700/1300/2000
Nominal voltage, V~Hz 230~50
Rated current, A 8,7
Minimum water pressure, bar 80 000 (0,8)
Maximum water pressure, bar* 600 000 (6)
Maximum water temperature, °C 75
Heating time from 10 to 75 °C**, min. 99 162 256 316
Protection against electric shock I
Moisture protection IPX4
Energy efficiency class*** A B B B
Device dimensions (W×H×D), mm 435×635×260 435×970×260 555×920×350 555×1135×350
Package dimensions (W×H×D), mm 680×485×280 1010×485×280 970×605×362 1185×605×362
Net weight, kg 15,3 22,6 29,0 33,5
Gross weight, kg 17,0 25,0 32,6 37, 0
* At the maximum pressure, the excess pressure is released through the pressure relief valve. If the water mains pressure exceeds 6 bar (nominal working pressure), a pressure
reducing valve must be installed.
** Heating times are given at full heating power and are based on ideal ambient conditions.
*** Energy efficiency calculated for vertical installation.
The manufacturer reserves the right to make changes.
ENGLISH
RCD (Ground Fault Interrupter)
• 100% prevention of electric shock.
• Follow the installation instructions when connecting the electric water
heater household battery heater.
• The Power indicator (1) will light up if the RCD is not activated.
• Press the TEST button (2) to test the RCD.
Power indicator (1) will be disabled.
• Press button (3) to reset the RCD.
Fig. 8
1 2
3
