SOI 04.05 FV 16/57 599 36 62-62

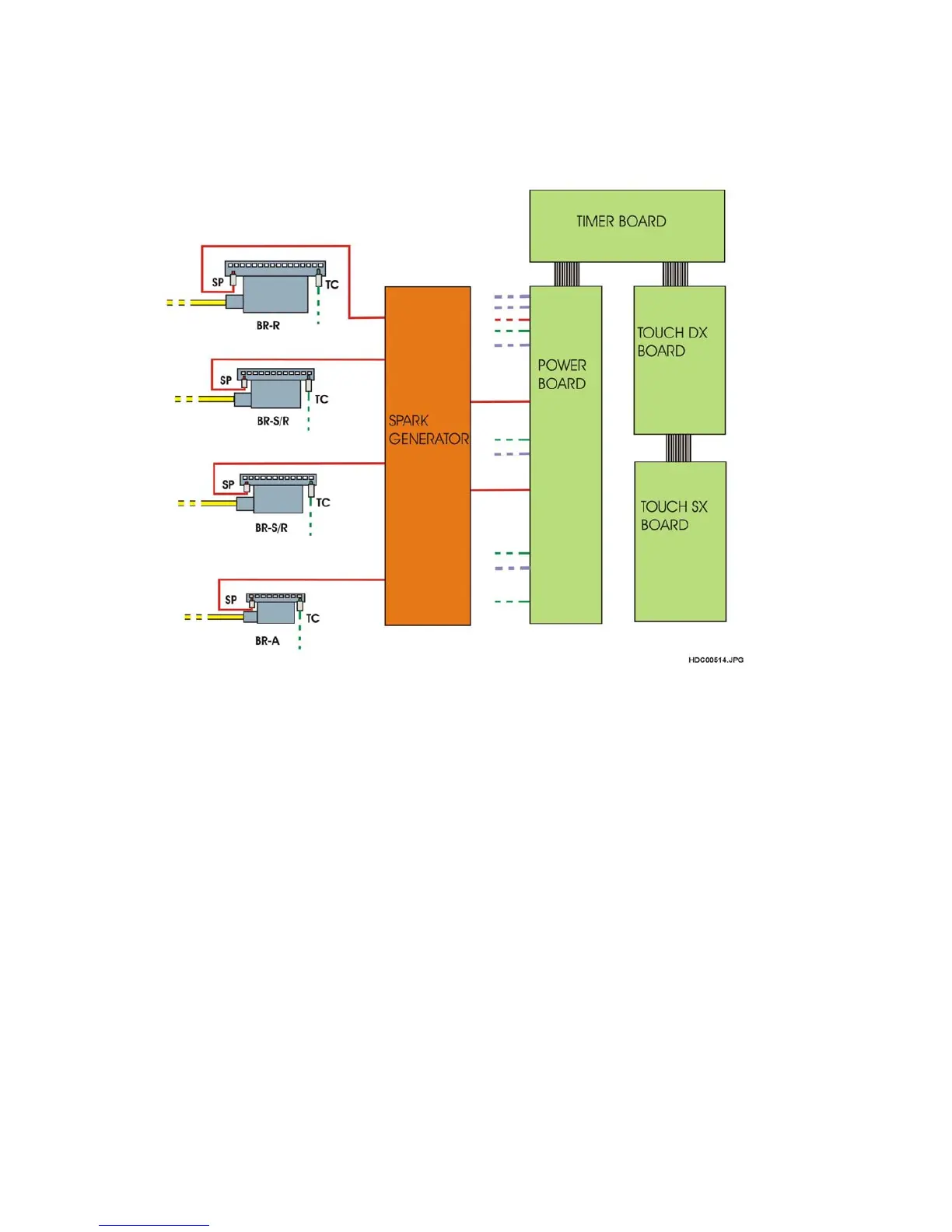

IGNITION CIRCUIT - BASIC DIAGRAM
Lighting of the burners is performed by the spark plugs, which are powered by a single spark
generator actioned by the power board.
Fig. 7
SP - SPARK PLUG
TC - THERMOCOUPLE
BR-R - RAPID BURNER
BR-S/R - SEMI-RAPID BURNER
BR-A - AUXILIARY BURNER
POWER BOARD - POWER BOARD
TIMER BOARD - MAIN TOUCH-CONTROL INTERFACE BOARD
TOUCH DX BOARD - RH TOUCH-CONTROL INTERFACE BOARD
TOUCH SX BOARD - LH TOUCH-CONTROL INTERFACE BOARD
