SOI 04.05 FV 54/57 599 36 62-62
9.4.7 REPLACEMENT OF IGNITION SPARK PLUGS
To replace the spark plugs:
- Detach the connection terminal relative to the spark plug.
- Detach the spark plug removing the fixing spring placed in the lower side part of the burner.

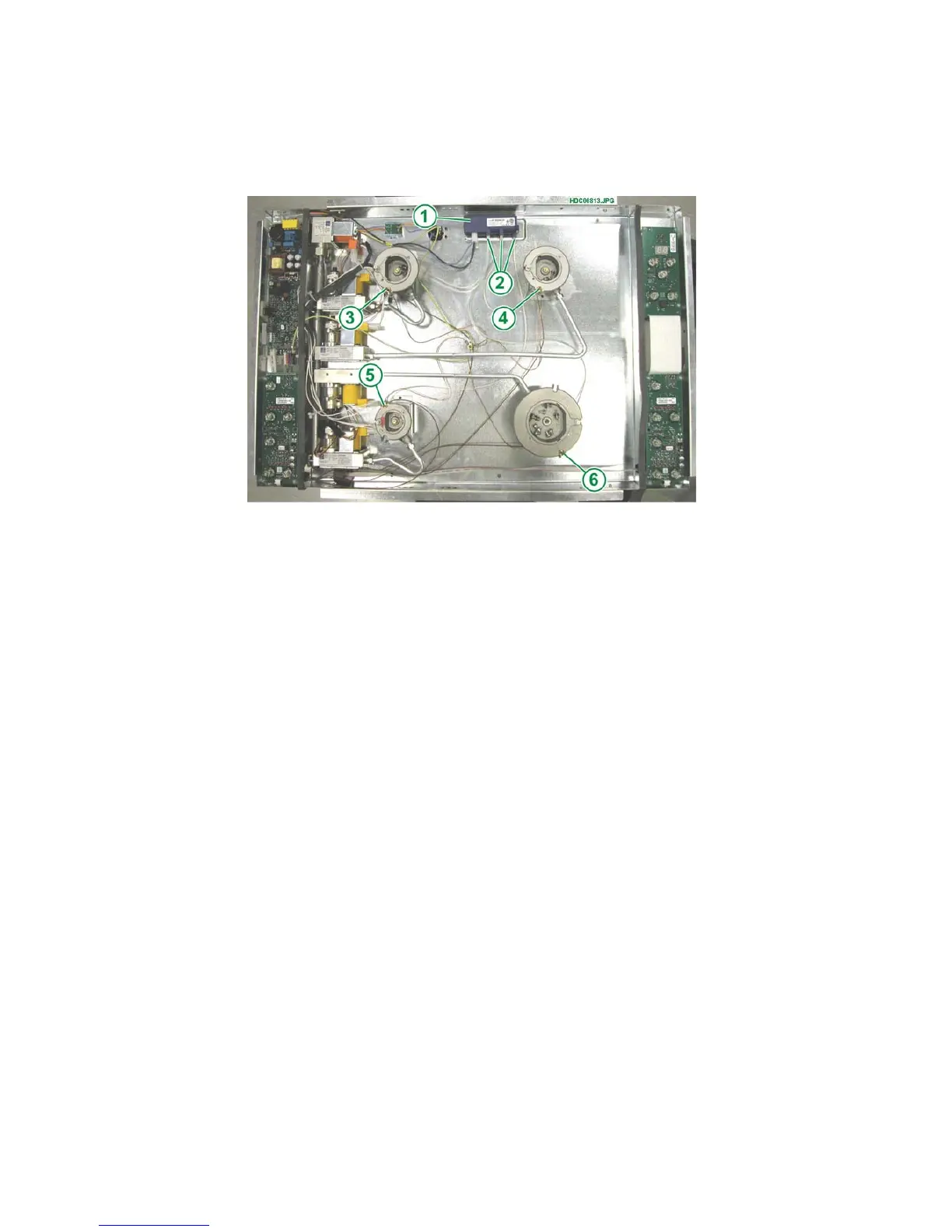

Fig. 63
1 - IGNITER.
2 - SPARK PLUG CONNECTION TERMINAL.
3 - LEFT REAR BURNER SPARK PLUG.
4 - RIGHT REAR BURNER SPARK PLUG.
5 - LEFT FRONT BURNER SPARK PLUG.
6 - RIGHT FRONT BURNER SPARK PLUG.
