9. ACCESSIBILITY

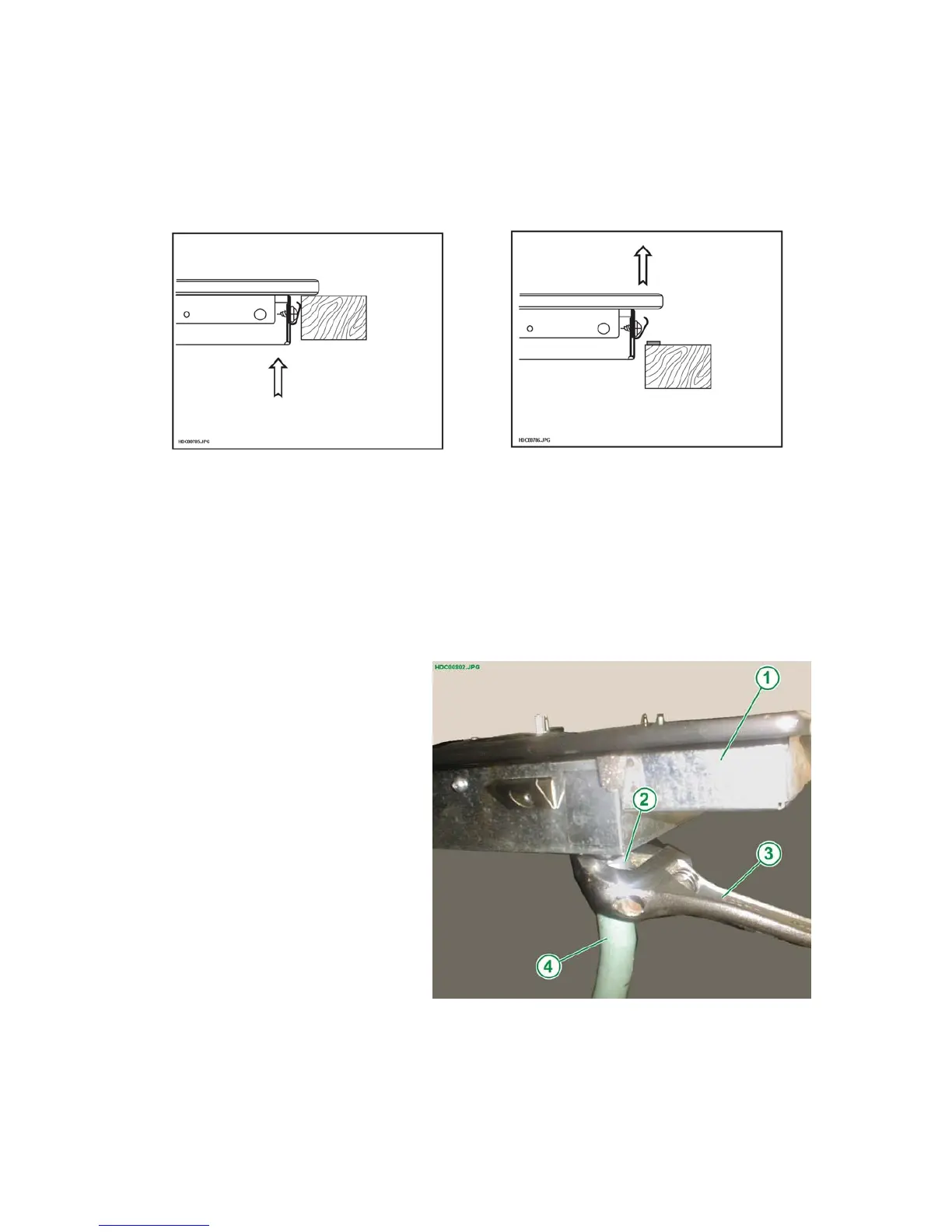

9.1 REMOVAL OF TOP FROM THE CABINET
To remove the top from the cabinet, move the top from the lower part.
Fig. 41 Fig. 42
9.2 REMOVAL OF GAS SUPPLY CONNECTION
After closing the gas supply, switched off the power supply, remove the top and positioned the top
so as to access the gas connection easily (Ex.: by using wood trims to keep the top raised) detach
the gas delivery pipe (see Fig. 42).
Fig. 43
1 - TOP CASING
2 - 24 mm SPANNER
3 - GAS CONNECTION NUT
4 - GAS DELIVERY PIPE
