Electrolux TT300 - Installation Dimension Specifications; Dimensional Diagrams and Tables

Installation - electric, steam and gas heating
487 18 39 01 - 300/500/750 - GB
27

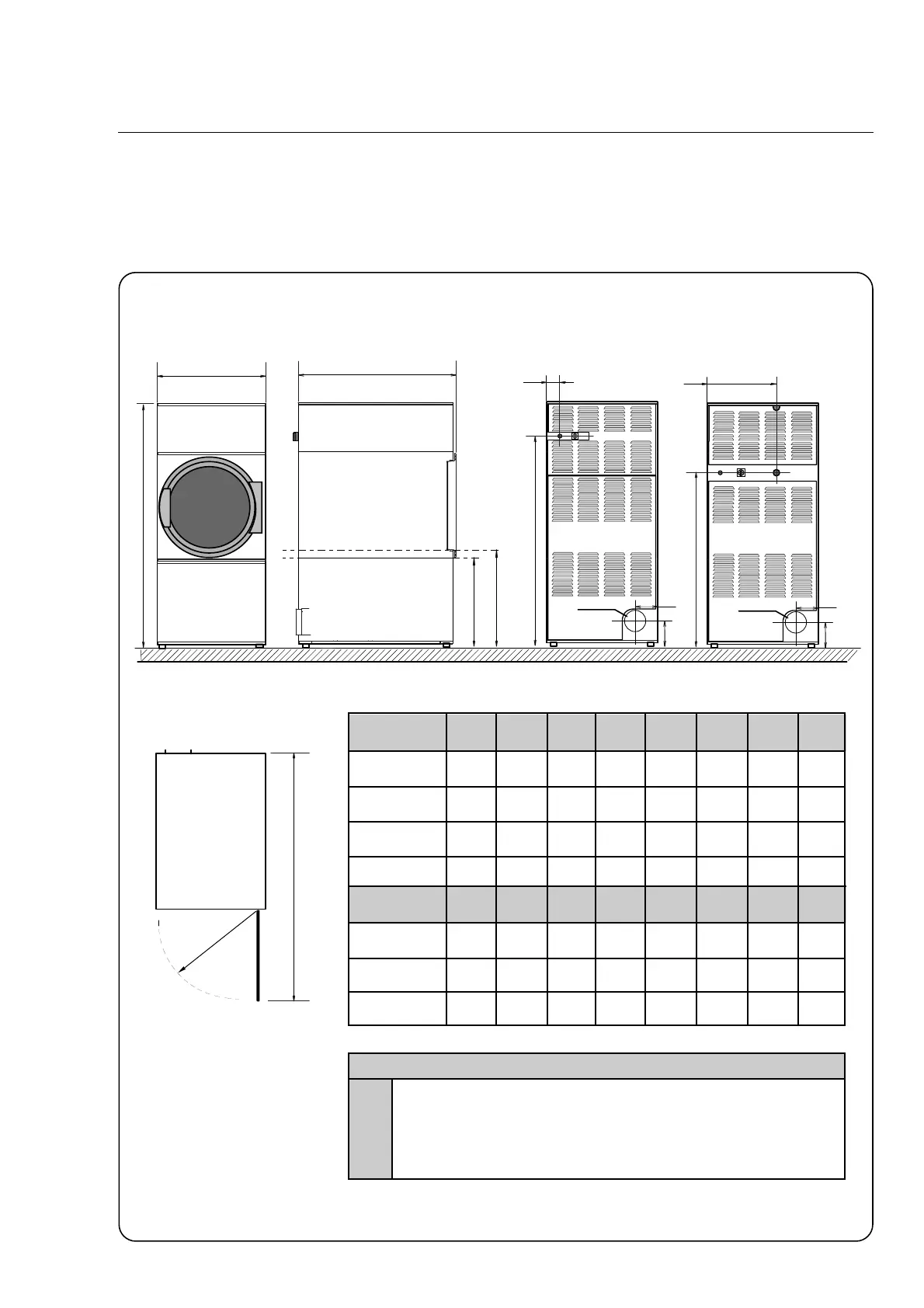

Dimension sketch
Ø 200
G
I
L
H
Ø 200
I
F
H
A
C
B
D E
J
K
M
Electric- and gas
heating
Steam heating
D Door opening
G Steam connection
F/M Electric and gas connections
L Electric and steam connections
300/30 500/50 - 750/75/650
Ø 580 Ø 810
A B C D E F G H
300/30 710 1120 1880 780 725 1610 470 135
500/50 960 1180 1995 720 650 1725 595 155
750/75/650 960 1370 1995 720 650 1725 595 155
I J K L M N O P
300/30 170 710 1810 1380 250
500/50 225 960 2120 1510 270
750/75/650 225 960 2300 1510 270
