10

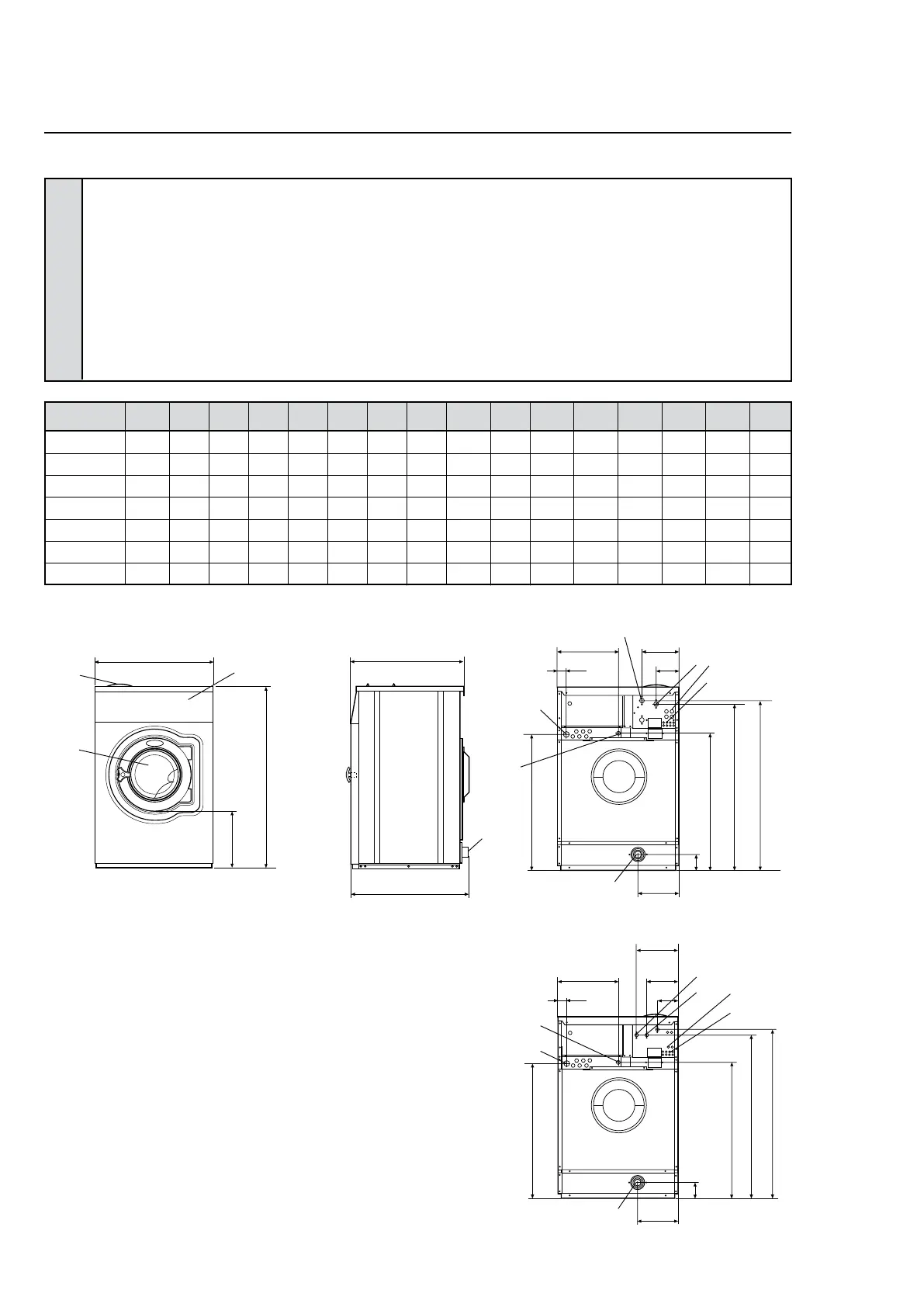

Technical data
A B C D E F G H I K L M N O P R
W475N/S 660 690 1115 355 725 825 45 1030 215 1010 130 830 385 - 100 225
W485N/S 660 730 1115 355 765 825 45 1030 215 1010 130 830 385 - 100 225
W4105N/S 720 705 1200 365 740 910 45 1115 215 1095 130 910 420 - 100 235
W4130N/S 720 790 1200 365 825 910 45 1115 215 1095 130 910 420 - 100 235
W4180N/S 750 880 1333 435 915 1035 45 1245 130 1225 210 1040 325 295 100 225
W4250N/S 830 955 1410 470 990 1120 45 1330 160 1290 245 1125 325 325 100 265
W4330N/S 910 1040 1445 500 1075 1155 45 1365 160 1325 245 1155 280 325 100 210
8
7
C
D
A
10
5281
B
E
5
5282
N
G
I
F
L
R
P
H
M
K
5
4
1
3
2
6
5283
9
W475N/S-W4130N/S
M
P
F
K
I
L
G
R
H
O
N
4
1
5
3
2
9
6
5459
W4180N/S-W4330N/S
Rear side
1 Electrical connection
2 Cold water
3 Hot water
4 Steam connection
5 Drain
6 Liquid detergent supply
7 Control panel
8 Soap box
9 Water reuse
10 Door opening, W475N/S, W485N/S: ø310, W4105N/S, W4130N/S: ø365, W4180N/S: ø395,
W4250N/S, W4330N/S: ø435
Front
Right side
Rear side
