Electrolux W475 - Description; Drain Valve

91
5467
1
6562
Drain valve
Description
The drain valve is situated on a flange at the bot-
tomoftheouterdrumandcanbeaccessedfrom
thefrontafterremovingthefrontcover.
Thedrainvalveconsistsofthefollowingprincipal
parts:
• Lowerpartwithrubberdiaphragm.
• Pistonandcylinder.
• Pressureplateandrecoilsprings.
• Rubberdiaphragmwithdrainconnection.
• Upperpartwithconnectionforouterdrum.

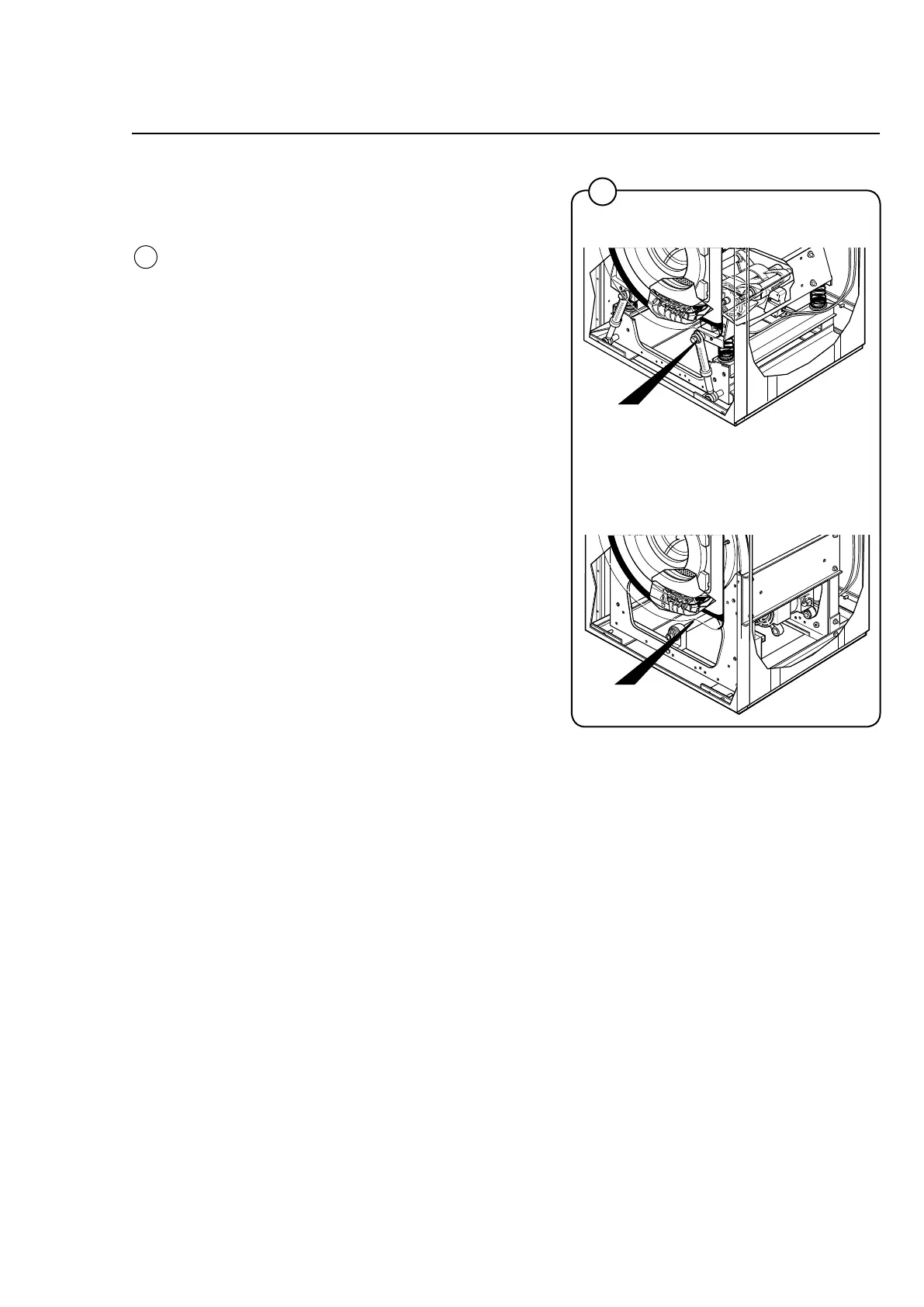

1
Drain valve
Drainvalve
Drainvalve
H – model
S och N – model
