Electricalconnection
8.4FunctionsforI/O-cards

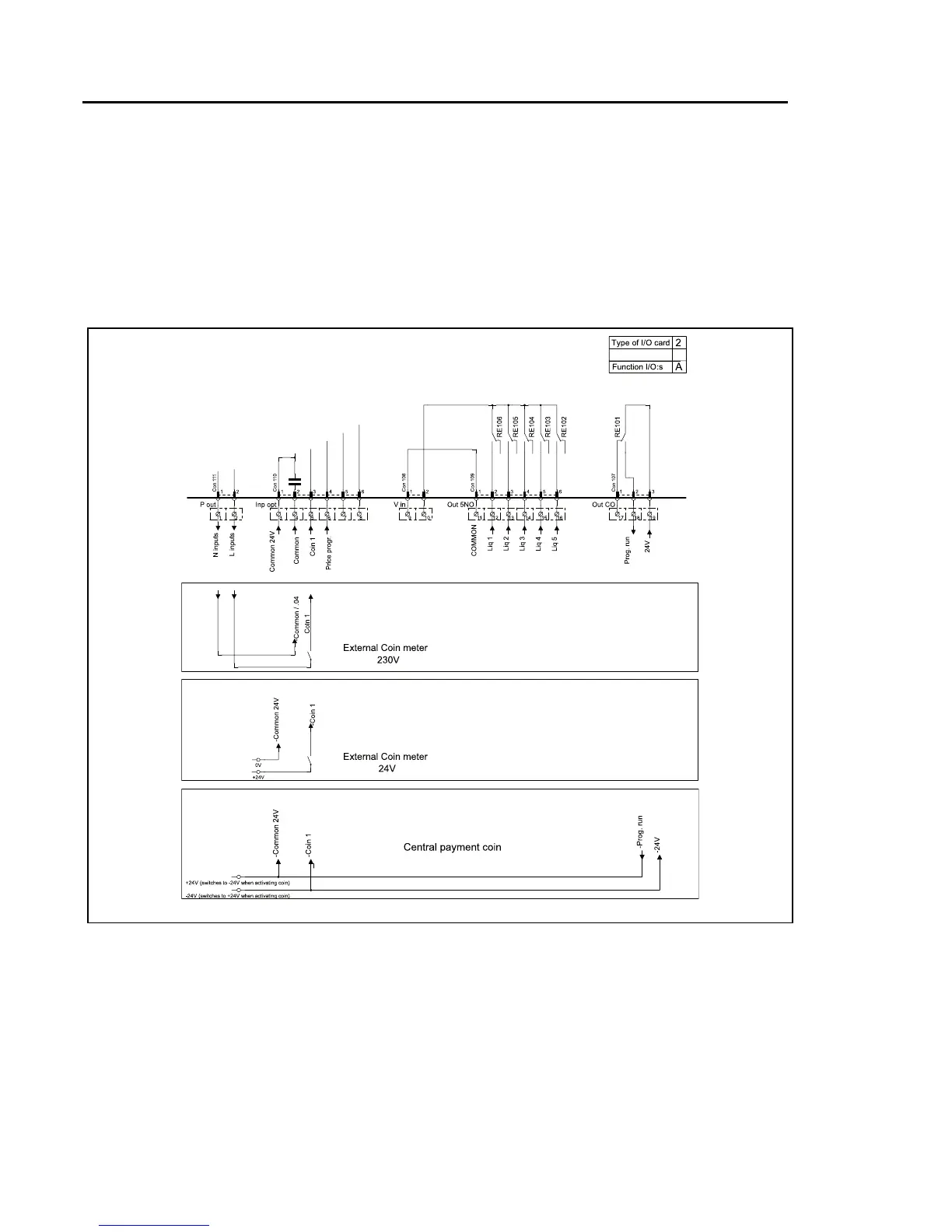

Theelectricalschematiccanbeoneofthefollowing:
8.4.1Externalcoinmeter/Centralpayment(2A)
Thesignalreceivedfromexternalcoinmetersmustbeapulsebetween300–3000ms(500msis
recommended)withaminimumpauseof300ms(500msisrecommended)betweentwopulses.
