Electrolux W575N - Casting a Plinth

Setup
15
3.3.1Castingaplinth
Aplinthshouldbeusedwheretheexistingoorislessthan100mmthickorinordertoensurethat
themachineisabovethelevelofanywaterleakages.
Theplinthshouldbeapproximately150-200mminheight.

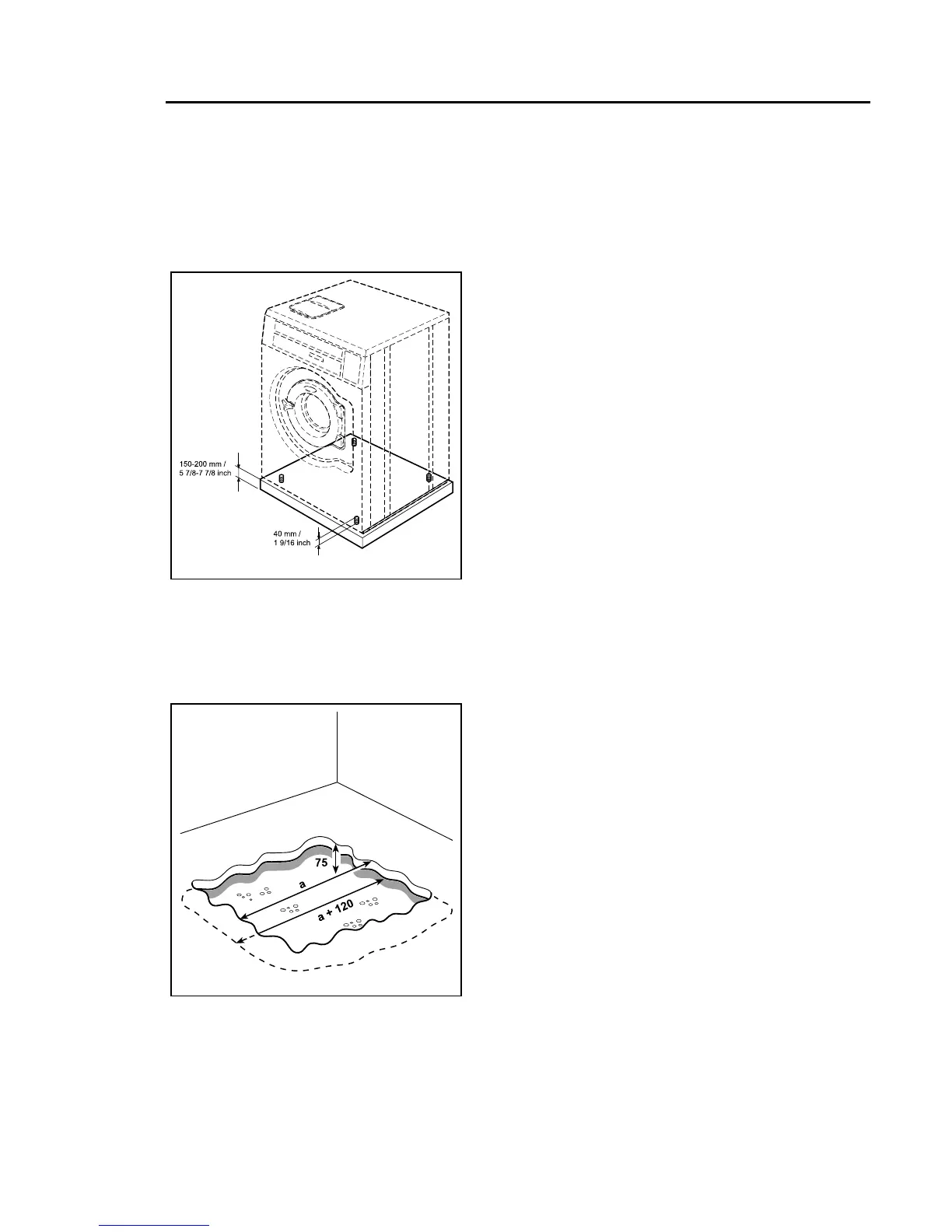

⑤
150-200 mm /
5 7/8-7 7/8 inch
40 mm /
1 9/16 inch
g.5462
Proceedasfollows:
•Breakuptheexistingoortoadepthofapprox.75mmandcheckthatthesidesoftheholeare
taperedoutwardsothatthelongestsideatthebottommeasures120mmmorethanatthetop.
⑥
75
a
a + 120
g.0899
•Makethemouldfortheplinth.
•Moistentheholewellandapplycementtothesidesandbottom.
•4boltsmustbesetintotheconcreteofthemachinebase.Theboltsneedtoproject40mmout
ofthebase.Pourtheconcreteintothepreparedbasemouldandmakesurethatthesurfaceis
level.Checktheprevioustableforthecorrectpositionofthebolts.
•Theconcreteshouldbelefttosetforatleasttwodaysbeforemountingthemachineontheplinth.
