Electricalconnection
8.4.3Centralpayment(2C)
Thecentralpaymentorbookingsystemshalltransmitanactive(high)signaltothemachineonce
permissionhasbeengrantedtostartthemachine.Thesignalmustremainactive(high)untilthe
machinestarts.Afeedbacksignalwillbepresentonconnection18andremainactive(high)whilst
themachinedoorisclosedbuttheprogramhasnotstarted.Thefeedbacksignalispowered
by230Vor24Vfromconnection19.
23

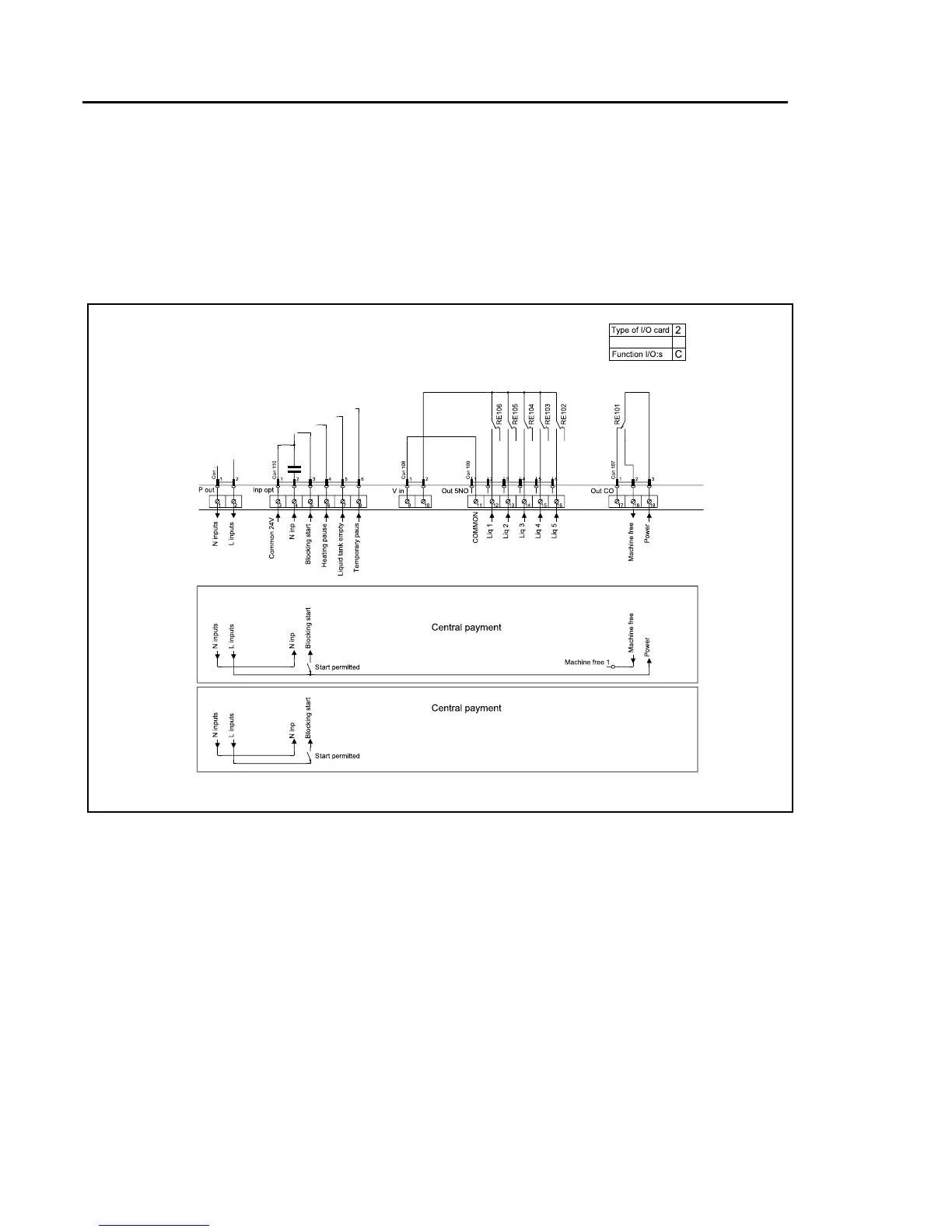

g.6313A
