WIRING – FLUE TEMPERATURE LIMITING
DEVICE
The flue temperature limiting device is inbuilt into the
extension wiring and the flue adapter.
The connection directly connects to the loom from the
appliance. The other end directly connects to the fan
module.
Connections are not interchangeable.
The temperature limiting is preset and does not require
adjustment.

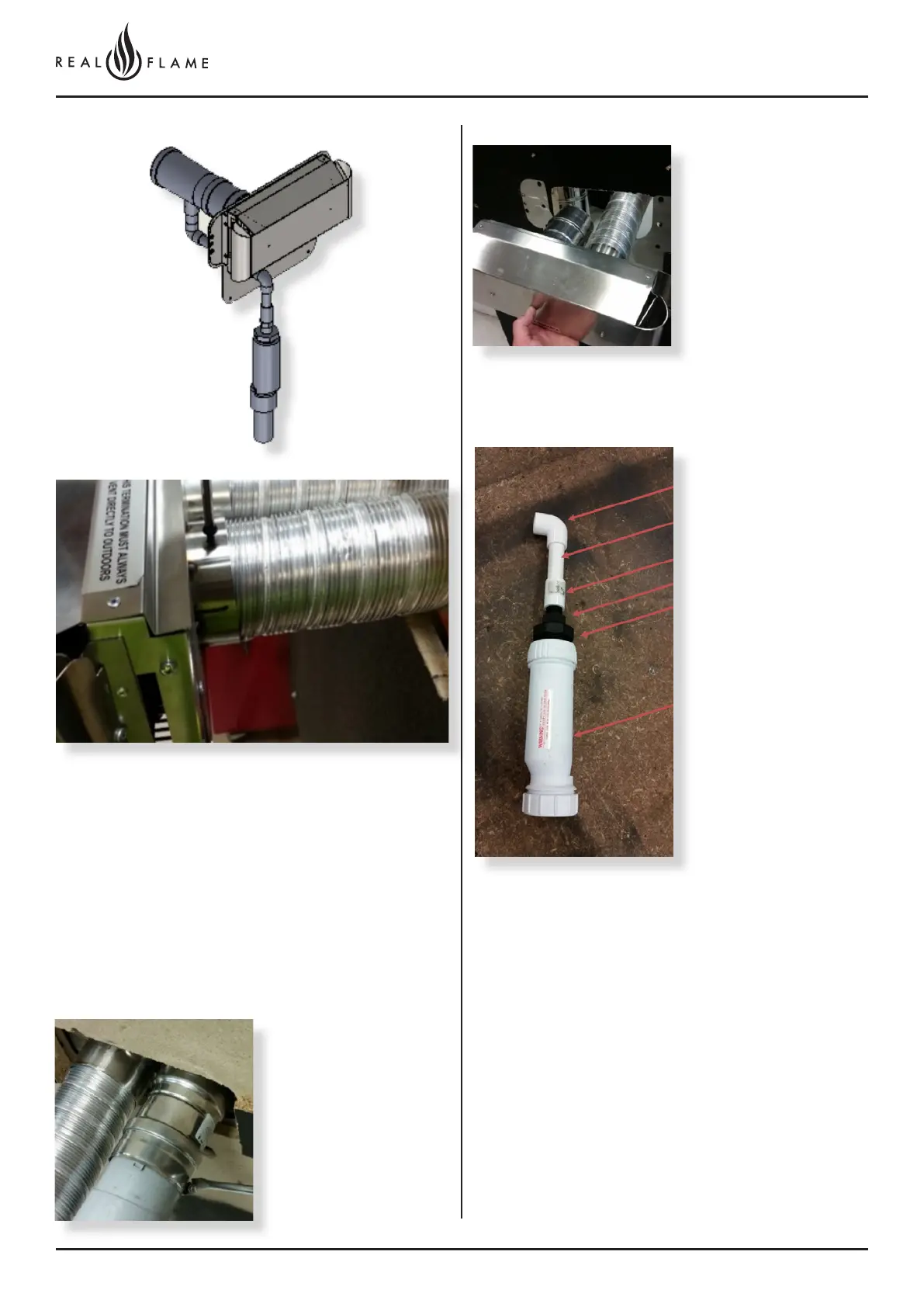

Assemble condensate
drain and attach to pipe
exiting wall. PVC pressure
pipe cement must be used.
40mm PVC pipe must be
fitted (not shown) to
drain to waste
Components supplied
loose.
15mm PVC Elbow or 15mm STRAIGHT
CONNECTOR
15mm PVC class 18 tube
15mm PVC to 15mm threaded union
15mm to 20mm union
20mm to 40mm union
40mm non-return valve
Push terminal into
approximate position and
affix onto wall
Cut inlet air tube. Flue must extend a minimum of 50mm
past the exit face of wall.) It is recommended that the
intake tube is cut slightly longer and pushed back into
wall upon fixing of wall terminal. Allow flue movement
between terminal and last intake flue hanging clip.
Attach intake flue using the self tapping screw.
Ensure condensate drain retaining clamp is tight.
