Installation

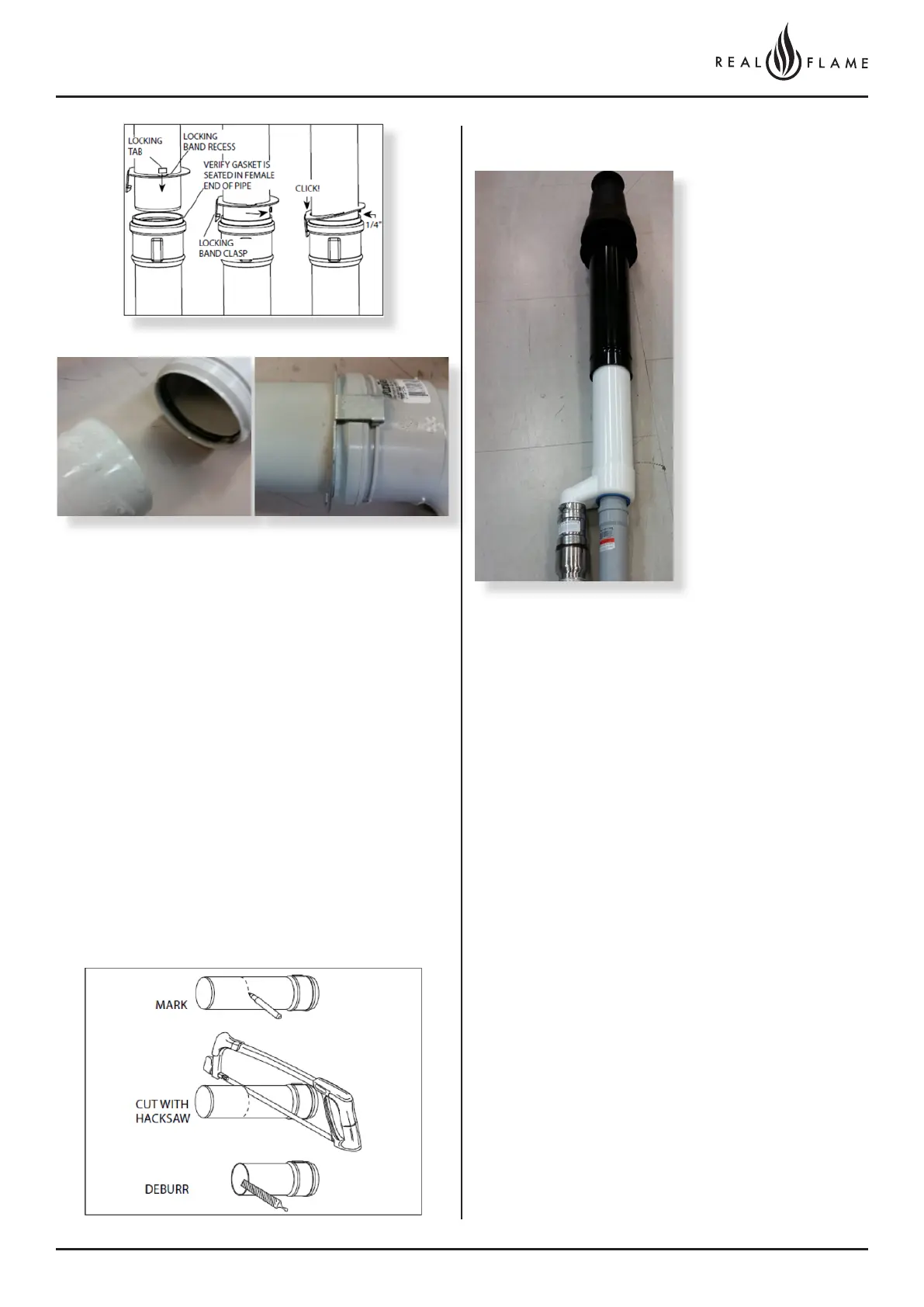

1. Pipe lengths may be cut to length. Use an alternative
clamp (PPS-PAC/PPS-LBC) for the connection if a locking
tab is removed.
• Cut square (not an angle) to the end of the pipe.
• Remove burrs before assembly.
2. Check with appliance manufacturer for any restrictions
or limits on vent length, number of elbows, etc.
3. The slope of the vent pipe must be at least
3° (50mm per meter) back to the appliance.
4. Every horizontal section must be supported.
WIRING – FLUE TEMPERATURE LIMITING
DEVICE
The flue temperature limiting device is inbuilt into the
extension wiring and the flue adapter.
The connection directly connects to the loom from the
appliance. The other end directly connects to the fan
module.
Connections are not interchangeable.
The temperature limiting is preset and does not require
adjustment.
Ensure termination is supported.
Join Poly flue to rooftop termination
Ensure clip is fixed to prevent flue pipes
from separating.
Support flues.
Poly Pro to Roof termination
