Coals only
Logs and Coal
• Lay coal media in a random arrangement along the
entire length of the burner.
• Avoid smothering the burner channel. Apply coals
either side of the flame channel.
• No more than 4 coals should cover the main flame
channel.
• Ensure media is not heaped in areas, spread evenly
along.
• Do not add extra media, or combine media types.
• Only the approved supplied media is to be used.
• Do not cover pilot area.
• Do not overfill with media above the pilot cover level.
• Ensure the pilot flame is not impinged by media and
can cross light the main burner.
• Do not use any other media than as supplied and
recommended by the manufacturer.
• Use of other media may result in explosive media
which may cause injury or damage.
• Lay coal media in a random arrangement along the
entire length of the burner.
• Avoid smothering the burner channel. Apply coals
either side of the flame channel.
• Ensure media is not heaped in areas, spread evenly
along.
• Randomly place logs between and on top of the coal
media in an evenly spread out pattern.
• Do not add extra media, or combine media types.
• Only the approved supplied media is to be used.
• Do not cover pilot area.
• Do not overfill with media above the pilot cover level.
• Ensure the pilot flame is not impinged by media and
can cross light the main burner.
• Do not use any other media than as supplied and
recommended by the manufacturer.
• Use of other media may result in explosive media
which may cause injury or damage.

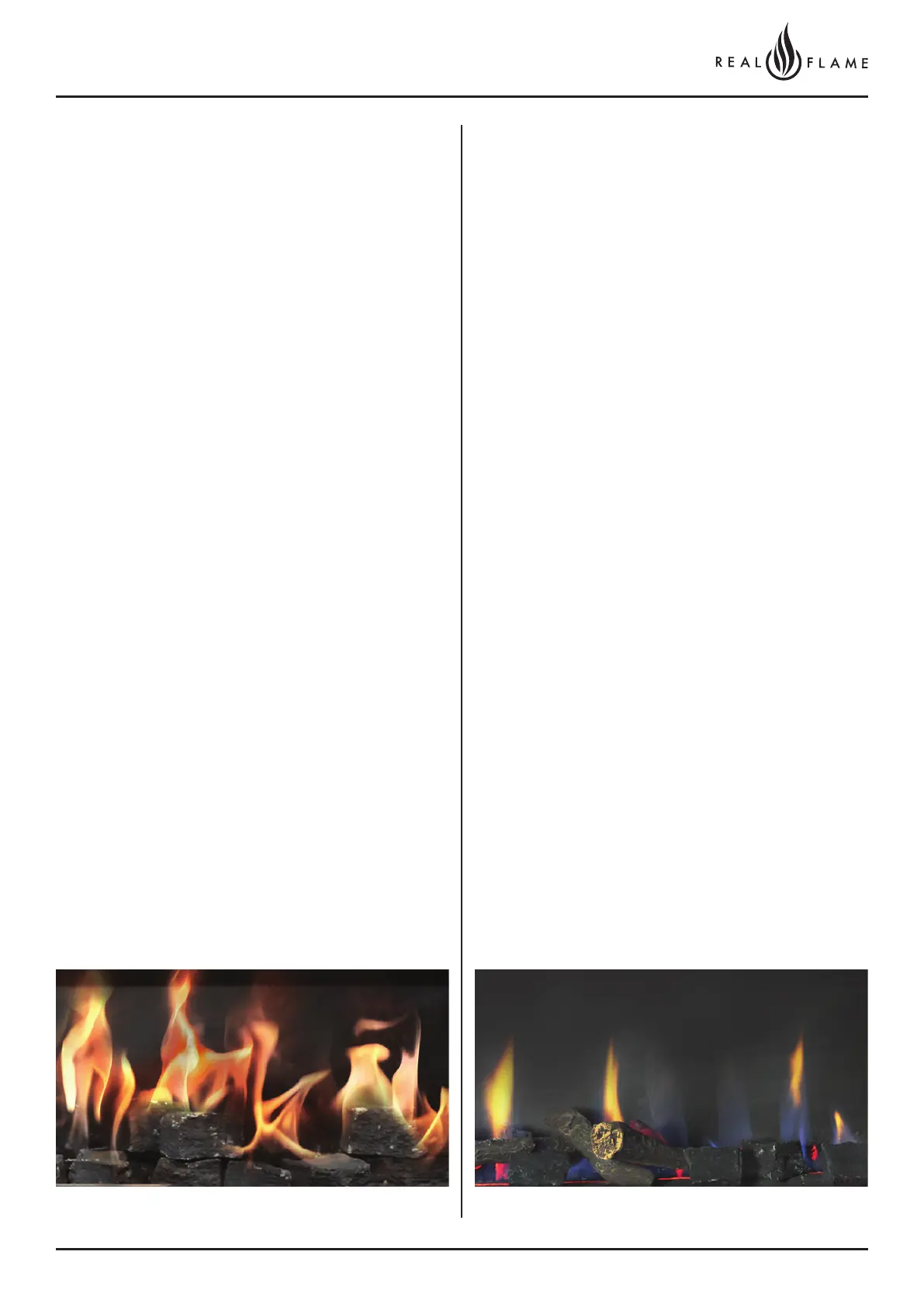

TYPICAL SETUP
TYPICAL SETUP
