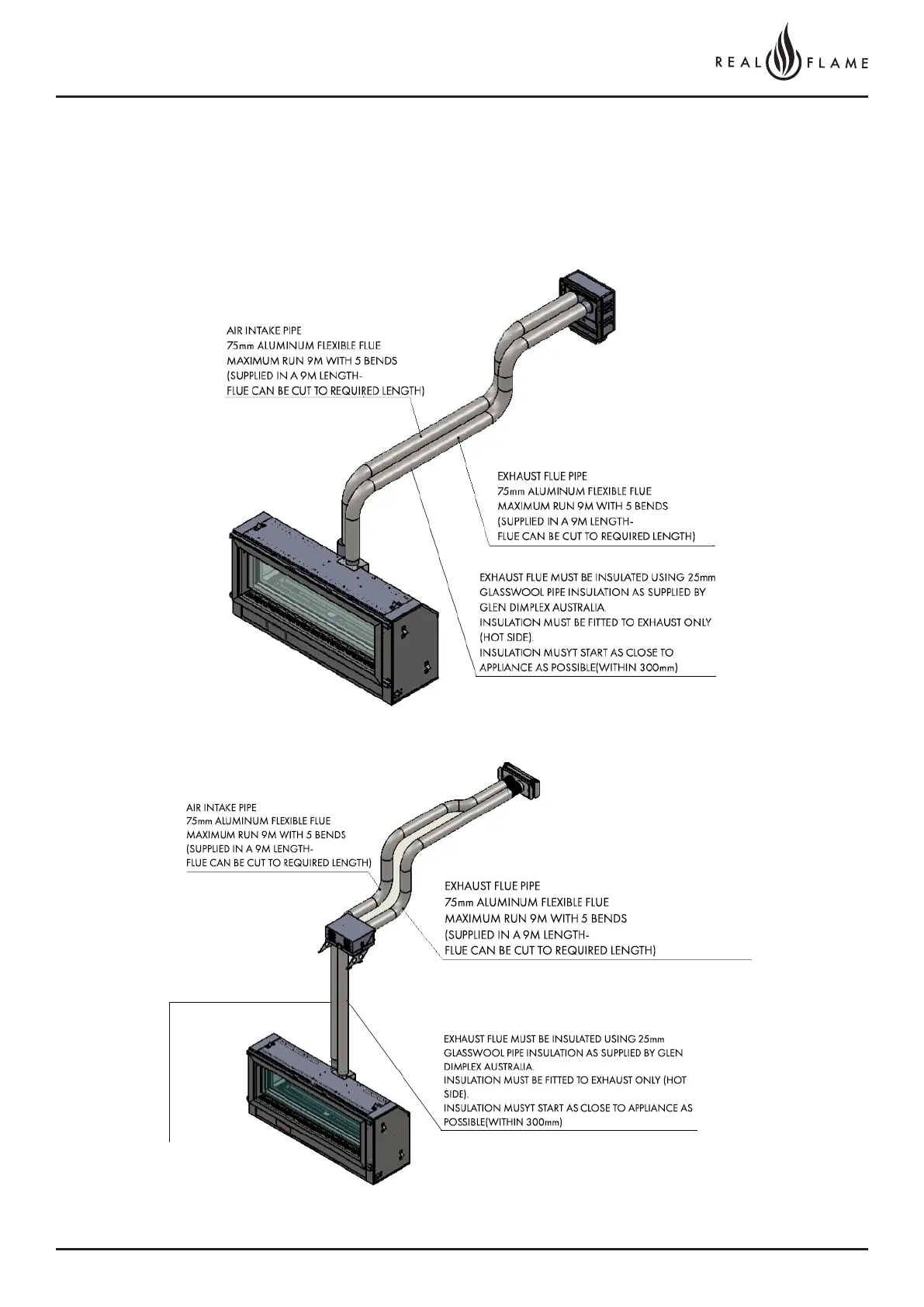

Flue runs 5m to 9m length (excluding 0-5m rooftop termination)
External wall mount outlet with integrated flue fan (0-5m Flue run model)
External wall mount terminal (Flue fan installed above appliance internally) (0-5m Flue run model)
First 3m of exhaust flue must be insulated
with 25mm thick glasswool foil faced
insulator (supplied by Glen Dimplex)
(where flue length exceeds 3m of length)
