FLUE TERMINATION LOCATIONS
This section is used to determine where your Balanced
Flue termination will be located.
Flue terminations shall not be recessed in walls or sidings.
EXTREMELY IMPORTANT
• In heavy snow areas take extra care to prevent
blocking flue termination with snow removal
equipment.
• Flue gases exiting flue terminals are very hot and must
not be restricted to assure fireplace combustion is not
affected.
• Do not place, build any obstruction, plant any
bushes or for any reason attempt to conceal the flue
termination. To do so will affect the operation of the
fireplace and may be hazardous.
• This unit must always vent directly to outdoors.

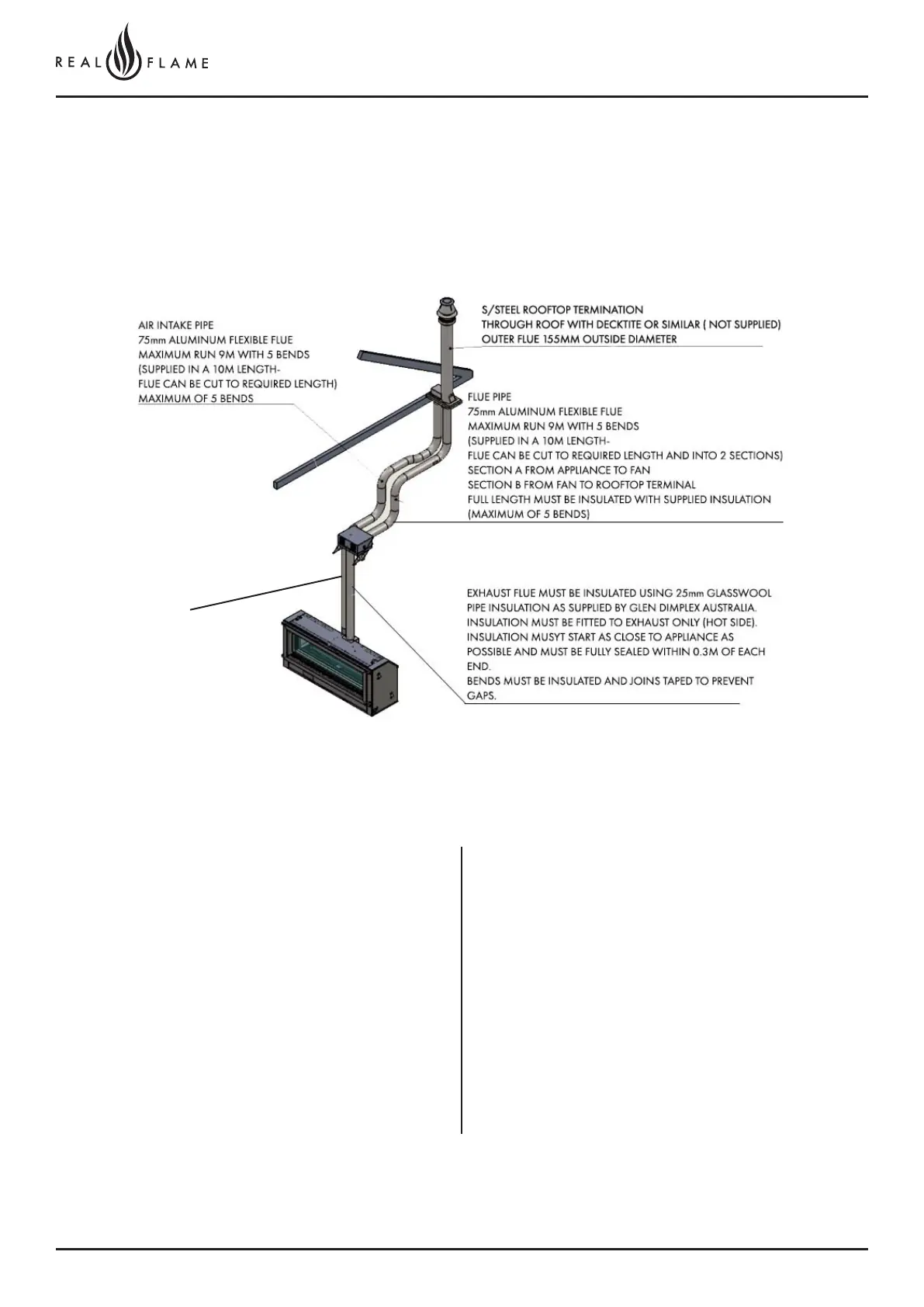

Flue runs 5m to 9m length rooftop termination only
Vertical roof termination (S/Steel rooftop termination)
First 3m of exhaust flue must be
insulated with 25mm thick glasswool
foil faced insulator (supplied by Glen
Dimplex)
(where flue length exceeds 3m of
length)
