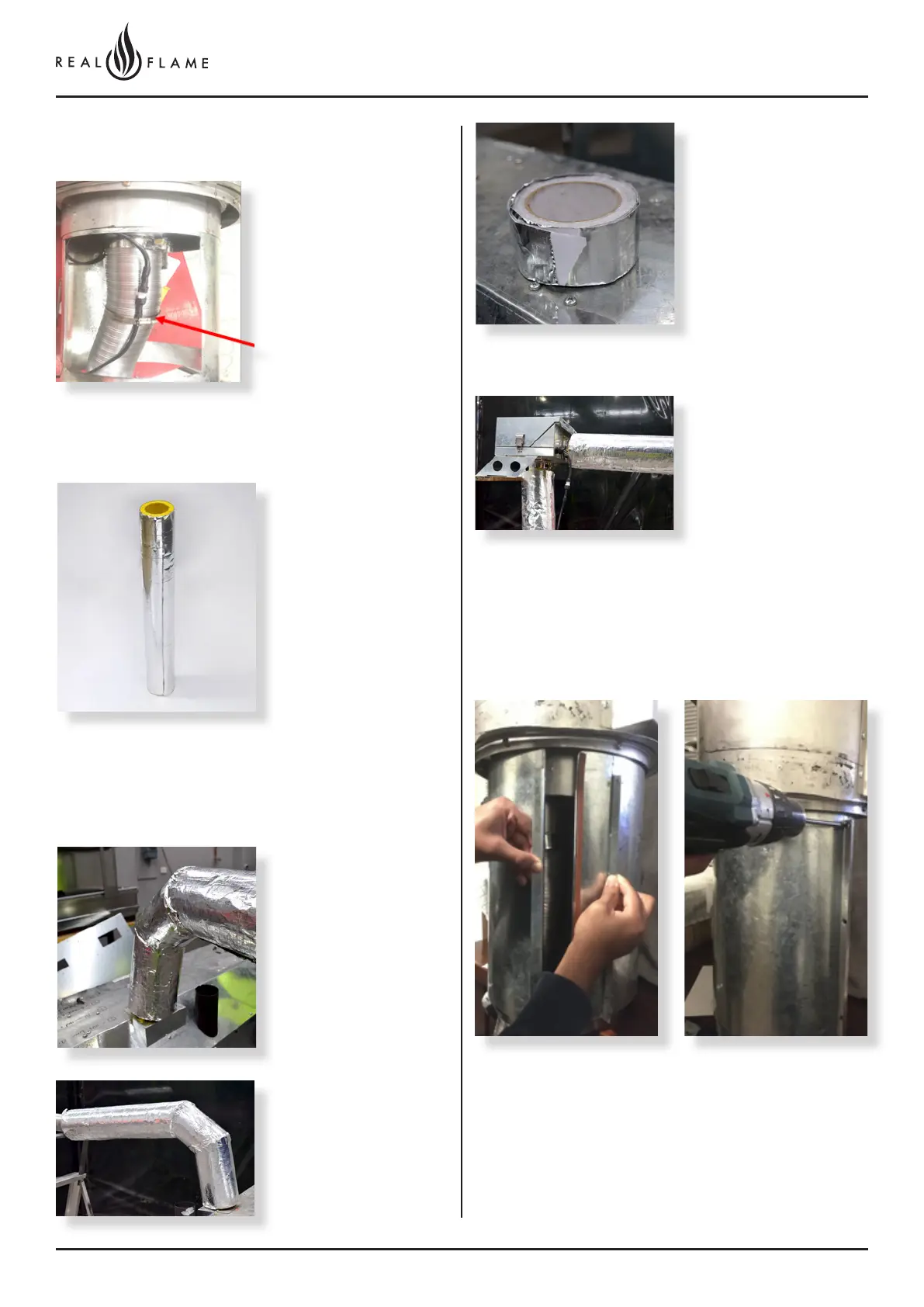

Connect the fan power
cable from the appliance
to the termination.
Ensure the cable is
clamped only to the intake
pipe to secure the cable
from hanging loose &
touching the hot flue gases
pipe.
Use the clamp provided.
The clamp can be opened
like a collar and fitted
around on the flue.
Flex collar and fit around the access panel. Socket the
collar all the way up close to the air intake slots Ensure
there is a rubber seal top and bottom of the collar.
Use only the screws provided to tightly fit the collar to seal
the access panel.
Insulation must start as close to the gas space heater as
possible
(Only exhaust flue is to be insulated)
Insulation to be fully closed
and sealed along length.
Fit flue exhaust insulation
Insulated with 25mm foil
faces glasswool pipe
insulation within 0.3m
of each end of flue, as
supplied by Glen Dimplex
Australia.
Bends were practical
should be insulated, by
cutting the insulation into
segments and taping
together.
Joins can be taped
together using aluminum
foil self adhesive tape.
Insulation must be fitted
prior and after the inline
powerflue fan.
Failure to fit insulation on the exhaust flue may result in
condensation failures with the appliance.
